Raymor Toilets

Fitting out for older family members or just want a taller pan? The Raymor Winton Back to Wall Comfort Height Rimless Toilet Suite with a standard seat has a 504mm height pan that is easier to sit on and stand up from. Vitreous china pan and cistern, 830mm high, 370mm wide and 620mm deep. The universal trap takes a P trap at 185mm, or an S trap from 75mm to 170mm as standard and 150mm to 230mm with the optional set out. Inlet is back or bottom, left or right. The R&T 4.5 and 3 litre dual flush gives it WELS 4 star at 3.5 litres a flush. In the box: cistern, pan with standard soft close quick release seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Comfort height pan at 504mm, so getting up and down is easier on knees and hips
• Back to wall suite, so there is no gap behind the pan collecting dust
• Rimless pan with an easy clean rim for a quick wipe and less scrubbing
• Universal trap suits P trap at 185mm and S trap from 75mm to 230mm with the optional set out, which covers most existing plumbing
• Back or bottom inlet on either side, so your plumber connects to the supply already there
• R&T side entry inlet valve and 4.5 and 3 litre dual flush outlet valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure wall to outlet centre and check your inlet position before ordering. Ask your plumber if you're not sure.

Match it with a Raymor Winton basin mixer and matching Winton accessories.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: 4.5/3L Dual flush
Trap type: Universal
Set out: P Trap set out 185mm ; S Trap set out 75mm-170mm as standard; Optional S Trap set out 150mm - 230mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 830 mm
Overall width: 370 mm
Overall depth: 620 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L07688
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Pan with Seat
• 1 x Cistern
• 1 x Variance Bend
• Installation Instructions

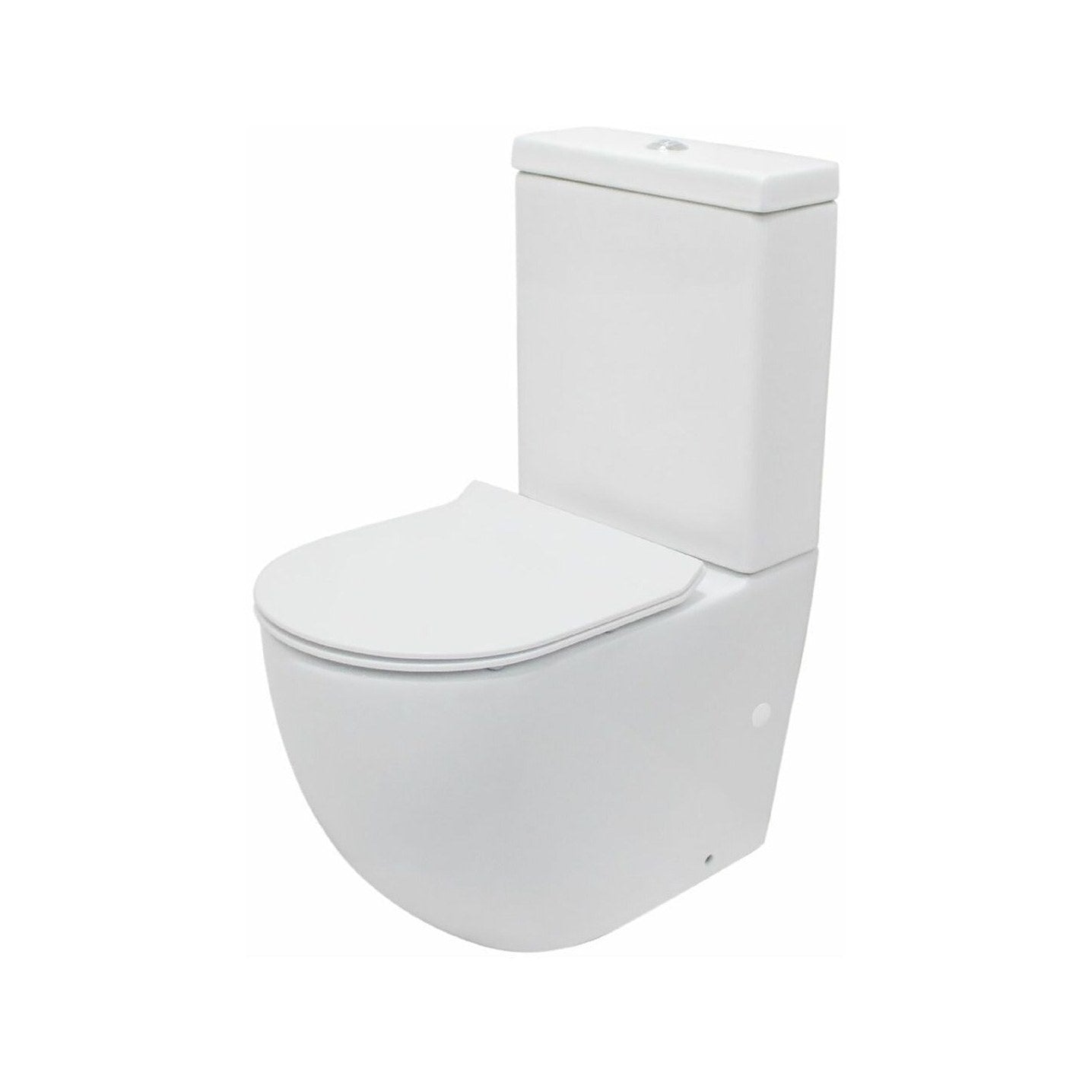

Ready to swap the old suite for something easier to keep clean? The Raymor Winton Back to Wall Rimless Toilet Suite with a slim seat has a rimless pan with an easy clean rim and no gap behind it. Vitreous china pan and cistern, 830mm high, 365mm wide and 615mm deep. The universal trap suits a P trap at 185mm, or an S trap from 50mm to 160mm as standard and 150mm to 245mm with the optional set out. Inlet is back or bottom, left or right, through an R&T side entry valve. The R&T 4.5 and 3 litre dual flush gives it WELS 4 star at 3.5 litres a flush. Made in China. In the box: cistern, pan with slim soft close quick release seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Rimless pan with an easy clean rim, so there are fewer places for grime to build up
• Back to wall suite, which means no gap behind the pan to clean around
• Universal trap covers P trap at 185mm and S trap from 50mm to 245mm with the optional set out, so it suits most existing outlets
• Back or bottom inlet, left or right, so your plumber connects to what is already in the wall or floor
• R&T side entry inlet valve and 4.5 and 3 litre dual flush outlet valve, WELS 4 star at 3.5 litres average flush
• Slim soft close seat with quick release metal hinges, so it sits low on the pan and lifts off for cleaning
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check whether your inlet is in the wall or the floor. Ask your plumber if you're unsure.

Pair it with a Raymor Winton basin mixer and Winton accessories to finish the room.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: 4.5/3L Dual flush
Trap type: Universal
Set out: S Trap(mm): 50-160 Standard; P Trap(mm): 185 Floor to Centre of Outlet; Optional S Trap(mm): 150-245
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 830 mm
Overall width: 365 mm
Overall depth: 615 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L07687
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Pan with seat
• 1 x Cistern
• 1 x Variance Bend
• Installation Instructions

Got a wall or floor outlet and want one suite that suits either? The Raymor Edge II Back to Wall Rimless Toilet Suite with a slim seat has a universal trap, so it connects as a P trap at 185mm or an S trap from 65mm to 175mm as standard. Vitreous china pan and cistern, 825mm high, 366mm wide and 692mm deep, with a slim cistern lid. The WDI universal inlet valve lets your plumber connect from the back or the bottom. The WDI 4.5 and 3 litre dual flush outlet valve gives it WELS 4 star at 3.5 litres a flush. Made in China. In the box: pan, cistern with slim lid, slim soft close seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Universal trap suits P trap at 185mm and S trap from 65mm to 175mm as standard, so it fits most existing outlets
• Variance bend in the box, which saves a trip to the plumbing shop on install day
• Back to wall suite, so there is no gap behind the pan to clean
• Rimless pan for fewer places dirt can collect and a faster clean
• WDI universal inlet valve, so your plumber connects to the existing supply in the wall or floor
• WDI 4.5 and 3 litre dual flush outlet valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet before ordering and check where your water inlet is. Your plumber can confirm both.

Pair it with a Raymor Edge II basin mixer and Edge II accessories to match.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 825 mm
Overall width: 366 mm
Overall depth: 692 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08237
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Back to wall rimless pan
• 1 x Cistern with slim lid
• 1 x Slim soft close seat
• 1 x Variance bend
• Installation instructions

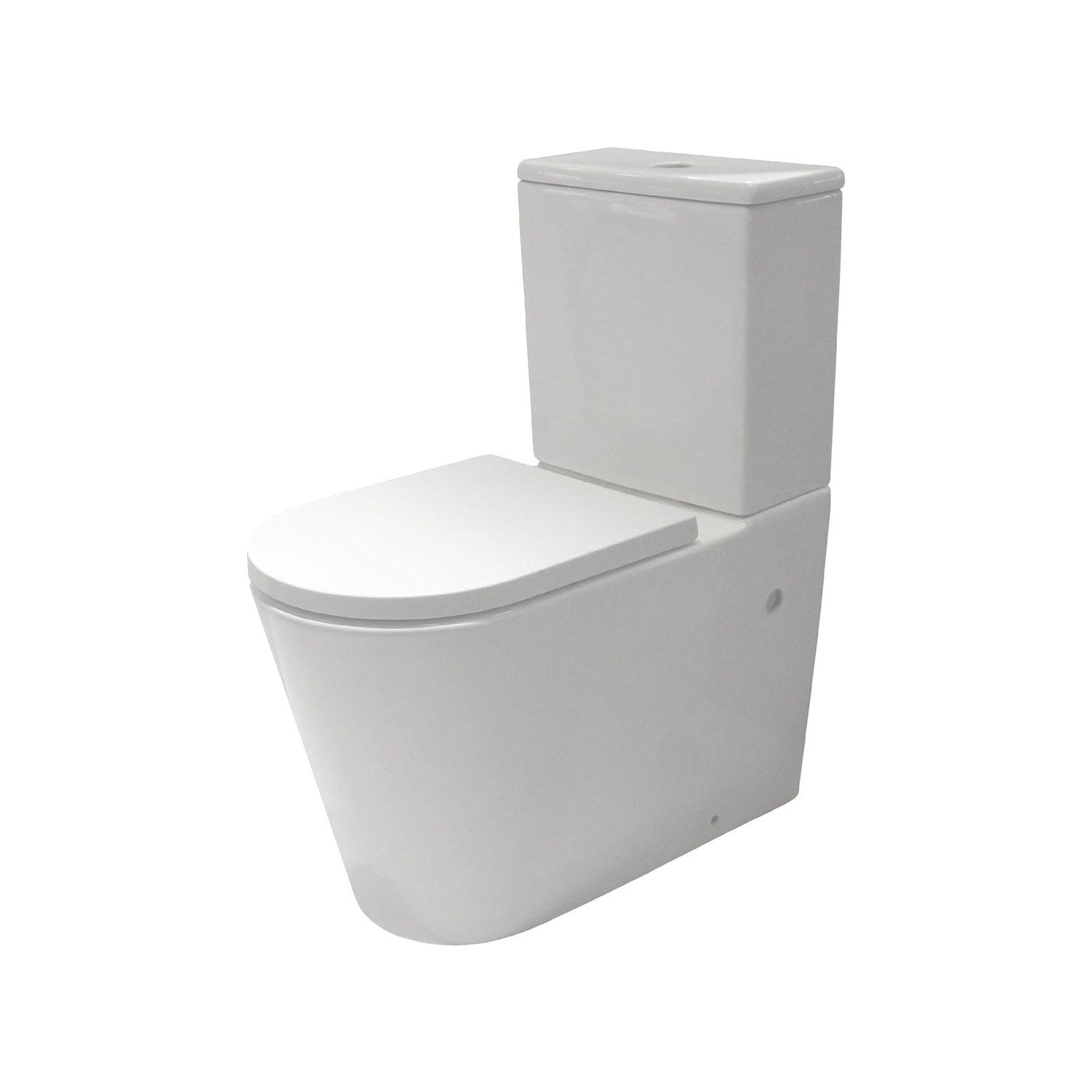

Doing up a second bathroom or a rental without overthinking it? The Raymor Edge II Back to Wall Rimless Toilet Suite with a standard seat is a no fuss swap for most existing suites. Vitreous china pan and cistern, 795mm high, 360mm wide and 700mm deep, with a slim cistern lid. The universal trap connects as a P trap at 185mm or an S trap from 65mm to 175mm as standard. The WDI universal inlet valve lets your plumber connect from the back or the bottom. A WDI 4.5 and 3 litre dual flush outlet valve gives it WELS 4 star at 3.5 litres a flush. Made in China. In the box: pan, cistern with slim lid, standard soft close seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Universal trap covers P trap at 185mm and S trap from 65mm to 175mm as standard, which suits most existing plumbing
• Variance bend included, so your plumber has what's needed for the S trap connection
• Back to wall suite, which leaves nothing to mop around behind the pan
• Rimless pan, so there is no rim for grime to hide under
• WDI universal inlet valve for back or bottom entry, so it connects to the supply already there
• White soft close standard seat with quick release metal hinges, so it comes off for a proper clean
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure wall to outlet centre and check your inlet position before you order. Ask your plumber if you're not sure.

Match it with a Raymor Edge II basin mixer and Edge II shower for the rest of the room.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S Trap Set Out 65mm - 175mm as Standard, P-Trap floor to Centre of Outlet 185mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 795 mm
Overall width: 360 mm
Overall depth: 700 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08237
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Back to wall rimless pan
• 1 x Cistern with slim lid
• 1 x Standard soft close seat
• 1 x Variance bend
• Installation instructions

Finding the old toilet a bit low to get up from? The Raymor Winton Back to Wall Comfort Height Rimless Toilet Suite with a slim seat has a taller 455mm pan that is easier to sit on and stand up from. It's a back to wall suite with a vitreous china pan and cistern, 880mm high, 375mm wide and 620mm deep. The universal trap takes a P trap at 185mm or an S trap from 75mm to 170mm as standard, and 150mm to 230mm with the optional set out. Inlet is back or bottom, left or right. Rimless pan and 4.5 and 3 litre dual flush, WELS 4 star at 3.5 litres a flush. In the box: cistern, pan with soft close quick release seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Comfort height pan at 455mm, so it's easier on knees and hips getting up and down
• Back to wall suite, which means no gap behind the pan collecting dust
• Rimless pan with an easy clean rim for a quick wipe and less scrubbing
• Universal trap covers P trap at 185mm and S trap from 75mm to 230mm with the optional set out, so it suits most existing plumbing
• Back or bottom inlet on either side, so your plumber connects to whatever is already there
• R&T side entry inlet valve and 4.5 and 3 litre dual flush outlet valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure wall to outlet centre and check where your water inlet is before ordering. Ask your plumber if you're unsure.

Match it with a Raymor Winton basin mixer and Winton accessories for the rest of the room.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: 4.5/3L Dual flush
Trap type: Universal
Set out: P Trap set out 185mm S Trap set out 75mm-170mm as standard Optional S Trap set out 150mm - 230mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 880 mm
Overall width: 375 mm
Overall depth: 620 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L07688
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Pan with Seat
• 1 x Cistern
• 1 x Variance Bend
• Installation Instructions

Want a toilet that's easier to get up from? The Raymor Edge II Back to Wall Comfort Height Rimless Toilet Suite with a standard seat has a taller pan that is easier to sit on and stand up from. Vitreous china pan and cistern, 840mm high, 370mm wide and 700mm deep, with a slim cistern lid. The universal trap suits a P trap at 185mm, or an S trap from 65mm to 175mm as standard and 95mm to 220mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, standard soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Comfort height pan, so it's easier on knees and hips getting up and down
• Universal trap suits P trap at 185mm and S trap from 65mm to 220mm with the optional set out, which covers most existing plumbing
• Back to wall suite, so there is nothing to mop around behind the pan
• Rimless pan for fewer places dirt can settle and a quicker wipe down
• WDI universal inlet valve for bottom right or rear left entry, so your plumber uses the existing supply
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure wall to outlet centre and check whether your inlet is in the wall or the floor before ordering. Ask your plumber if you're not sure.

Match it with a Raymor Edge II basin mixer and Edge II accessories from the same range.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 65-175mm as standard. P-Trap Set Out: 185mm. Optional S-Trap Set Out: 95-220mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 840 mm
Overall width: 370 mm
Overall depth: 700 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08138
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals. and labour

What's In The Box

• 1 x Edge back to wall comfort height rimless pan
• 1 x Edge back to wall comfort height cistern with slim lid
• 1 x Standard soft close seat
• Installation instructions

After a taller pan with a lower profile seat? The Raymor Edge II Back to Wall Comfort Height Rimless Toilet Suite with a slim seat gives you both. The comfort height pan is easier to sit on and stand up from. Vitreous china pan and cistern, 840mm high, 370mm wide and 700mm deep, with a slim cistern lid. The universal trap takes a P trap at 185mm, or an S trap from 65mm to 175mm as standard and 95mm to 220mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, slim soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Comfort height pan that is taller than standard, so sitting and standing takes less effort
• Slim soft close seat with quick release metal hinges, which keeps the profile low and lifts off for cleaning
• Universal trap covers P trap at 185mm and S trap from 65mm to 220mm with the optional set out, so it fits most existing outlets
• Back to wall suite, which means no gap behind the pan collecting dust
• Rimless pan, so grime has nowhere to hide under a rim
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to what's already there
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush

Check your set out from the finished wall to the outlet centre and your inlet position before you order. Ask your plumber if you're unsure.

Finish the room with a Raymor Edge II basin mixer and Edge II shower from the same range.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 65-175mm as standard. P-Trap Set Out: 185mm. Optional S-Trap Set Out: 95-220mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 840 mm
Overall width: 370 mm
Overall depth: 700 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08138
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Edge back to wall comfort height rimless pan
• 1 x Edge back to wall comfort height cistern with slim lid
• 1 x Slim soft close seat
• Installation instructions

Swapping out a tired suite and want it done in one visit from the plumber? The Raymor Alpha Back to Wall Rimless Toilet Suite with a standard seat is built to fit most existing set ups. Vitreous china pan and cistern, 790mm high, 365mm wide and 655mm deep, with a slim cistern lid. The universal trap takes a P trap at 185mm from the floor to the outlet centre, or an S trap from 75mm to 190mm as standard and 145mm to 225mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, standard soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Universal trap suits P trap at 185mm and S trap from 75mm to 225mm with the optional set out, so it fits most existing outlets
• Back to wall suite, which means no gap behind the pan to clean
• Rimless pan, so grime has nowhere to hide under a rim
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to the existing supply
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• White soft close standard seat with quick release metal hinges, so it comes off for a proper clean
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check your inlet position before ordering. Ask your plumber if you're not sure.

Match it with a Raymor Alpha basin mixer and Alpha shower from the same range.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 75-190mm as standard, P-Trap Set Out: 185mm, Optional S-Trap Set Out: 145-225mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 790 mm
Overall width: 365 mm
Overall depth: 655 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08137
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals. and labour

What's In The Box

• 1 x Alpha back to wall rimless pan
• 1 x Alpha back to wall cistern with slim lid
• 1 x Standard soft close seat
• Installation instructions

Prefer a slimmer seat on a suite that fits the plumbing you already have? The Raymor Alpha Back to Wall Rimless Toilet Suite with a slim seat is the lower profile version of the Alpha. Vitreous china pan and cistern, 790mm high, 365mm wide and 655mm deep, with a slim cistern lid. The universal trap takes a P trap at 185mm, or an S trap from 75mm to 190mm as standard and 145mm to 225mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. A 48mm round chrome button drives the 4.5 and 3 litre dual flush, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, slim soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Slim soft close seat with quick release metal hinges, so it sits lower on the pan and lifts off for cleaning
• Universal trap covers P trap at 185mm and S trap from 75mm to 225mm with the optional set out, so it suits most existing outlets
• Back to wall suite, which leaves no gap behind the pan to clean around
• Rimless pan, so there is no rim for grime to build up under
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to the supply that's already there
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check where your inlet sits before you order. Your plumber can confirm both in a minute.

Pair it with a Raymor Alpha basin mixer and Alpha accessories to match.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 75-190mm as standard, P-Trap Set Out: 185mm, Optional S-Trap Set Out: 145-225mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 790 mm
Overall width: 365 mm
Overall depth: 655 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08137
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Alpha back to wall rimless pan
• 1 x Alpha back to wall cistern with slim lid
• 1 x Slim soft close seat
• Installation instructions

Not sure whether your outlet is P trap or S trap? The Raymor Atlanta Back to Wall Rimless Toilet Suite with a standard seat has a universal trap, so it covers both. It's a back to wall suite with a vitreous china pan and cistern, 810mm high, 360mm wide and 660mm deep, with a slim cistern lid. S trap set out is 65mm to 175mm as standard, or 75mm to 200mm with the optional set out, and P trap is 185mm from the floor to the outlet centre. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, standard soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Universal trap suits P trap at 185mm and S trap from 65mm to 200mm with the optional set out, so it fits most existing outlets
• Back to wall suite, which means nothing to clean behind the pan
• Rimless pan, so there is no rim for grime to collect under
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to the existing supply
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• White soft close standard seat with quick release metal hinges, so it comes off for cleaning
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check whether your inlet is in the wall or the floor. Ask your plumber if you're unsure.

Finish the room with a Raymor Atlanta basin mixer and Atlanta shower from the same range.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 65-175mm as standard; P-Trap Set Out: 185mm; Optional S-Trap Set Out: 75-200mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 810 mm
Overall width: 360 mm
Overall depth: 660 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08136
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Atlanta back to wall rimless pan
• 1 x Atlanta back to wall cistern with slim lid
• 1 x Standard soft close seat
• Installation instructions

Want the Atlanta suite with a lower profile seat? The Raymor Atlanta Back to Wall Rimless Toilet Suite with a slim seat is that version. It's a back to wall suite with a vitreous china pan and cistern, 835mm high, 370mm wide and 665mm deep, with a slim cistern lid. The universal trap handles a P trap at 185mm from the floor to the outlet centre, or an S trap from 65mm to 175mm as standard and 75mm to 200mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, slim soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Slim soft close seat with quick release metal hinges, so it sits lower on the pan and lifts off for cleaning
• Universal trap covers P trap at 185mm and S trap from 65mm to 200mm with the optional set out, so it suits most existing plumbing
• Back to wall suite, which leaves no gap behind the pan
• Rimless pan for fewer places grime can hide
• WDI universal inlet valve for bottom right or rear left entry, so your plumber uses what's already there
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Check your set out from the finished wall to the outlet centre and where your water inlet sits before you order. Your plumber can confirm both.

Pair it with a Raymor Atlanta basin mixer and Atlanta accessories to match.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 65-175mm as standard; P-Trap Set Out: 185mm; Optional S-Trap Set Out: 75-200mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 835 mm
Overall width: 370 mm
Overall depth: 665 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08136
Warranty: 20 years Vitreous China. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Atlanta back to wall rimless pan
• 1 x Atlanta back to wall cistern with slim lid
• 1 x Slim soft close seat
• Installation instructions

Replacing a close coupled toilet with a standard S trap outlet? The Raymor Classic Close Coupled Rimless Toilet Suite is a like for like swap for most older suites. Pan and cistern are both vitreous china, with the cistern sitting on the pan under a slim lid. It stands 780mm high, 350mm wide and 620mm deep. The S trap set out is 153mm as standard, and the water inlet is at the bottom with left and right hand options. A 48mm round chrome dual flush button drives the WDI 4.5 and 3 litre dual flush valve, giving it WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, standard soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Close coupled suite with the cistern on the pan, which is the most common layout in existing homes
• S trap set out of 153mm as standard, so it drops onto a typical floor outlet
• Bottom water inlet with left or right hand options, so your plumber uses the stop tap that's already there
• Rimless pan for fewer places dirt can settle and a faster clean
• 48mm round chrome dual flush button and WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• White soft close seat with quick release metal hinges, so it lifts off for a proper wipe down
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

This one is S trap only, so measure from the finished wall to the centre of your floor outlet and check it's close to 153mm. Ask your plumber if you're not sure.

Pair it with a Raymor basin mixer and matching accessories to tidy up the rest of the bathroom.

Specifications

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: S-Trap
Set out: S Trap Set Out 153mm as standard
Water inlet: Bottom
Seat type: Soft Close Double Flap
Overall height: 780 mm
Overall width: 350 mm
Overall depth: 620 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08141
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

What's In The Box

• 1 x Classic close coupled S trap rimless pan
• 1 x Classic close coupled cistern with slim lid
• 1 x Standard soft close seat
• Installation instructions
