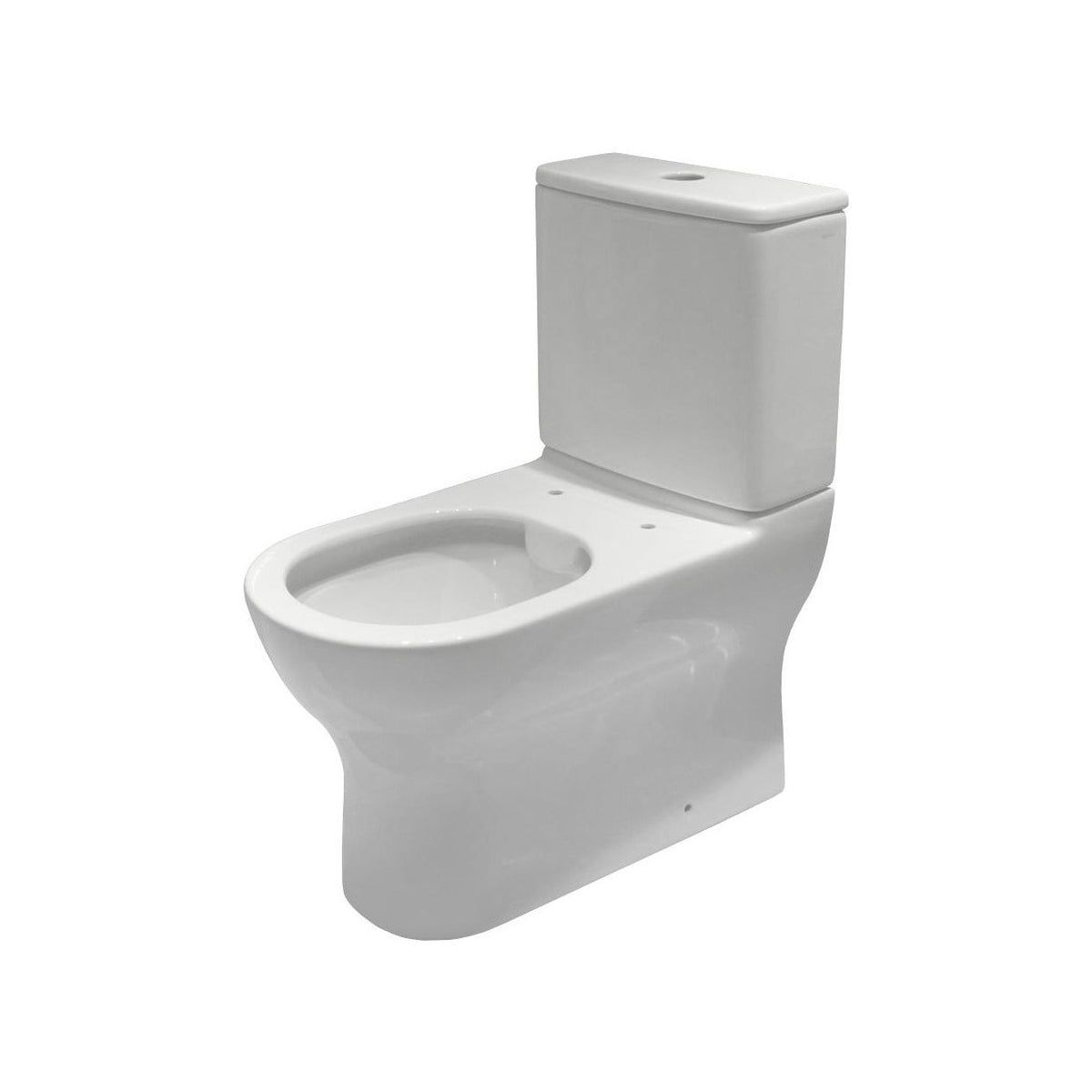

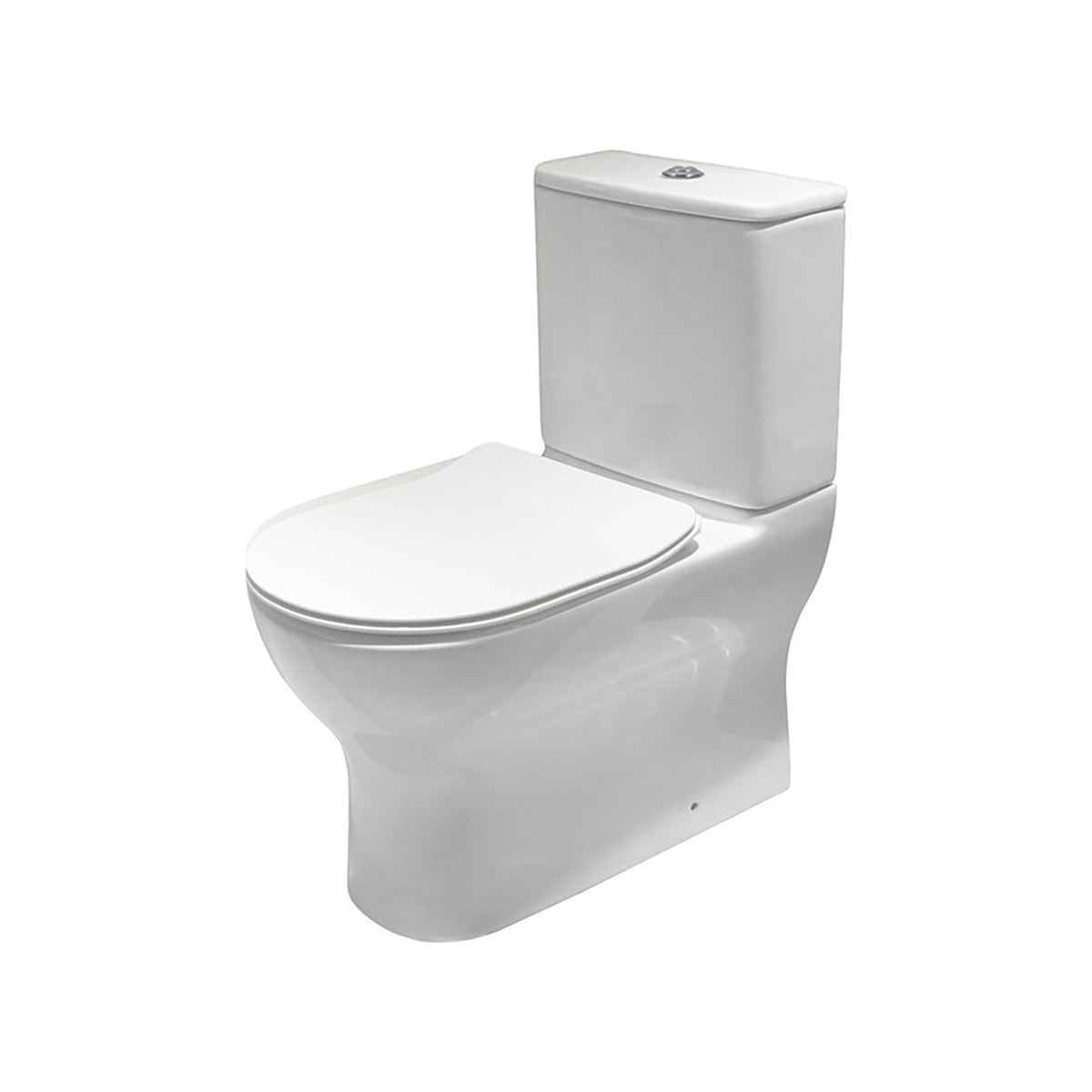

Raymor Alpha Back to Wall Rimless Toilet Suite Slim Seat White

Prefer a slimmer seat on a suite that fits the plumbing you already have? The Raymor Alpha Back to Wall Rimless Toilet Suite with a slim seat is the lower profile version of the Alpha. Vitreous china pan and cistern, 790mm high, 365mm wide and 655mm deep, with a slim cistern lid. The universal trap takes a P trap at 185mm, or an S trap from 75mm to 190mm as standard and 145mm to 225mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. A 48mm round chrome button drives the 4.5 and 3 litre dual flush, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, slim soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Slim soft close seat with quick release metal hinges, so it sits lower on the pan and lifts off for cleaning
• Universal trap covers P trap at 185mm and S trap from 75mm to 225mm with the optional set out, so it suits most existing outlets
• Back to wall suite, which leaves no gap behind the pan to clean around
• Rimless pan, so there is no rim for grime to build up under
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to the supply that's already there
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check where your inlet sits before you order. Your plumber can confirm both in a minute.

Pair it with a Raymor Alpha basin mixer and Alpha accessories to match.

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal

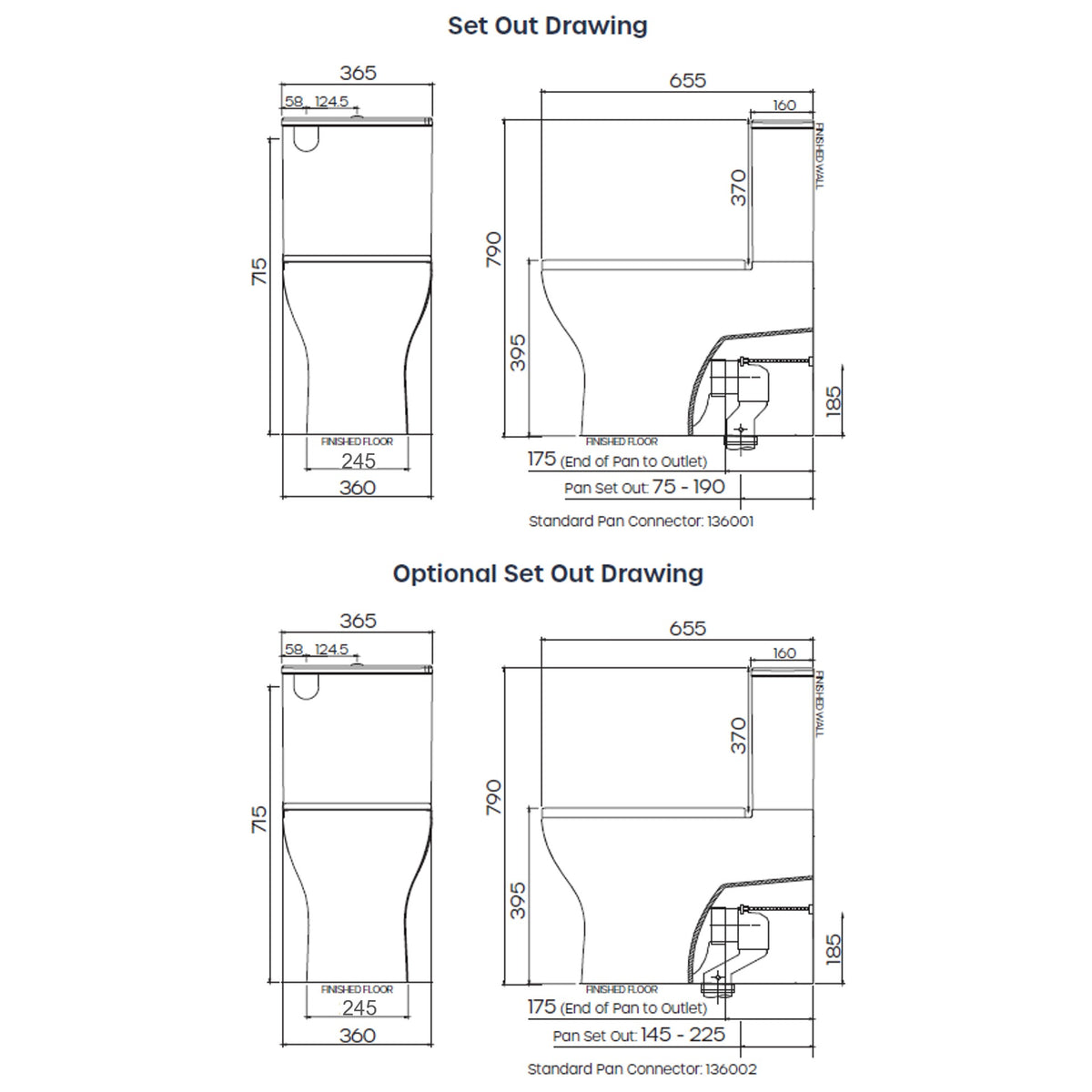

Set out: S-Trap Set Out: 75-190mm as standard, P-Trap Set Out: 185mm, Optional S-Trap Set Out: 145-225mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 790 mm
Overall width: 365 mm
Overall depth: 655 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08137
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

• 1 x Alpha back to wall rimless pan
• 1 x Alpha back to wall cistern with slim lid
• 1 x Slim soft close seat
• Installation instructions
