Build Your In-Wall Toilet: Raymor Edge II Wall Faced Rimless Pan with Slim Seat White with Cistern Options

Planning an in-wall toilet and want the pan, cistern and flush button sorted in one order? This build is based on Raymor's Edge II rimless wall faced pan, fitted with a slim soft close seat, and lets you add an R&T in-wall cistern or a Geberit Sigma 8 cistern, plus a flush button to match, right here on the page. The pan sits hard against the finished wall, so there's no gap behind it to clean, and the rimless bowl leaves nowhere for grime to settle. The slim seat keeps the profile lean and lifts off on quick release hinges when it's time for a proper clean. Choose your cistern and button, and the lot goes into your cart together.

• Pick your cistern: the R&T in-wall cistern or the Geberit Sigma 8, or choose no cistern if one is already in the wall
• Match the flush button to the cistern: Geberit Sigma compatible plates for the Geberit, R&T compatible Nero plates for the R&T
• Wall faced pan closes up to the wall, so there's no awkward space behind it to mop around
• Rimless bowl with no hidden lip for build-up, which makes the weekly clean quicker
• Slimline soft close seat that unclips from its metal hinges and is held down by toggle fixings, so removal takes seconds
• Outlet options: a 185mm set out as a P trap, or 90mm to 105mm as an S trap using the supplied bend
• Warranty cover: china 20 years, seat and fittings 5 years, seals and labour 1 year

In-wall cisterns go in before the wall is sheeted, so check your wall cavity and outlet set out with your plumber before you order. Need a new vanity to go with it? Browse our wall hung vanities.

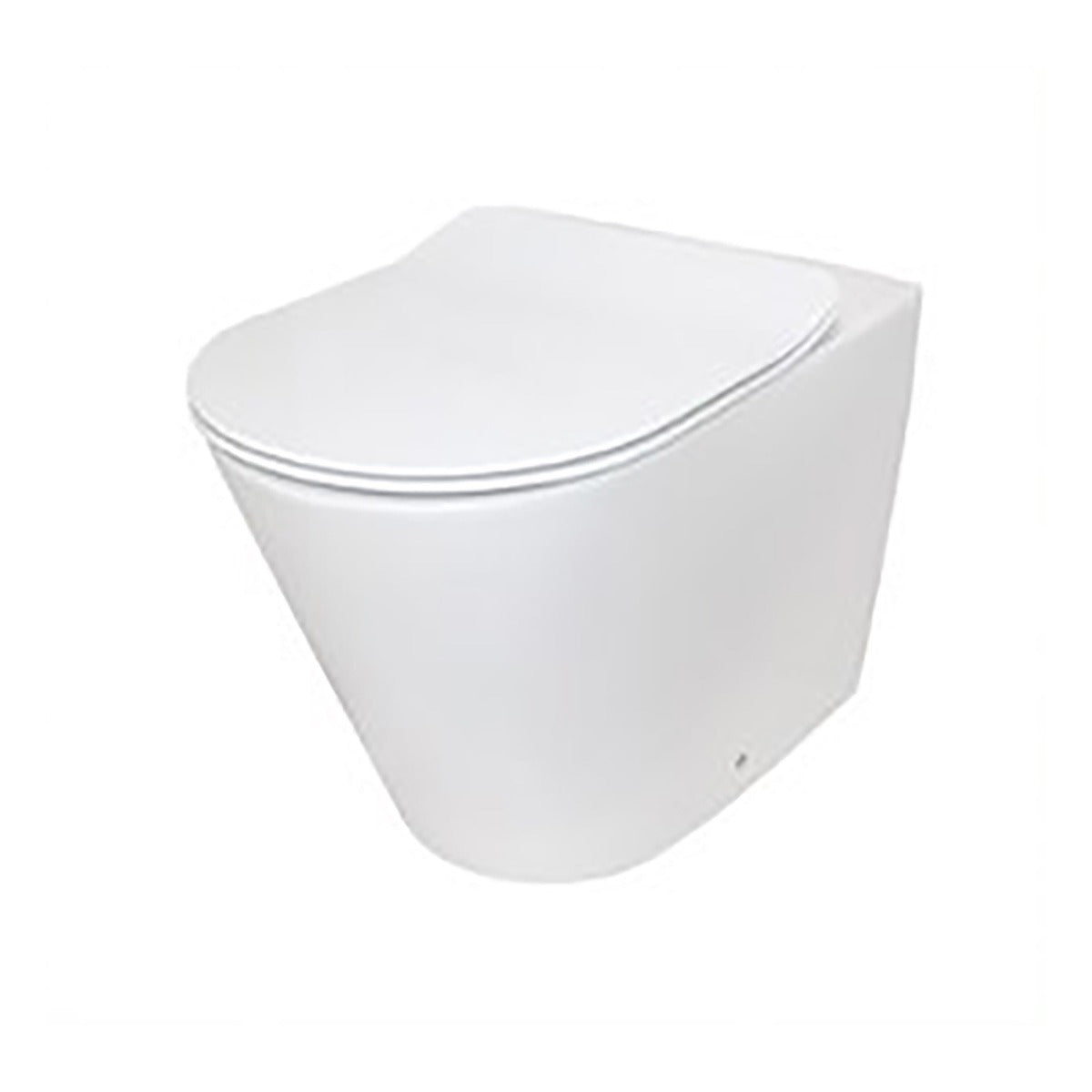

Pan: Raymor Edge II wall faced rimless pan
Construction material: Vitreous china
Colour: White
Seat: Slim soft close, quick release metal hinges, toggle fixing kit
Overall height: 405mm
Overall width: 360mm
Overall depth: 560mm
Trap: P or S trap

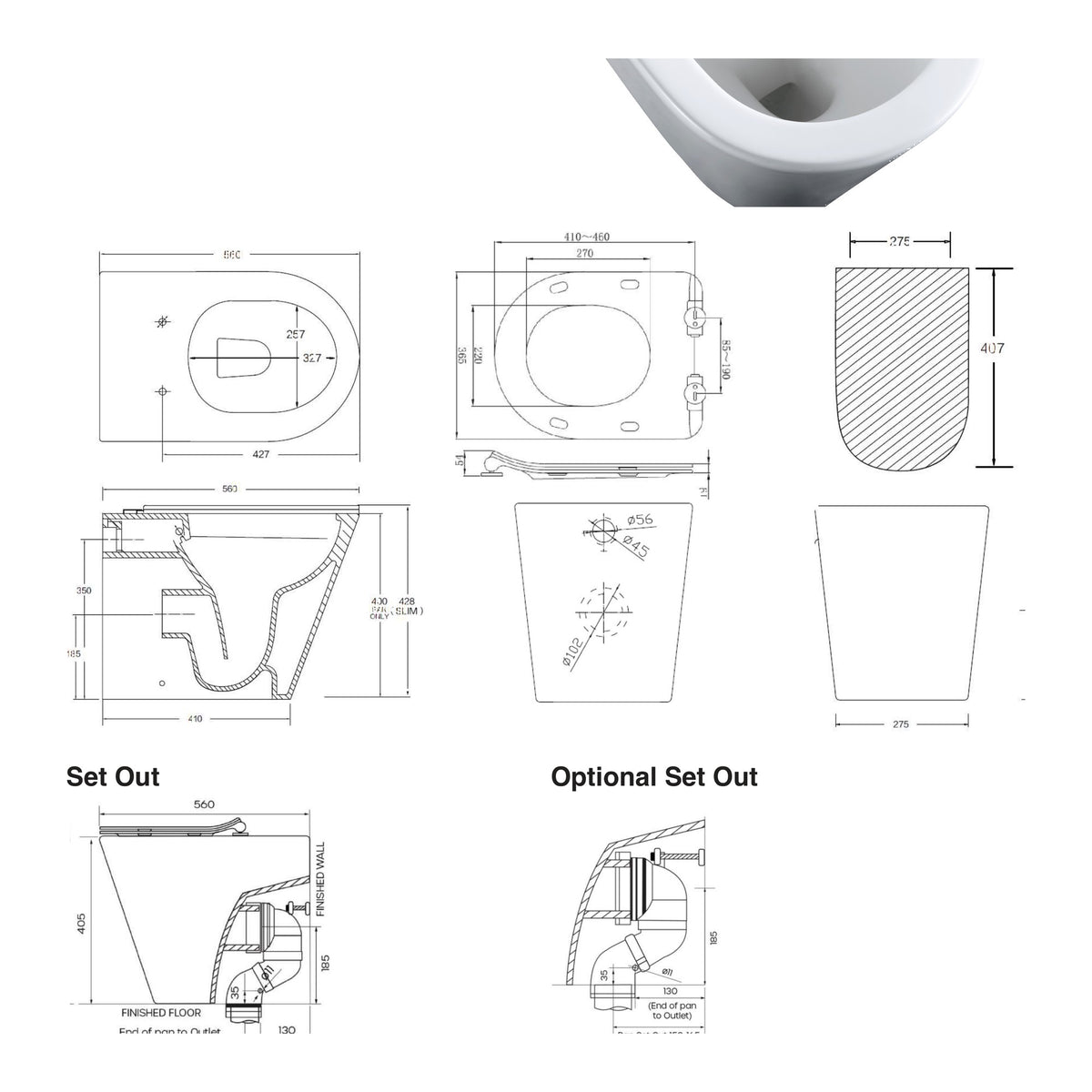

Set out: P trap 185mm; S trap 90mm to 105mm with the variance bend supplied (other bends sold separately for 60mm to 90mm, 95mm to 125mm and 150mm to 165mm)
Cistern options: R&T in-wall dual flush cistern (WELS registration L02631) or Geberit Sigma 8 concealed cistern 4.5/3L (WELS registration L05087)
Pan WELS rating: 4 star, 3.5L average flush, registration L07653 (as rated by Raymor with its 133137 in-wall cistern)
Country of origin: China
Pan warranty: 20 years vitreous china, 5 years seat and fittings, 1 year seals and labour

• 1 x Raymor Edge II Wall Faced Pan
• 1 x Slim Soft Close Seat
• 1 x Variance Bend
• Floor fixing
• Installation Instructions
• Plus the cistern and flush button you choose above, supplied as separate items
