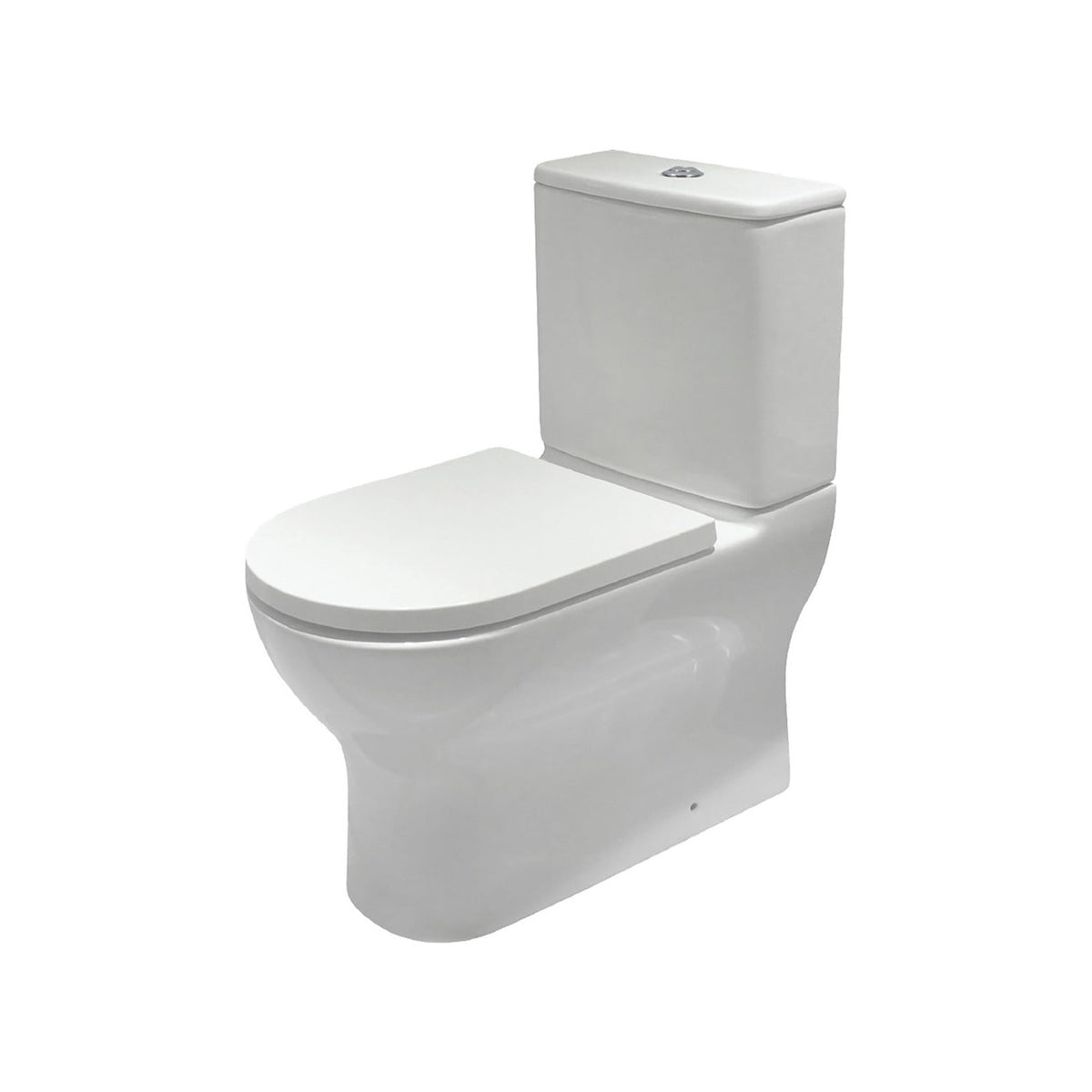

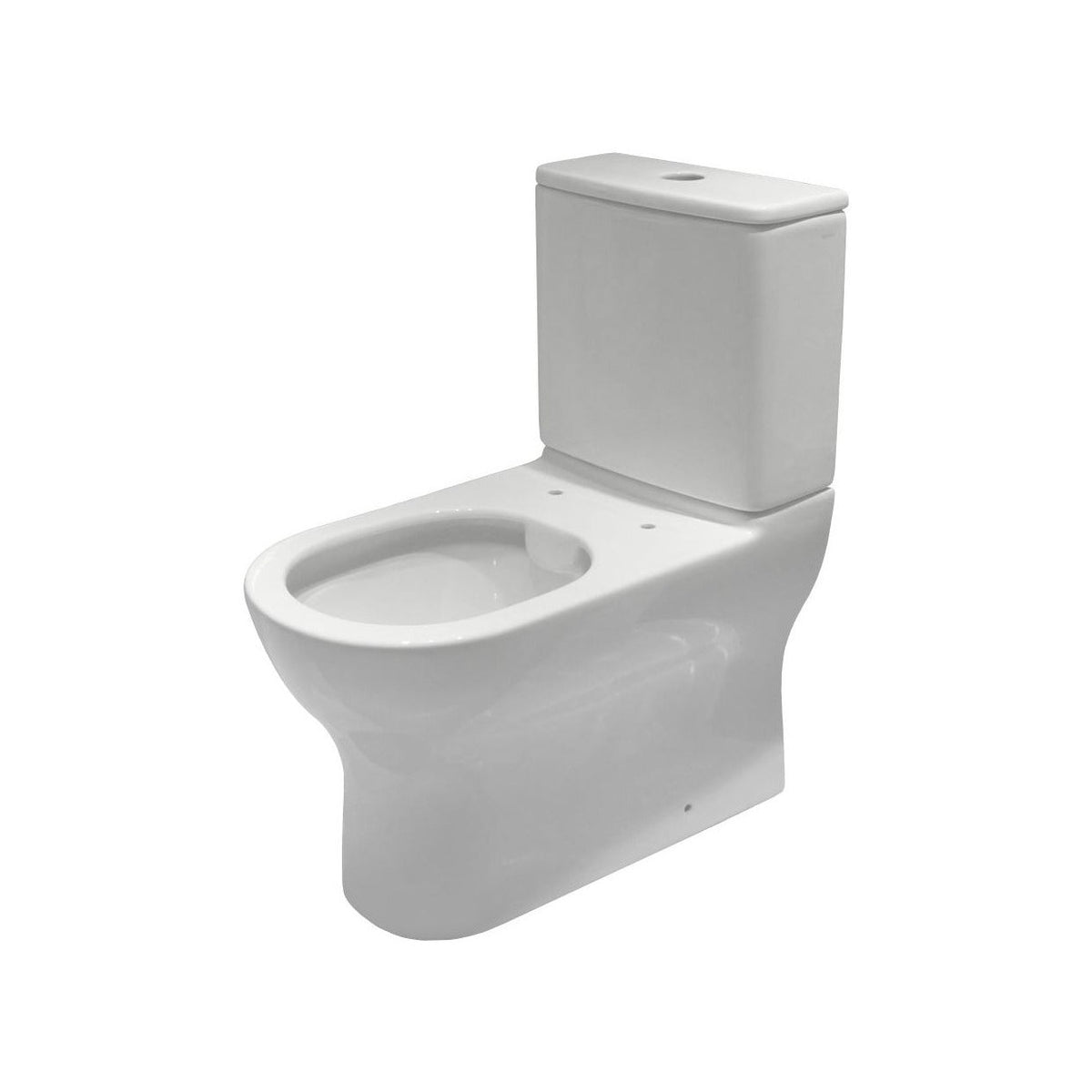

Raymor Alpha Back to Wall Rimless Toilet Suite Standard Seat White

Swapping out a tired suite and want it done in one visit from the plumber? The Raymor Alpha Back to Wall Rimless Toilet Suite with a standard seat is built to fit most existing set ups. Vitreous china pan and cistern, 790mm high, 365mm wide and 655mm deep, with a slim cistern lid. The universal trap takes a P trap at 185mm from the floor to the outlet centre, or an S trap from 75mm to 190mm as standard and 145mm to 225mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, standard soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Universal trap suits P trap at 185mm and S trap from 75mm to 225mm with the optional set out, so it fits most existing outlets
• Back to wall suite, which means no gap behind the pan to clean
• Rimless pan, so grime has nowhere to hide under a rim
• WDI universal inlet valve for bottom right or rear left entry, so your plumber connects to the existing supply
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• White soft close standard seat with quick release metal hinges, so it comes off for a proper clean
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check your inlet position before ordering. Ask your plumber if you're not sure.

Match it with a Raymor Alpha basin mixer and Alpha shower from the same range.

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal

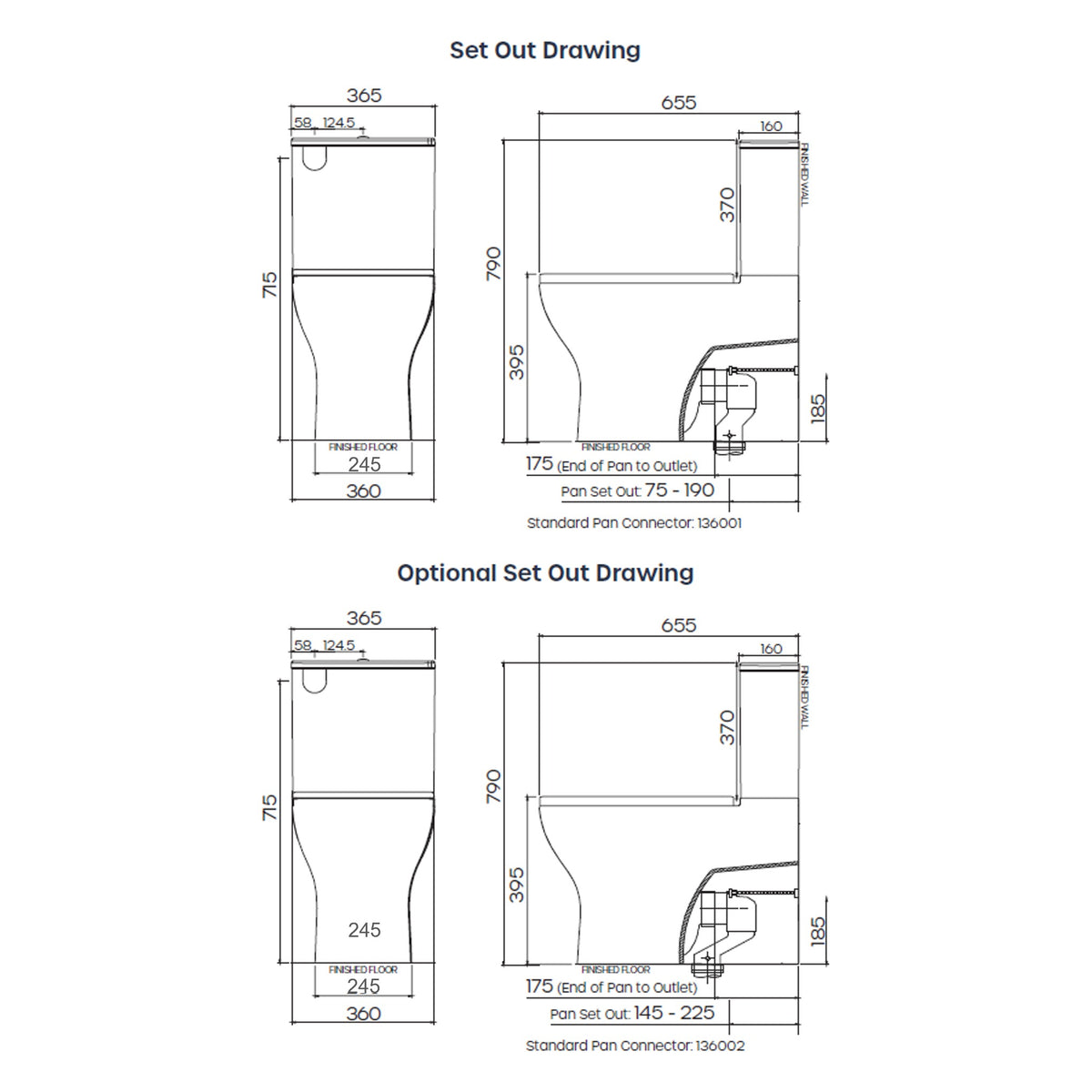

Set out: S-Trap Set Out: 75-190mm as standard, P-Trap Set Out: 185mm, Optional S-Trap Set Out: 145-225mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 790 mm
Overall width: 365 mm
Overall depth: 655 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08137
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals. and labour

• 1 x Alpha back to wall rimless pan
• 1 x Alpha back to wall cistern with slim lid
• 1 x Standard soft close seat
• Installation instructions
