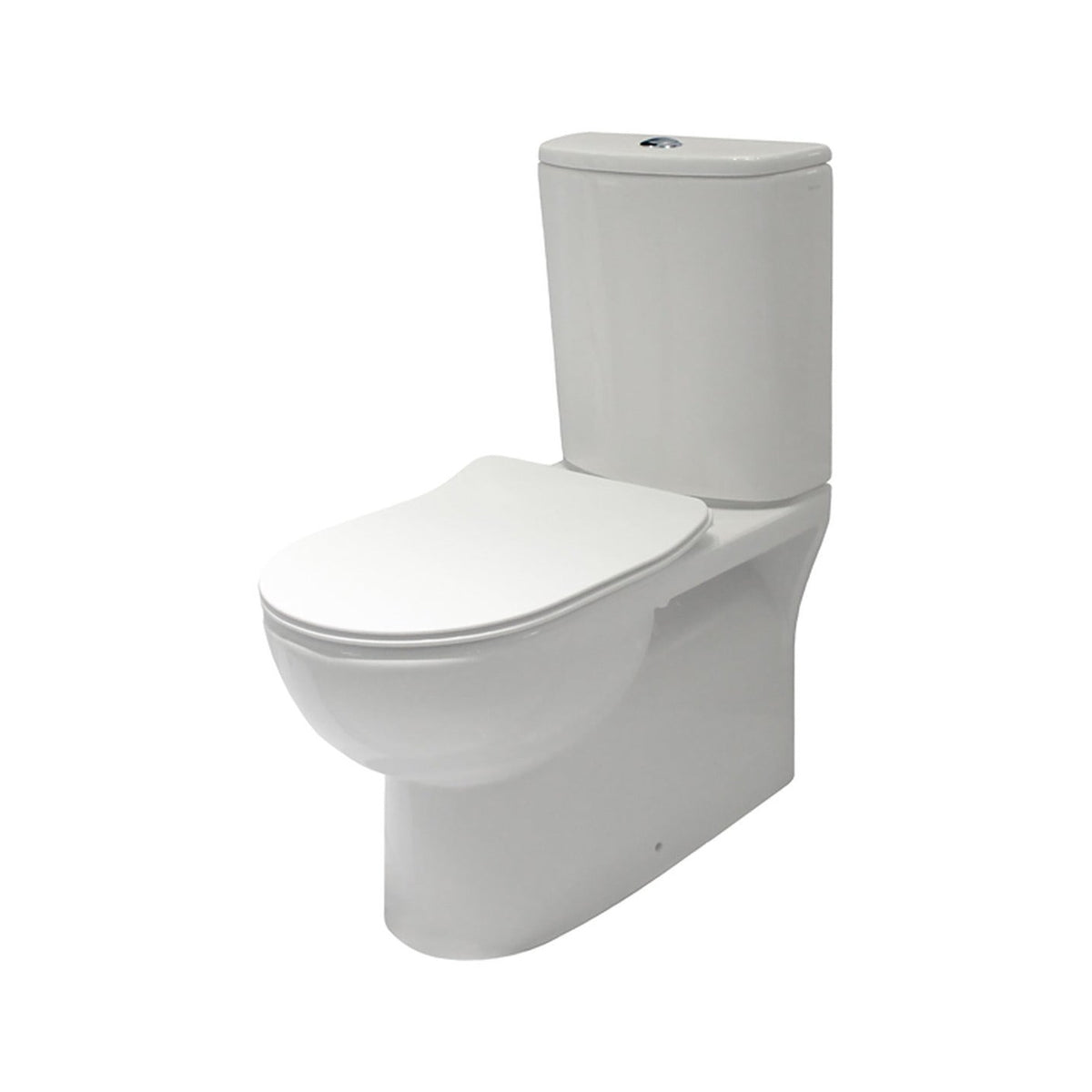

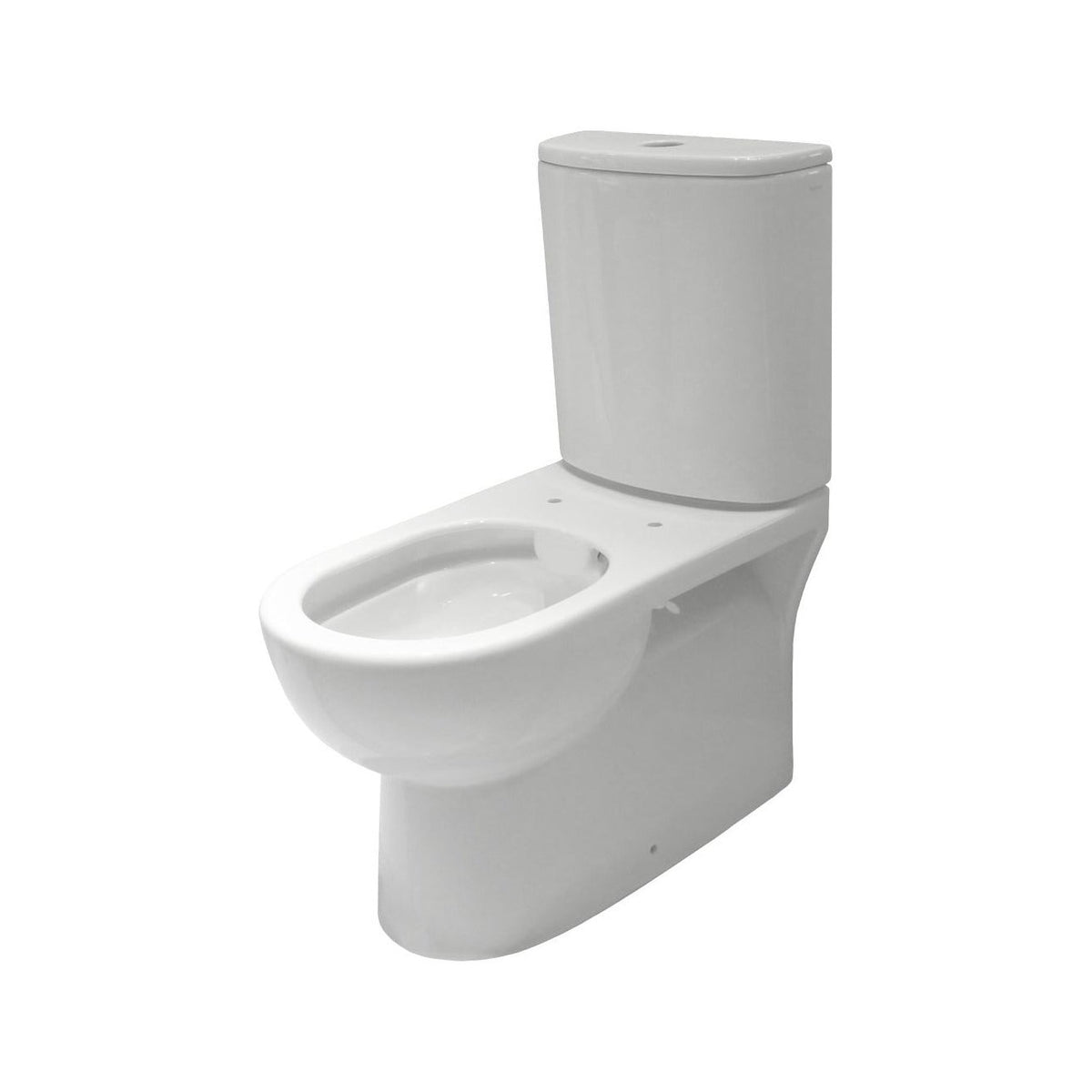

Raymor Atlanta Back to Wall Rimless Toilet Suite Slim Seat White

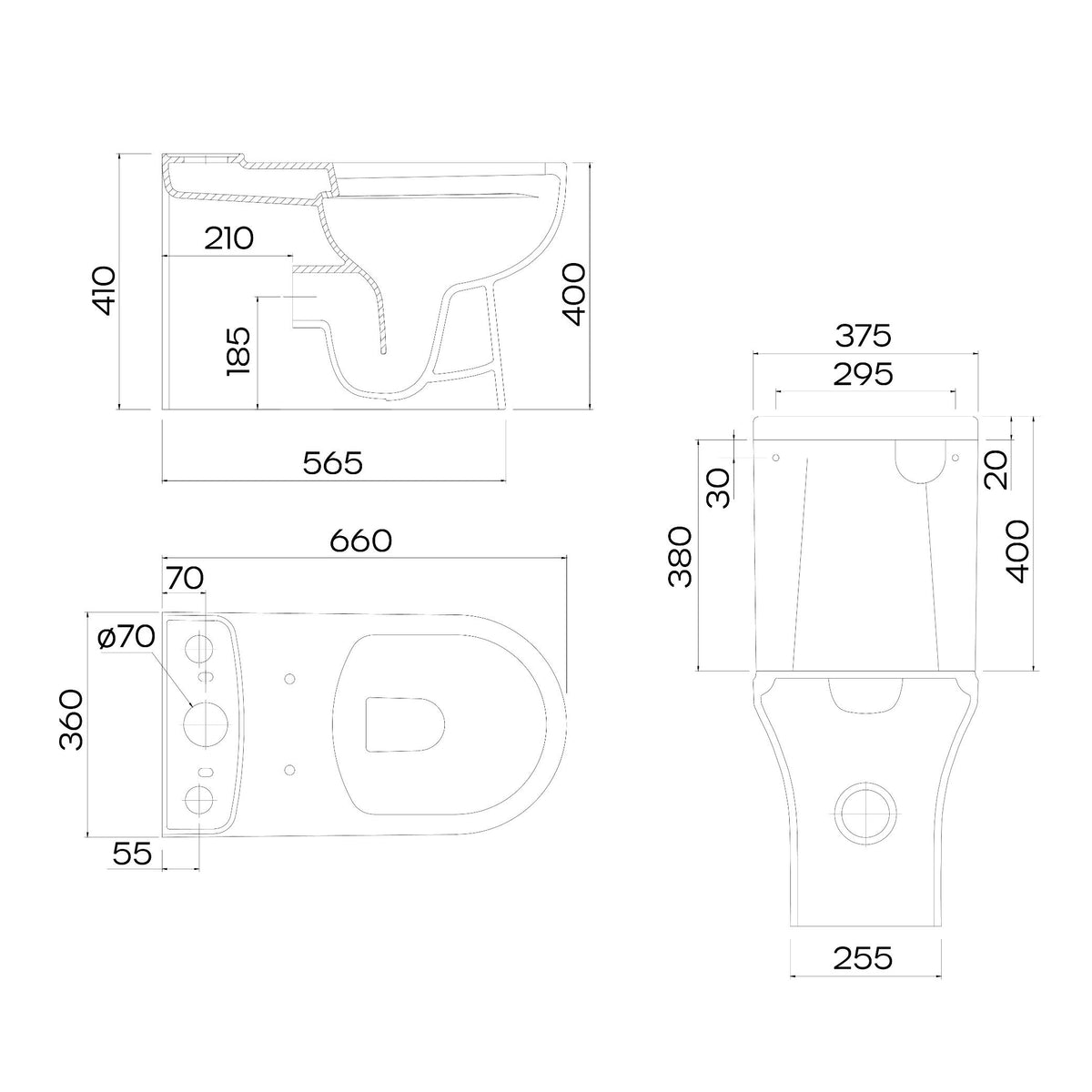

Want the Atlanta suite with a lower profile seat? The Raymor Atlanta Back to Wall Rimless Toilet Suite with a slim seat is that version. It's a back to wall suite with a vitreous china pan and cistern, 835mm high, 370mm wide and 665mm deep, with a slim cistern lid. The universal trap handles a P trap at 185mm from the floor to the outlet centre, or an S trap from 65mm to 175mm as standard and 75mm to 200mm with the optional set out. The WDI universal inlet valve adjusts for bottom right or rear left entry. Dual flush at 4.5 and 3 litres, WELS 4 star at 3.5 litres a flush. In the box: pan, cistern with slim lid, slim soft close seat and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Slim soft close seat with quick release metal hinges, so it sits lower on the pan and lifts off for cleaning
• Universal trap covers P trap at 185mm and S trap from 65mm to 200mm with the optional set out, so it suits most existing plumbing
• Back to wall suite, which leaves no gap behind the pan
• Rimless pan for fewer places grime can hide
• WDI universal inlet valve for bottom right or rear left entry, so your plumber uses what's already there
• 48mm round chrome dual flush button with a WDI 4.5 and 3 litre dual flush valve, WELS 4 star at 3.5 litres average flush
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Check your set out from the finished wall to the outlet centre and where your water inlet sits before you order. Your plumber can confirm both.

Pair it with a Raymor Atlanta basin mixer and Atlanta accessories to match.

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: WDI 4.5/3L Dual flush
Trap type: Universal
Set out: S-Trap Set Out: 65-175mm as standard; P-Trap Set Out: 185mm; Optional S-Trap Set Out: 75-200mm
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 835 mm
Overall width: 370 mm
Overall depth: 665 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L08136
Warranty: 20 years Vitreous China. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

• 1 x Atlanta back to wall rimless pan
• 1 x Atlanta back to wall cistern with slim lid
• 1 x Slim soft close seat
• Installation instructions
