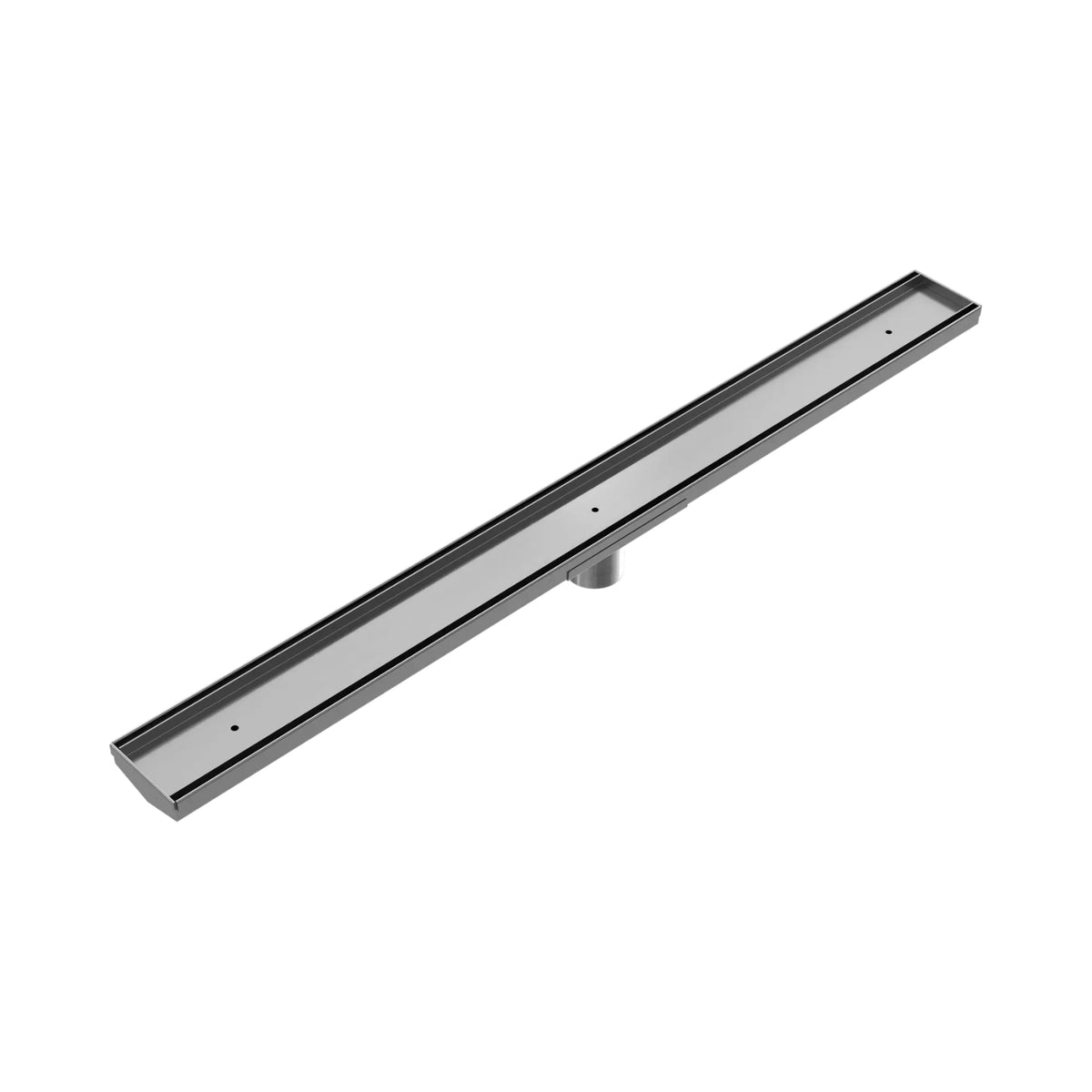

Nero Tile Insert V Channel 900x82mm Floor Grate 50mm Outlet Gun Metal

Laying new tiles, or replacing a floor waste that's seen better days? The Nero Tile Insert V Channel 900x82mm Floor Grate 50mm Outlet in Gun Metal sits flush with the tiled floor, so the finish runs clean and continuous across the room. The tile insert channel takes tiles up to 10mm thick, plus adhesive, which keeps the look consistent underfoot. It's made from 304 stainless steel, so it's built for wet-area duty over the long haul, and the gun metal finish keeps things quiet and considered. The 900mm length with a 50mm outlet suits standard floor waste layouts. All Nero floor grates are watermark certified, and there's a 10 year warranty behind it.

• V-channel profile speeds up water flow, so the floor drains quickly and efficiently
• Tile insert channel accepts tiles under 10mm thick for a tiled-over finish that disappears into the floor
• Fits a 50mm puddle flange, which makes it straightforward to tie into your existing waste
• 304 stainless steel construction stands up to constant moisture and lasts the distance

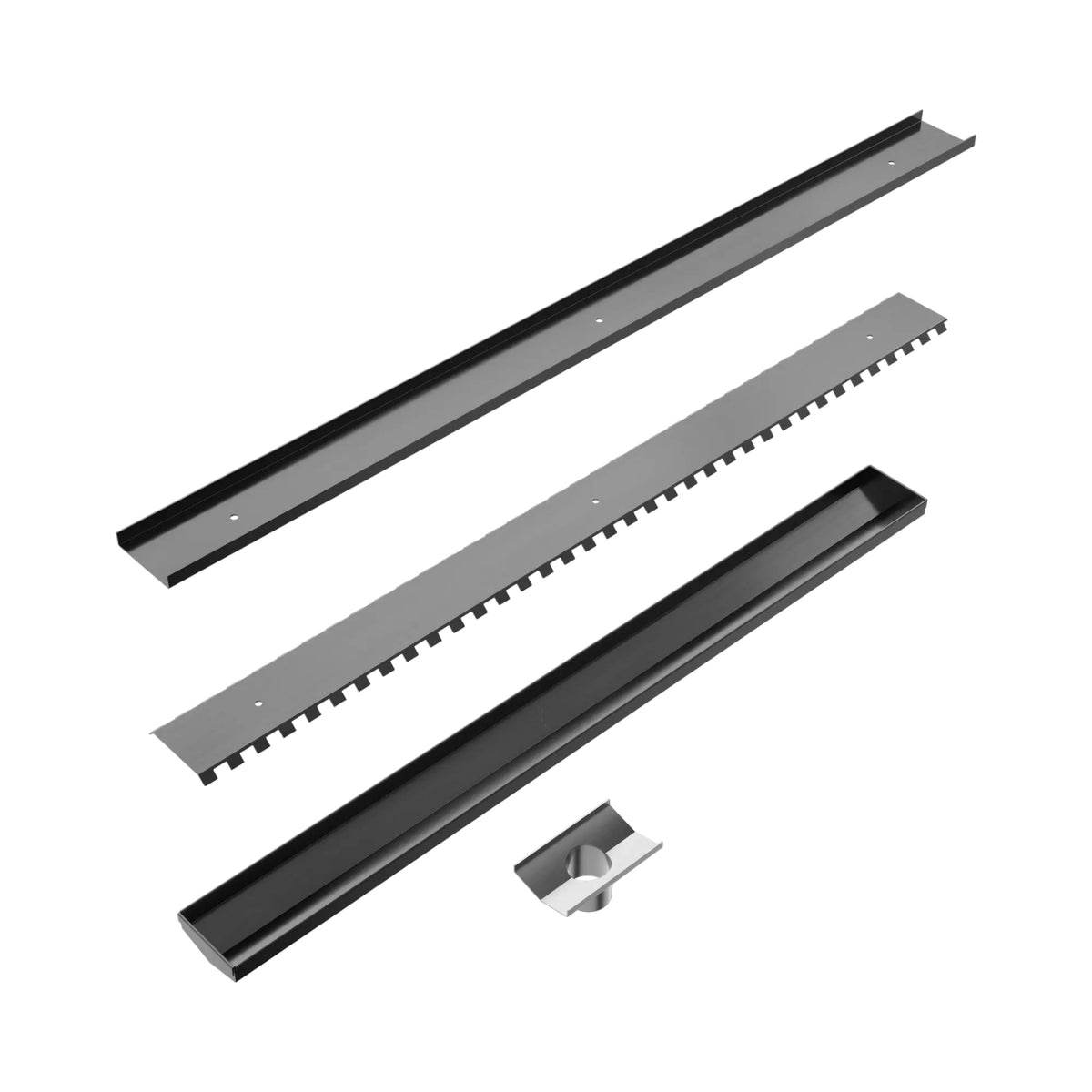

• Separate waste outlet and grate design gives your plumber more flexibility during install
• Also available in 5 finishes to suit different bathroom styles

Note: the outlet and grate are packed separately, and a hole saw isn't included. You can add one to your order from the drop-down box if you need it. Need a hand? Check with your plumber first.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

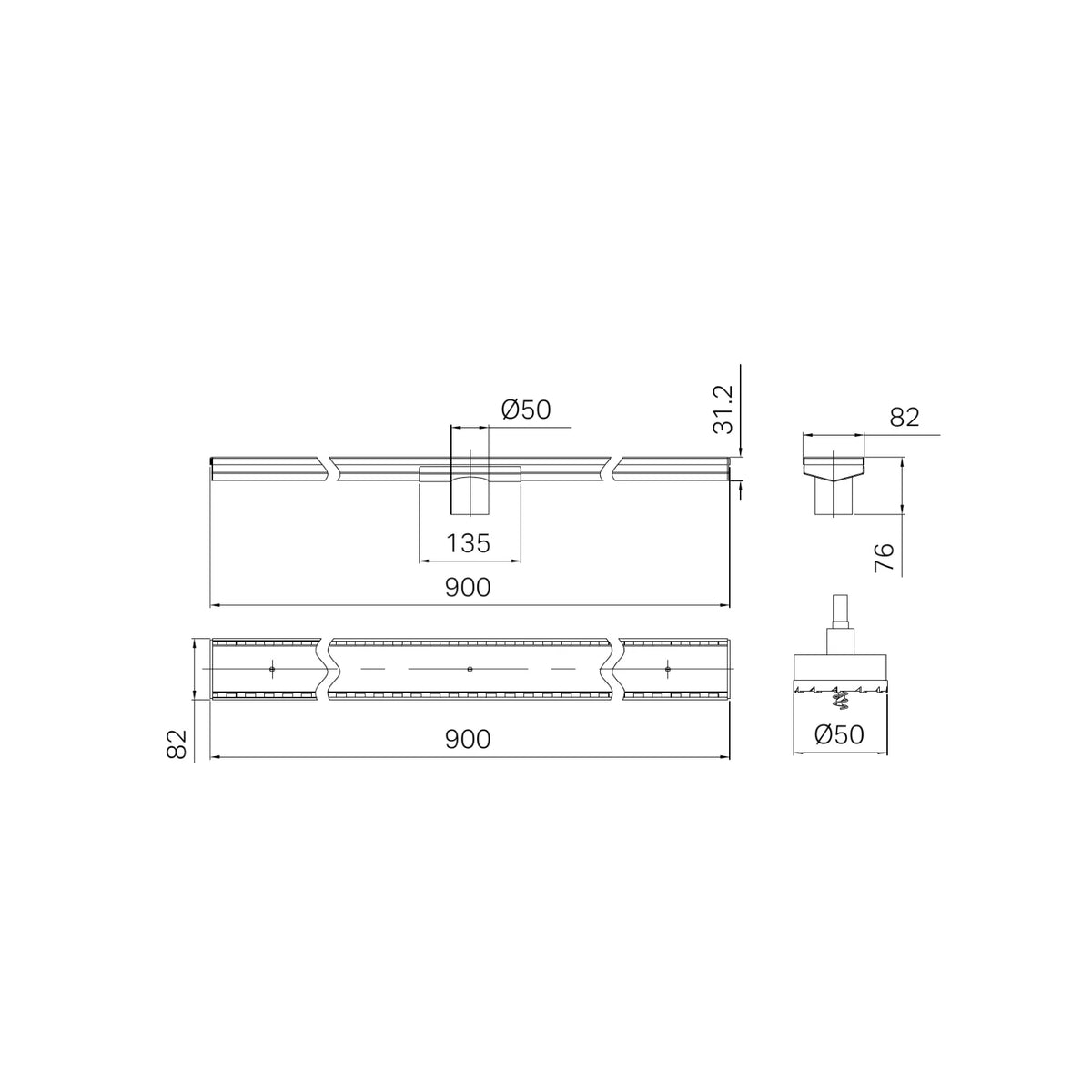

Overall length: 900mm
Overall width: 82mm
Required Hole Size: 50mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

Download the specification sheet below:

Nero Tile Insert V Channel 900x82mm Floor Grate 50mm Outlet Gun Metal

Nero offers up to 25 Year Residential Warranty as outlined below.

Nero Tapware is committed to providing high-quality products designed to meet the highest industry standards. Our warranty reflects our confidence in the durability and reliability of our products.

Premium Ranges

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Tapware:

• 25 years replacement cartridge only
• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Zen, Opal, York, Bianca, Mecca & Mecca Care Showers:

• 25 years replacement products or parts on all finishes
• 25 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 2 years replacement products or parts & labour

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Bathroom Accessories:

•  25 years replacement products or parts on all finishes

Heated Towel Rails:

• 25 years replacement products or parts on all finishes
• 1 year on power transformer (replacement only)

Electronic Mixers / Taps & Push Taps:

• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Standard Ranges (if not detailed in table above)

Mixer Taps:

• 15 years replacement cartridge only
• 10 years replacement products or parts on all finishes
• 10 years on washing machine stops (replacement only)
• 1 year replacement products or parts & labour

Showers:

• 10 years replacement products or parts on all finishes
• 10 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 1 year replacement products or parts & labour

Bath Outlets:

• 10 years replacement products or parts only on all finishes

Bathroom Accessories:

• 10 years replacement products or parts only on all finishes

Other Accessories:

• 10 years on universal pop-up waste (replacement only)
• 10 years on bottle trap (replacement only)
• 10 years on glass hardware (replacement only)
• 10 years product replacement and 1 year labour on toilet push plate only
• 10 years product replacement and 1 year labour on cistern only
• 10 years on floor wastes (replacement only)

The warranty period commences from date of purchase or, for new buildings, date of handover. To make a warranty claim, proof of purchase, handover documentation for new homes or equivalent documentation must be supplied for warranty claims to be considered.

Nero also offer generous warranty periods for commercial installations. To view these warranty periods and for their full warranty document click here
