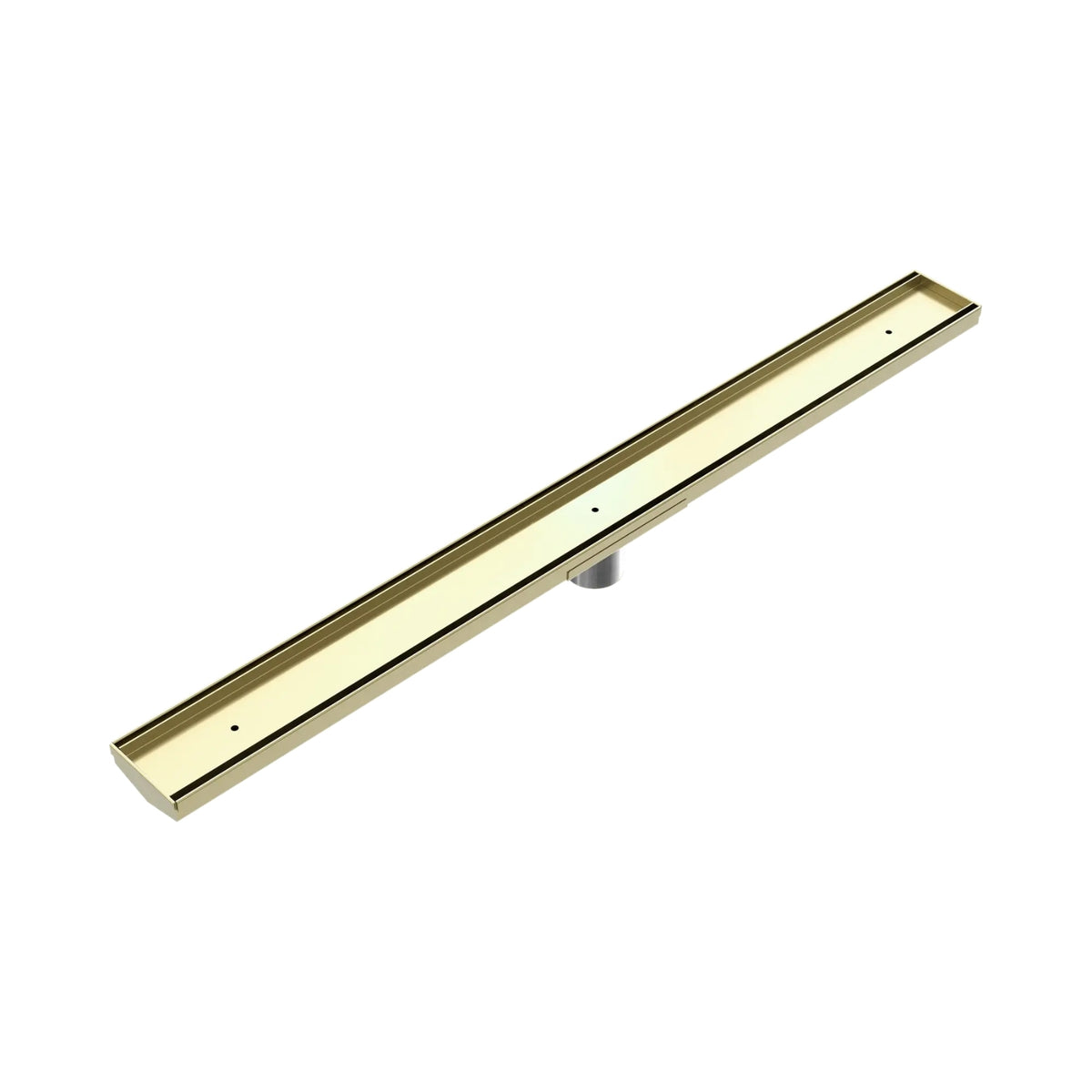

Nero Tile Insert V Channel 900x82mm Floor Grate 50mm Outlet Brushed Gold

Setting up a new shower drain, or replacing one that's seen better days? The Nero Tile Insert V Channel 900x82mm Floor Grate with 50mm Outlet in Brushed Gold lets you drop your own tile into the grate, so it sits low and blends into the floor for a clean finish. It's built from 304 stainless steel, which handles constant wet-area use without complaint. The V-channel profile moves water through quickly for reliable drainage. Brushed gold ties in with your tapware and other fittings, and all Nero floor grates are watermark certified. Backed by a 10 year warranty, so you can tile over it and forget it.

• Made from durable 304 stainless steel, so it holds up to constant moisture over the long term
• V-channel profile speeds up water flow, which helps the floor drain efficiently
• Measures 900x82mm and fits a 50mm puddle flange, making it straightforward to connect during installation
• Suited to tiles under 10mm thick for a neat tile-insert finish

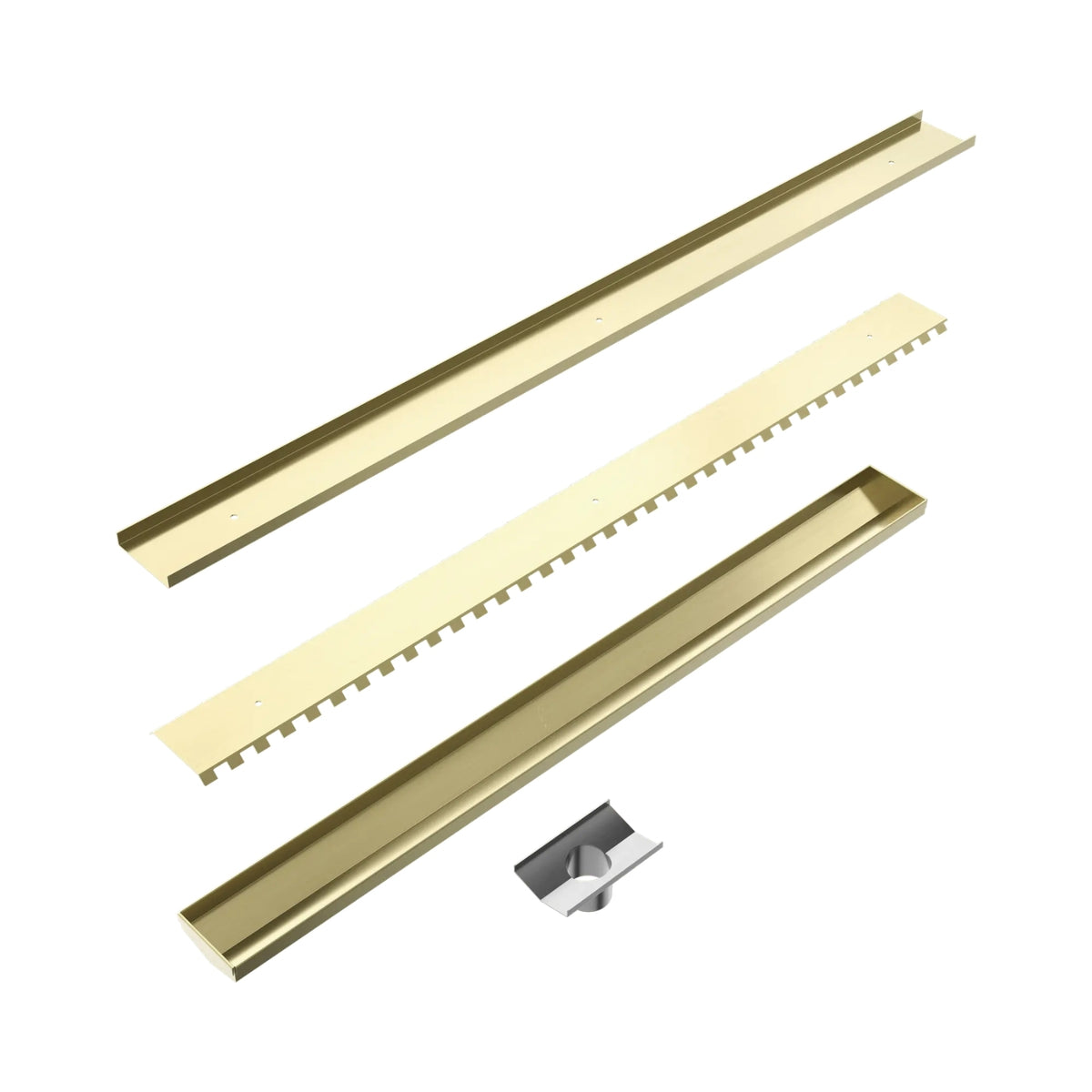

• Separate waste outlet and grate design gives your plumber more flexibility on the day
• Also available in 5 finishes to suit different bathroom styles

The outlet and grate are packed separately, and no hole saw is included, though you can add one to your order from the drop-down if you need it.

Check your tile thickness and outlet position with your plumber before ordering.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

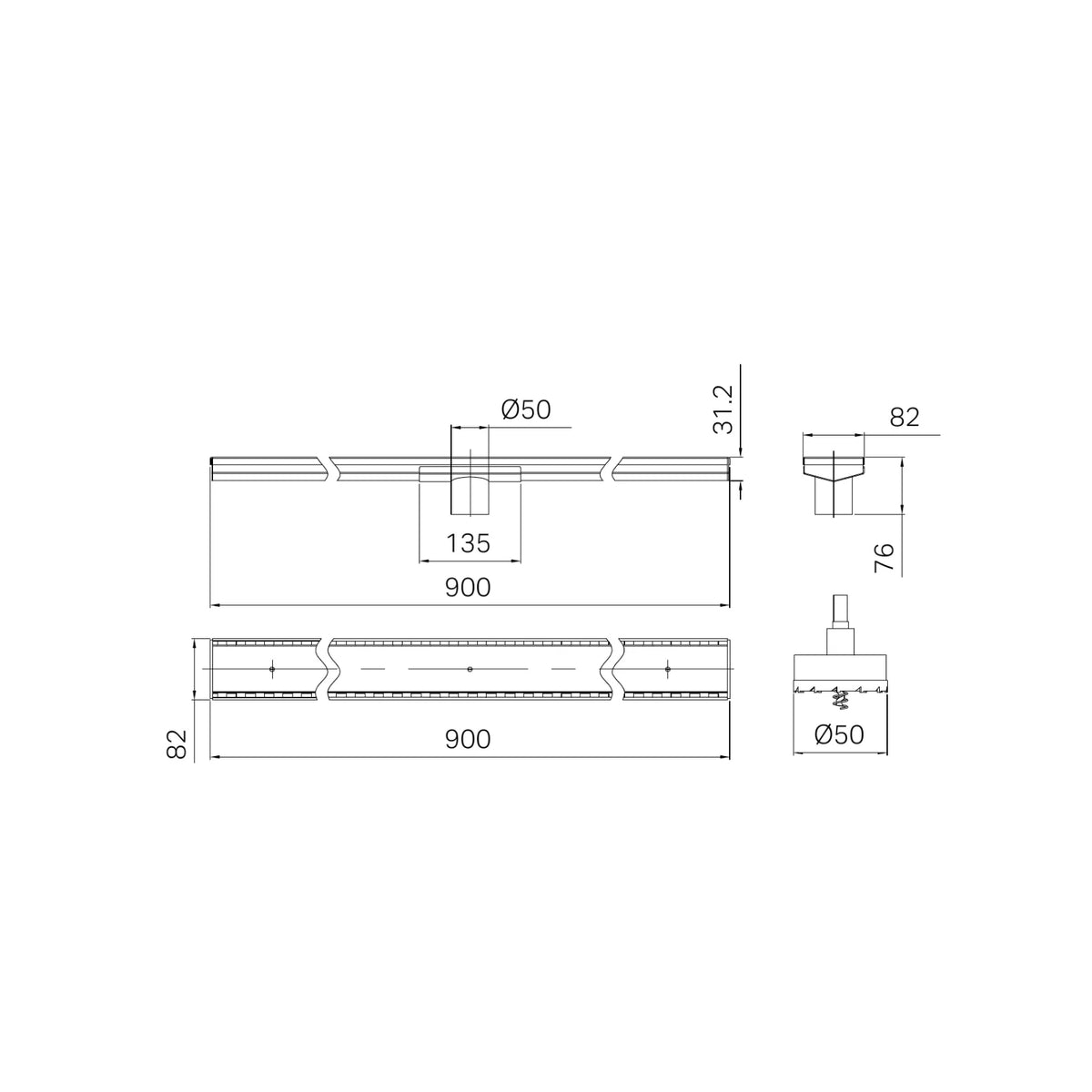

Overall length: 900mm
Overall width: 82mm
Required Hole Size: 50mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

Download the specification sheet below:

Nero Tile Insert V Channel 900x82mm Floor Grate 50mm Outlet Brushed Gold
