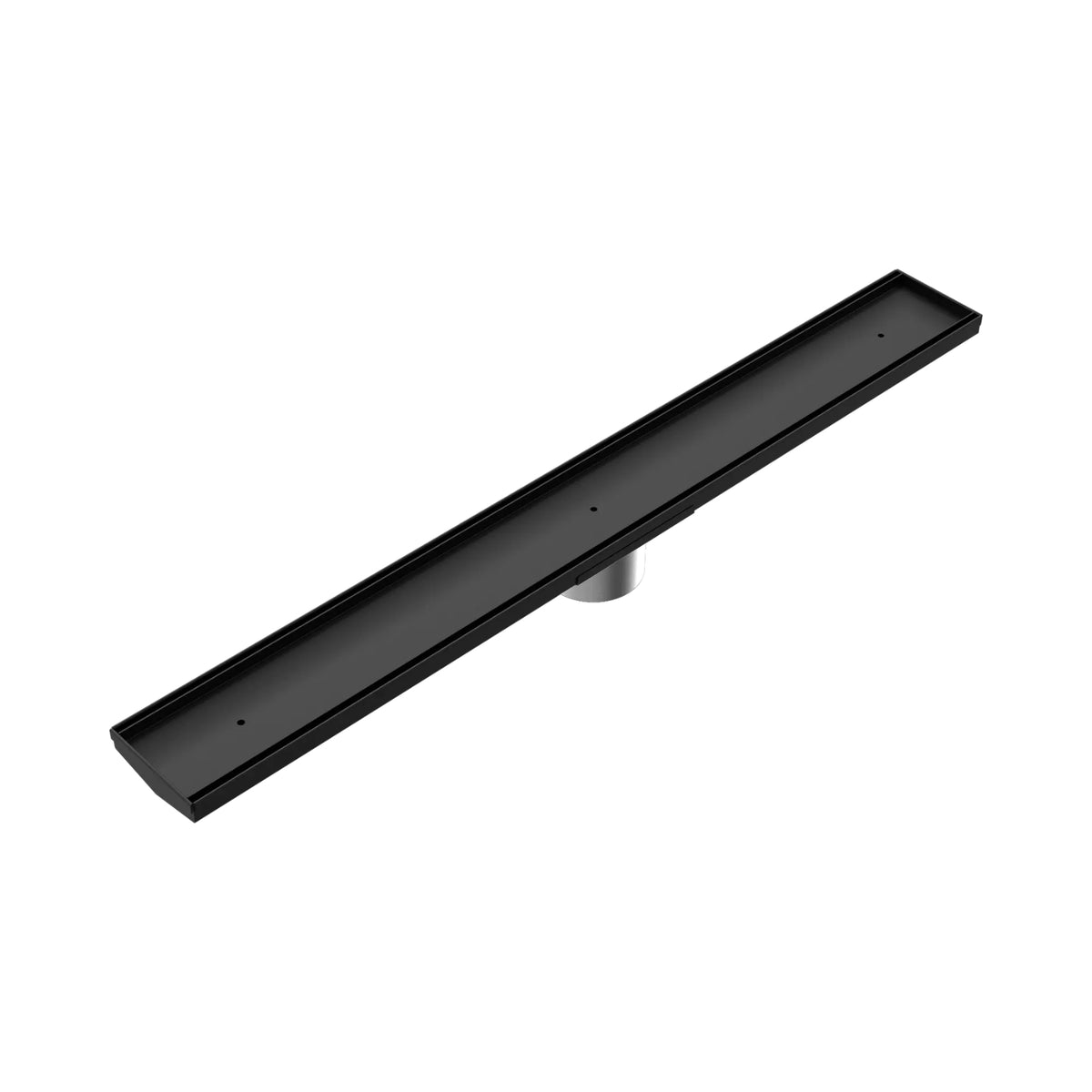

Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet Matte Black

Want the drainage to vanish into the floor? That's what a tile insert grate does, and the Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet in Matte Black does it neatly. The insert takes tiles up to 10mm thick, so the grate sits flush with your tiles for a built-in finish. It's made from 304 stainless steel with a matte black finish that stands up to daily use in a wet area. The V-channel profile keeps water moving, and the 80mm outlet connects to an 80mm puddle flange. Outlet and grate come as separate components, which gives you and your plumber more room to work on the day. All Nero Floor grates are watermark certified, and there's a 10 year warranty behind it. Also available in 5 finishes.

• 304 stainless steel construction for long-lasting performance in a wet area
• Tile insert accepts tiles less than 10mm thick, so the grate blends into your floor
• V-channel profile speeds up water flow and improves drainage
• 80mm outlet suits an 80mm puddle flange for straightforward integration
• Separate waste outlet and grate design gives greater flexibility during installation
• Backed by a 10 year warranty for peace of mind

Note: the outlet and grate are packed separately and a holesaw is not included. Add one to your order from the drop-down if you need it. Otherwise your plumber will most likely have one in the ute.

Check your outlet position and tile thickness before ordering. Need a hand? Ask your plumber to confirm.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: Electroplated

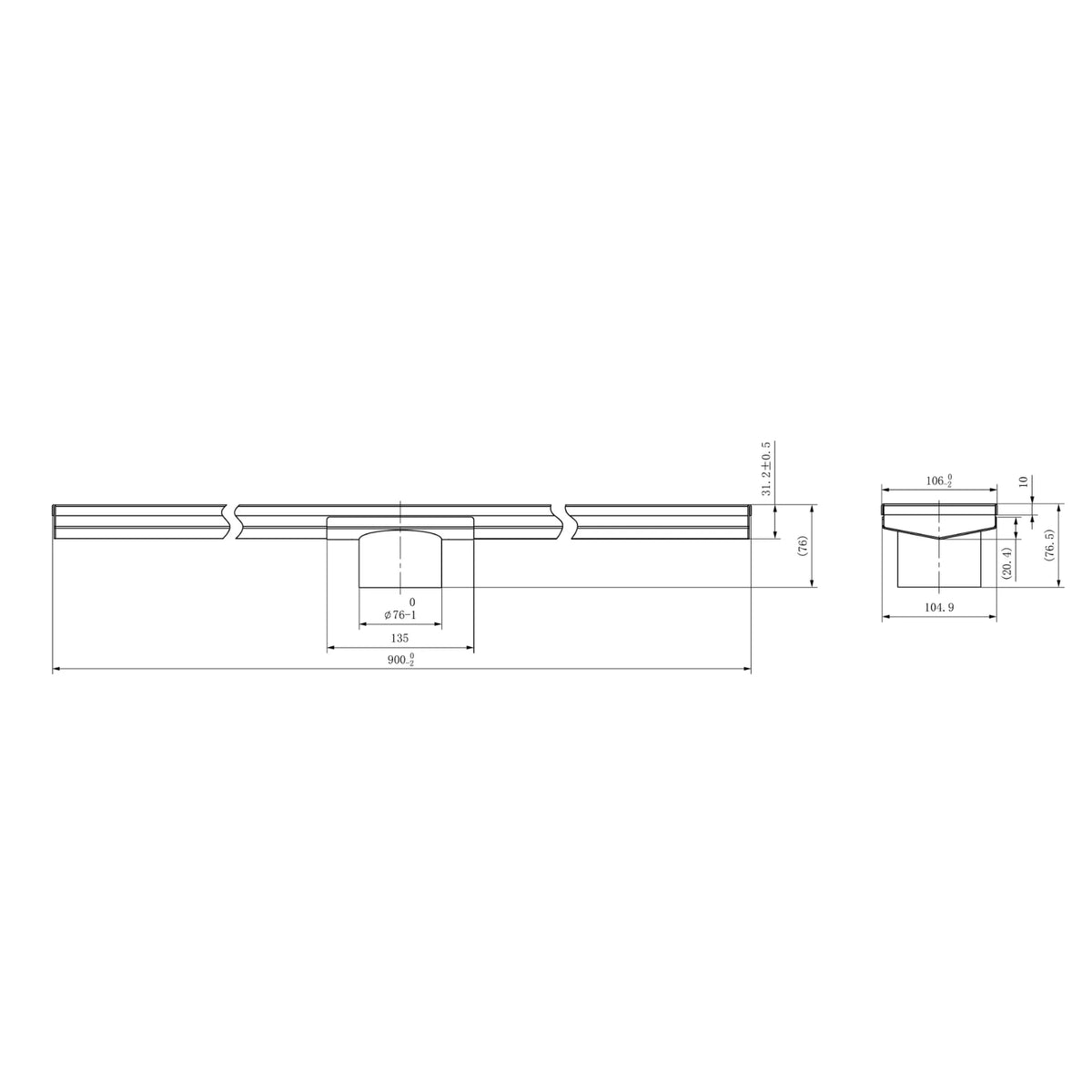

Overall length: 900mm
Overall width: 106mm
Required Hole Size: 80mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

Download the specification sheet below:

Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet Matte Black

Nero offers up to 25 Year Residential Warranty as outlined below.

Nero Tapware is committed to providing high-quality products designed to meet the highest industry standards. Our warranty reflects our confidence in the durability and reliability of our products.

Premium Ranges

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Tapware:

• 25 years replacement cartridge only
• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Zen, Opal, York, Bianca, Mecca & Mecca Care Showers:

• 25 years replacement products or parts on all finishes
• 25 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 2 years replacement products or parts & labour

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Bathroom Accessories:

•  25 years replacement products or parts on all finishes

Heated Towel Rails:

• 25 years replacement products or parts on all finishes
• 1 year on power transformer (replacement only)

Electronic Mixers / Taps & Push Taps:

• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Standard Ranges (if not detailed in table above)

Mixer Taps:

• 15 years replacement cartridge only
• 10 years replacement products or parts on all finishes
• 10 years on washing machine stops (replacement only)
• 1 year replacement products or parts & labour

Showers:

• 10 years replacement products or parts on all finishes
• 10 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 1 year replacement products or parts & labour

Bath Outlets:

• 10 years replacement products or parts only on all finishes

Bathroom Accessories:

• 10 years replacement products or parts only on all finishes

Other Accessories:

• 10 years on universal pop-up waste (replacement only)
• 10 years on bottle trap (replacement only)
• 10 years on glass hardware (replacement only)
• 10 years product replacement and 1 year labour on toilet push plate only
• 10 years product replacement and 1 year labour on cistern only
• 10 years on floor wastes (replacement only)

The warranty period commences from date of purchase or, for new buildings, date of handover. To make a warranty claim, proof of purchase, handover documentation for new homes or equivalent documentation must be supplied for warranty claims to be considered.

Nero also offer generous warranty periods for commercial installations. To view these warranty periods and for their full warranty document click here

• Delivery insurance is included on all product deliveries. Please note, goods need to be inspected within 24 hours of delivery for breakages
