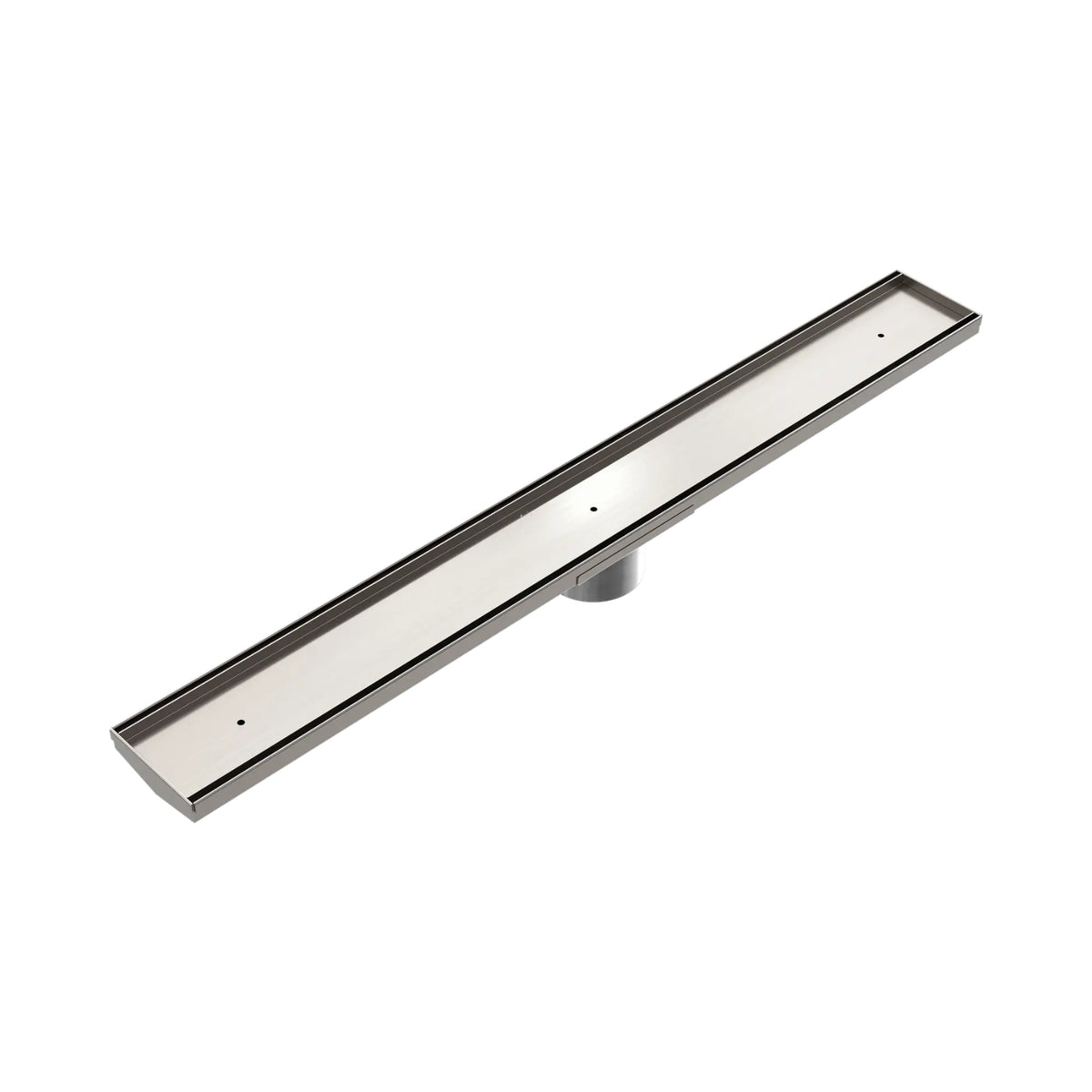

Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet Brushed Nickel

Want the drain to vanish into the floor? A tile insert grate is how you do it. The Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet in Brushed Nickel takes your own tile inside the grate, so it reads as part of the surrounding floor instead of a strip of metal across it. The slim V channel profile speeds up water flow, which means the floor clears quickly after a shower. At 900 x 106mm with an 80mm outlet it suits standard set-ups, and the 304 stainless steel build handles years of wet-area duty. There's a 10 year warranty behind it: quality you can trust at a fair price.

• Made from durable 304 stainless steel, so it stands up to constant moisture and lasts
• V-channel profile improves water flow speed and drainage efficiency for a floor that clears quickly
• Fits an 80mm puddle flange for straightforward integration with common drainage
• Separate waste outlet and grate design gives your plumber greater flexibility during install
• Suits tiles less than 10mm thick, so your chosen tile sits neatly in the insert
• All Nero Floor grates are watermark certified, so it meets Australian plumbing requirements
• Covered by a 10 year warranty for peace of mind

Note: the outlet and grate are packed separately, and a hole saw is not included. If you need one, add a hole saw to your order from the drop-down box. Better to have it on the bench than halfway through the job.

Also available in 5 finishes to match various bathroom styles.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 900mm
Overall width: 106mm
Required Hole Size: 80mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

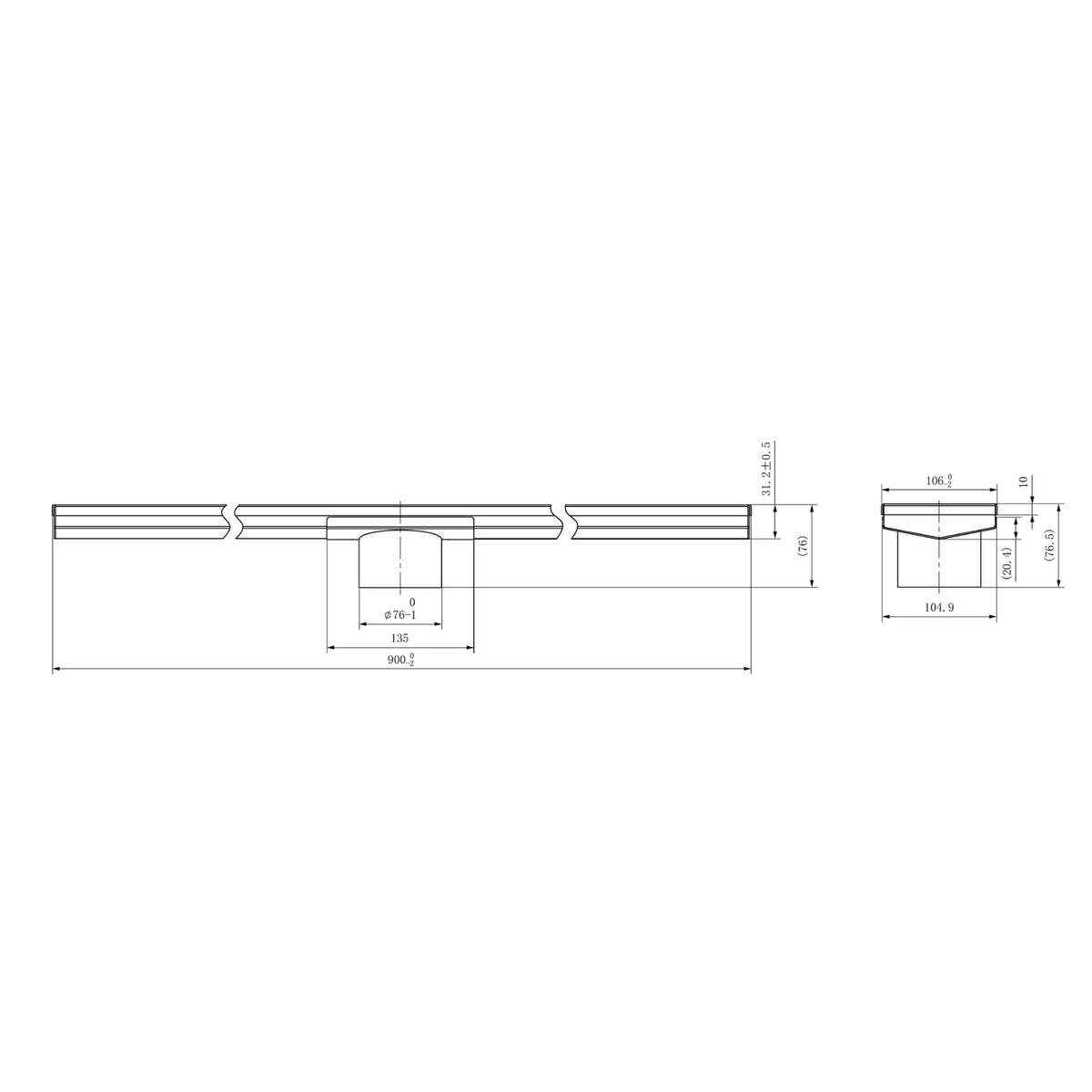

Download the specification sheet below:

Nero Tile Insert V Channel 900x106mm Floor Grate 80mm Outlet Brushed Nickel
