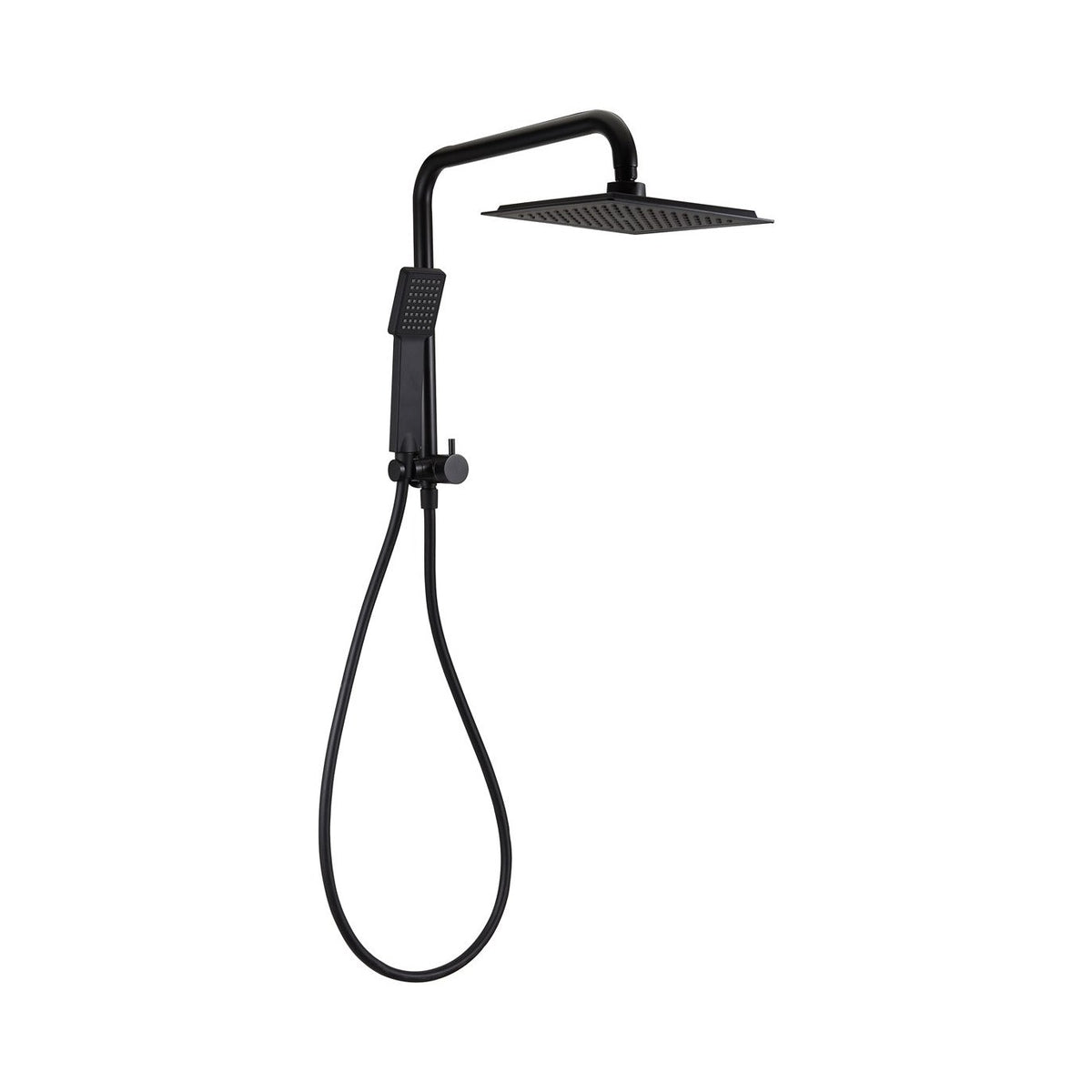

Raymor Winton Compact Dual Shower Square 225mm Black

Window in the way of a full length rail? The Raymor Winton Compact Dual Shower Square 225mm in Black pairs a square overhead rose with a hand shower on a short rail, for ensuites and bathrooms where the standard Winton dual is too tall. Both run from one wall outlet, with a diverter to send the water where you want it. The rose sits on a 400mm arm. Rail and diverter are brass, the rose, handpiece and slider are ABS to keep them light, and the hose is PVC. WELS 3 star rated at 9 litres a minute whichever head you use. Backed by a 20 year warranty on the brass body, rail, arm, hose, showerhead, handpiece, slide bracket and diverter, with 20 years on a chrome finish or 5 years on an electroplated finish. Also available in Chrome and Brushed Nickel.

• Compact rail that fits under a window or in a small ensuite
• Square overhead rose with a matching square handpiece for a consistent look
• Diverter in the rail so you switch from rose to hand shower with one move
• 400mm arm that puts the overhead rose in the middle of the shower
• Brass rail and diverter for strength, ABS heads to keep the weight off the wall
• Black finish that lines up with Winton square tapware
• WELS 3 star at 9 litres a minute

Runs off one wall outlet, no soap dish included. Have your plumber check the outlet height before you commit.

If you have room for the taller rail, see the Winton Dual Shower Square, and match either with Winton mixers in the same finish.

WELS water efficiency: 3 star
WELS water consumption: 9.0 L/Min
WELS registration number: S18319
Construction material: Brass rail, ABS shower head and PVC hose

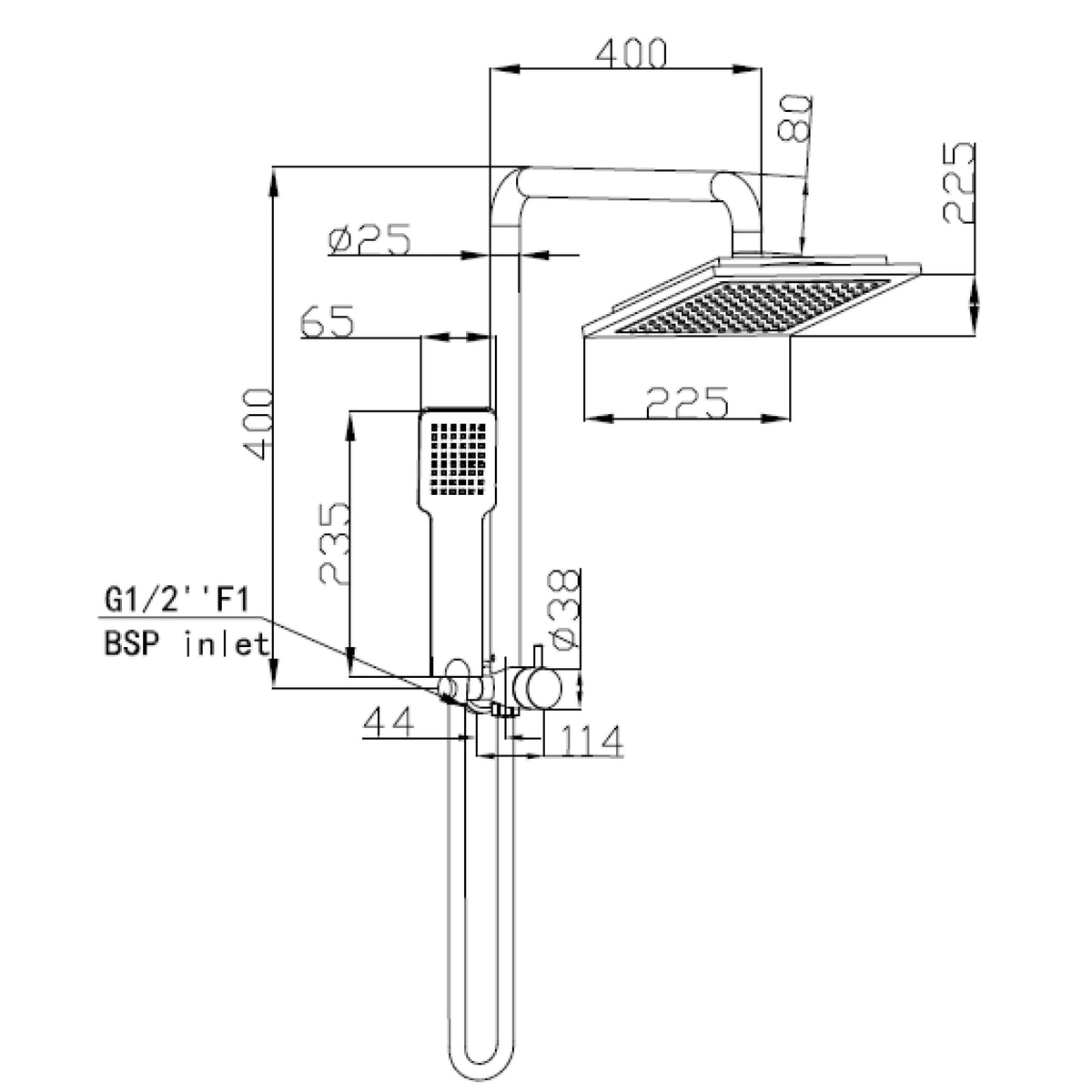

Rose size: 225mm
Arm reach: 400mm
Overall height: 400 mm
Overall width: 225 mm
Country of origin: China
Warranty: 20 Years main brass body, wall elbow, shower arm, shower rail, PVC coated hose, showerhead, handpiece, slide bracket, diverter assembly, soap dish, and chrome plated finish. 5 Years PVD and electroplate finishes. 1 Years seals and Labour
