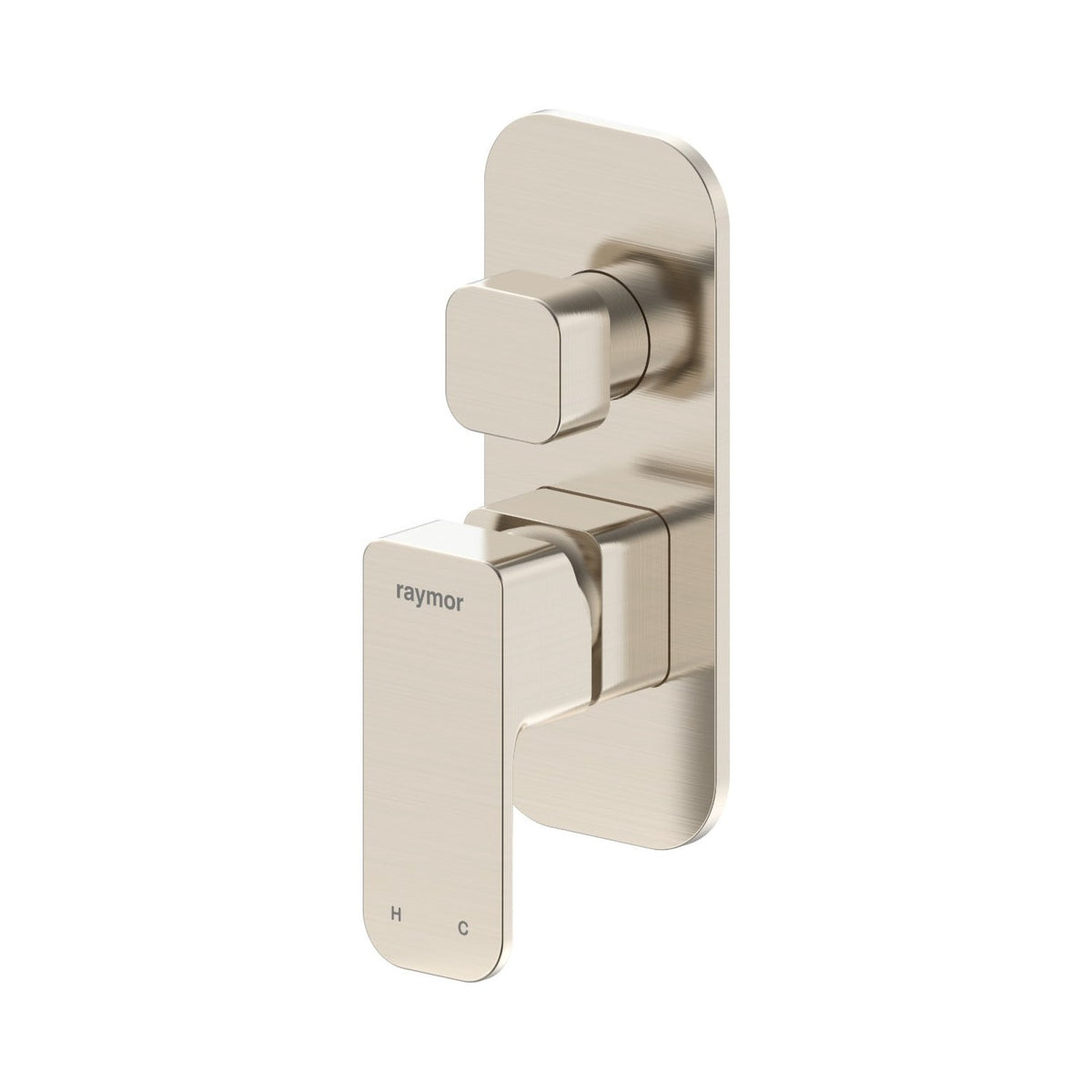

Raymor Sigma Wall Mixer and Diverter Brushed Nickel

Combined bath and shower need a smarter control? The Raymor Sigma Wall Mixer with Diverter in Brushed Nickel handles a bath and shower from the one spot. The paddle handle sets temperature and flow, and the built-in diverter switches water between the spout and the shower head. It comes with the Ray 1 in-wall body, made as a single piece with a dedicated wet-seal area, so the part hidden in the wall is built to last. The mixer uses a ceramic disc cartridge in a brass housing for smooth, drip-free control, and the body is DZR brass under a brushed nickel electroplated finish. You get a 20 year warranty on the cartridge, body and handle, with 5 years on PVD and electroplated finishes. Also available in Chrome and Black.

• Built-in diverter that sends water to the bath spout or the shower, so you need only one mixer on the wall
• Paddle handle for easy control of temperature and flow with one hand
• Matching Ray 1 in-wall body in the box for the rough-in
• Single piece in-wall body with a wet-seal zone to help protect the wall behind it
• Ceramic disc cartridge in a brass housing that stays smooth for years
• DZR brass body with a brushed nickel electroplated finish and soft square styling
• 20 year warranty on the cartridge, body and handle, 5 years on PVD and electroplated finishes

Suits 150 to 500kPa water pressure and needs a bath spout and shower on the same wall. Ask your plumber to confirm the in-wall body fits your framing before you order.

Match it with a Sigma spout, shower and basin mixer in the same finish.

Construction material: DZR Brass
Operating mechanism: Ceramic disc with brass housing
Operating pressure: 150 to 500kPa
Lead free: Not Required
Country of origin: China
Warranty: 20 years - Mixer Cartridge, Body, Aerator, Hoses, Spout, Handle and Chrome Finish. 10 years - Handpieces and pull-down hoses. 5 years - PVD and Electroplate finishes. 1 year - Seals and Labour

• 1 x Wall mixer
• Fixing kit
• Installation instructions
