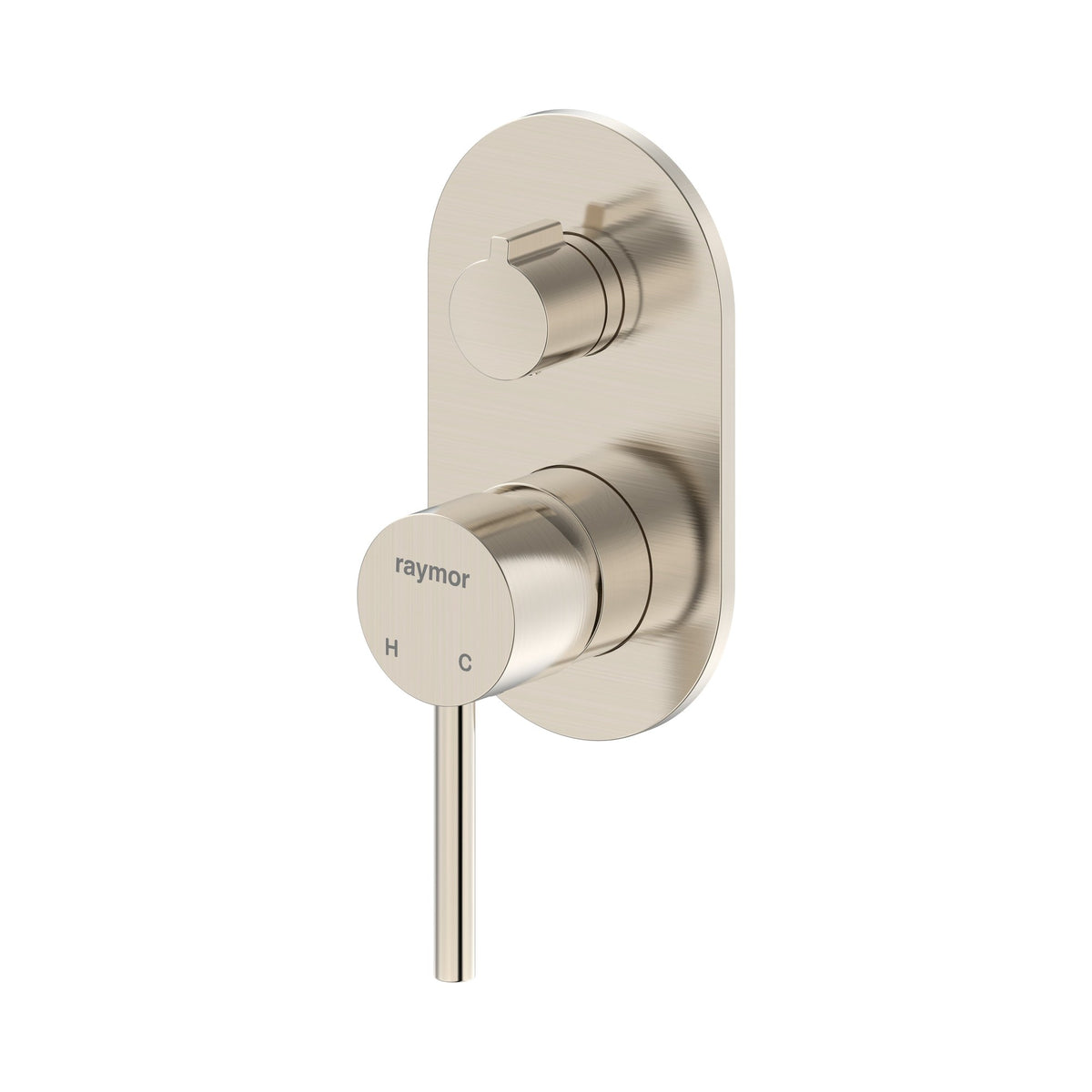

Raymor Projix Wall Mixer and Diverter Brushed Nickel

Bath and shower in the same spot and one mixer to run both? The Raymor Projix Wall Mixer with Diverter in Brushed Nickel runs two outlets from one lever: turn it on for the bath spout, flick the diverter and the water heads up to the shower. It's supplied with the Ray 1 inwall body with diverter, made as a single piece with a built-in wet seal zone, which is what your plumber sets into the wall before tiling. On the outside you get a pin lever handle and plate in a brushed nickel electroplated finish. Backed by a 20 year warranty on the body, cartridge and handle, with 5 years on electroplated finishes. Also available in Chrome and Black.

• Built-in diverter that swaps flow between the bath spout and the shower
• Includes the Ray 1 inwall body with diverter (part 304824) for rough-in
• Single piece inwall body with a wet seal area, which cuts the risk of leaks behind the tiles
• Pin lever handle for quick temperature and flow control
• Brushed nickel electroplated finish to match Projix spouts and showers
• 20 year warranty on the body, cartridge, spout, handle and chrome finish, 5 years on other electroplated finishes

Wall mounted, for 150 to 500kPa supply pressure. The inwall body needs to go in before the wall is closed, so ask your plumber about timing.

Finish the job with a Projix spout and shower in the same colour.

Operating pressure: 150 to 500kPa
Lead free: Not Required
Country of origin: China
Warranty: 20 years - Mixer Cartridge, Body, Aerator, Hoses, Spout, Handle and Chrome Finish. 10 years - Handpieces and pull-down hoses. 5 years - PVD and Electroplate finishes. 1 year - Seals and Labour

• 1 x Wall mixer
• Fixing kit
• Installation instructions
