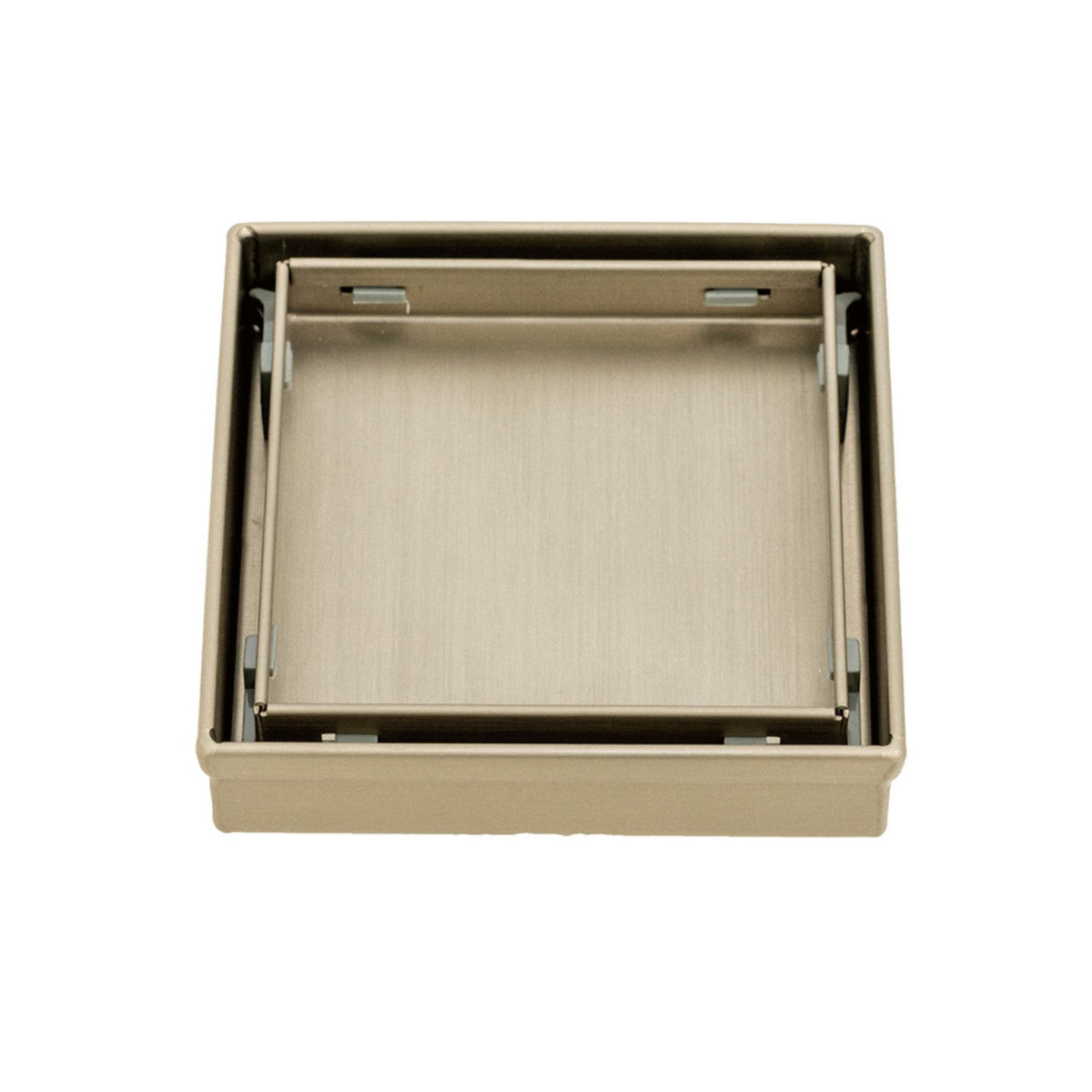

Radiant Tile Insert Square Floor Waste - Warm Brushed Nickel

Want the shower drain to disappear into the floor? A tile insert waste is how you do it. The Radiant Tile Insert Square Floor Waste in Warm Brushed Nickel takes a piece of your own tile in the 100mm x 100mm square insert, so the finished waste reads as part of the floor. It's made from 316 marine grade stainless steel, which copes with constant moisture year after year, and the Warm Brushed Nickel PVD coating keeps the exposed edges soft and even. Australian WaterMark approved, so it meets local standards. There's a 7 Year Warranty on it too: quality you can trust at a fair price, whether you're replacing an old grate or starting a new floor.

• Takes your own tile in the 100mm x 100mm square insert, so the waste blends into the floor instead of standing out
• 316 marine grade stainless steel construction that holds up to constant moisture in the wet area
• 12mm deep insert accommodates up to 10mm tile and adhesive, so it sits flush with your floor
• 38mm outlet variant fits a 50mm waste (puddle flange), giving you flexibility to match your existing plumbing
• 74mm outlet variant fits an 80mm waste for higher-flow setups
• Warm Brushed Nickel PVD finish for an even, hard-wearing surface
• Australian WaterMark approved for peace of mind on compliance
• 7 Year Warranty for long-term reassurance

One catch worth knowing: it's not recommended directly below unrestricted overhead rain showers due to the high volume of water delivered.

The puddle flange is not included, so check your outlet size and pick up the right one. Need a hand? Ask your plumber.

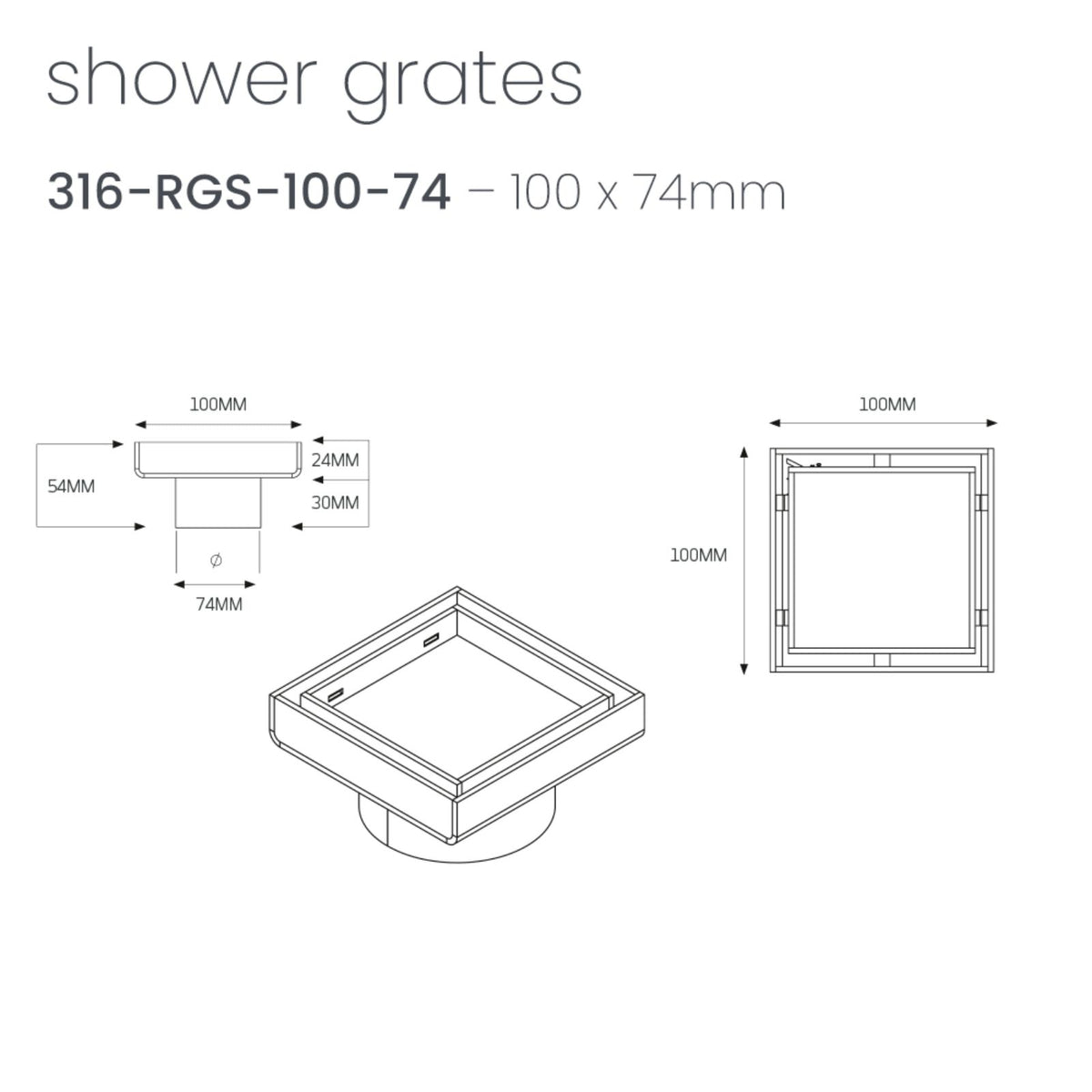

• Construction material: Stainless Steel
• Finish/coating: PVD
• Width: 100mm
• Length: 100mm
• Depth: 54mm
• Insert diametre: Ø 38mm / 74mm
• Waste pipe size: 80mm
• Warranty: 7 years

• Radiant Tile Insert Square Shower Grate - Brushed Nickel

Download the specification sheet below:
Radiant Square Tile Insert Shower Grate 100mm + 38mm Outlet Warm Brushed Nickel
Radiant Square Tile Insert Shower Grate 100mm + 74mm Outlet Warm Brushed Nickel
