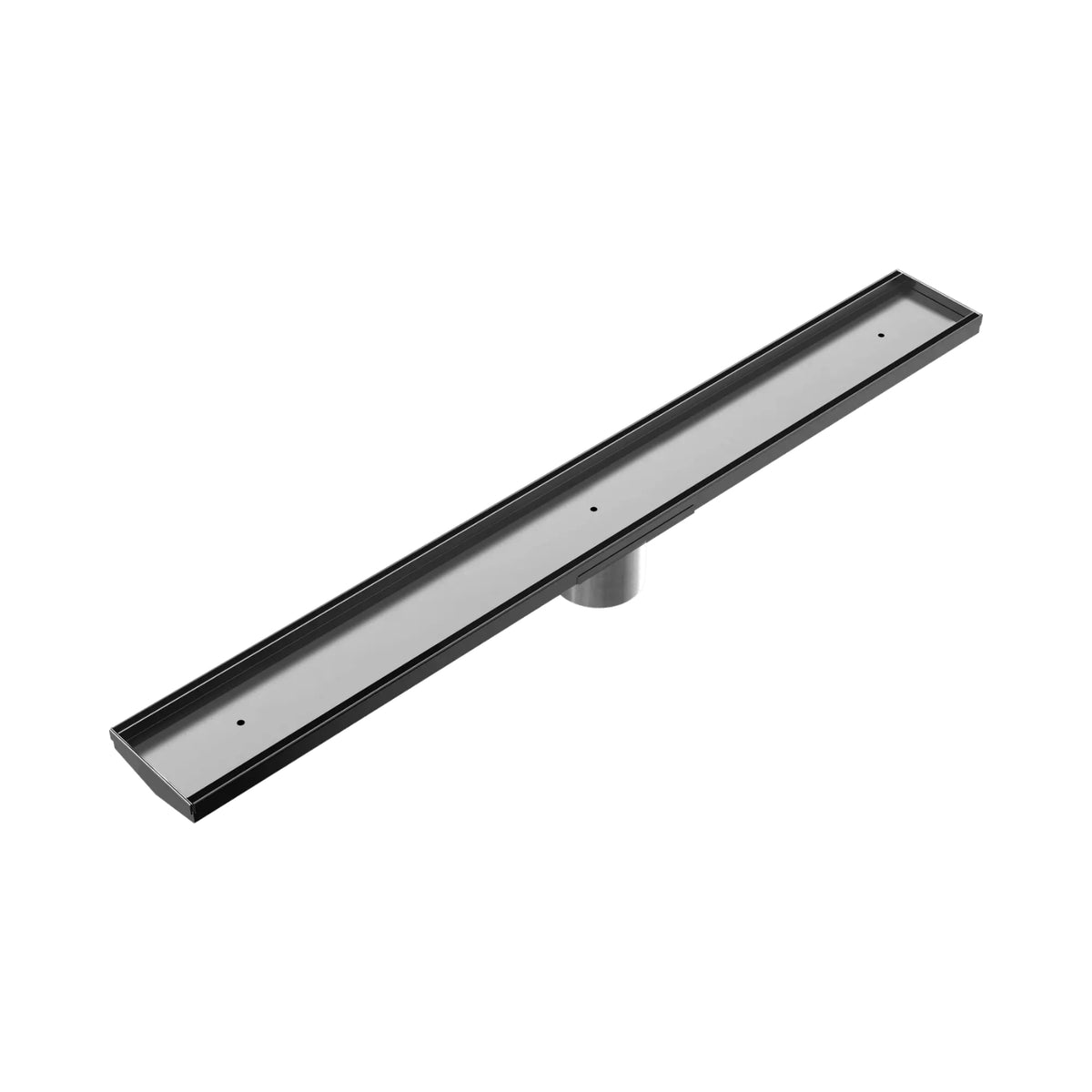

Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Gun Metal

Want the shower floor to read as one continuous surface? That's the job of the Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet in Gun Metal. Measuring 900 x 106mm with an 89mm outlet, it takes your own tiles into the channel, so the floor flows without a break. The V-channel profile speeds water toward the outlet for reliable drainage. The build is 304 stainless steel, so it holds up to daily wet-area use over the long haul. The outlet and grate come apart, which gives your plumber flexibility on the day. All Nero floor grates are watermark certified, and there's a 10 year warranty behind it. Quality you can trust at a fair price.

• Tile insert format holds your chosen flooring within the grate, for a subtle, uninterrupted look
• V-channel profile improves water flow speed and drainage efficiency
• Built from durable 304 stainless steel, so it lasts in a wet environment

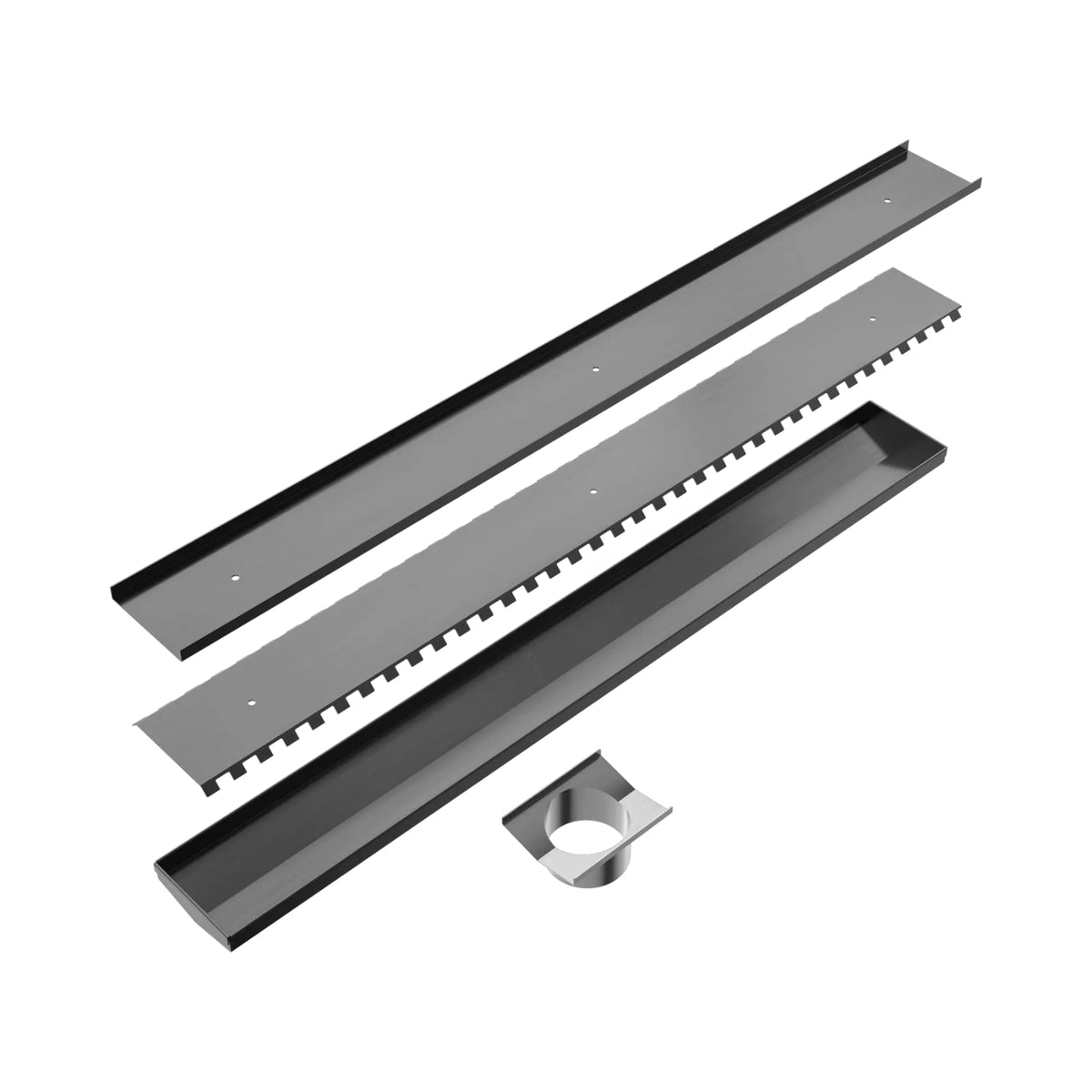

• Separate waste outlet and grate design gives you greater installation flexibility
• Fits a 100mm puddle flange for straightforward integration
• Suits tiles with a thickness of less than 10mm
• Available in 5 finishes to match your bathroom

Note: the outlet and grate are packed separately, and the hole saw isn't included. You can add a hole saw to your order from the drop-down box if you need one, or check with your plumber before ordering.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

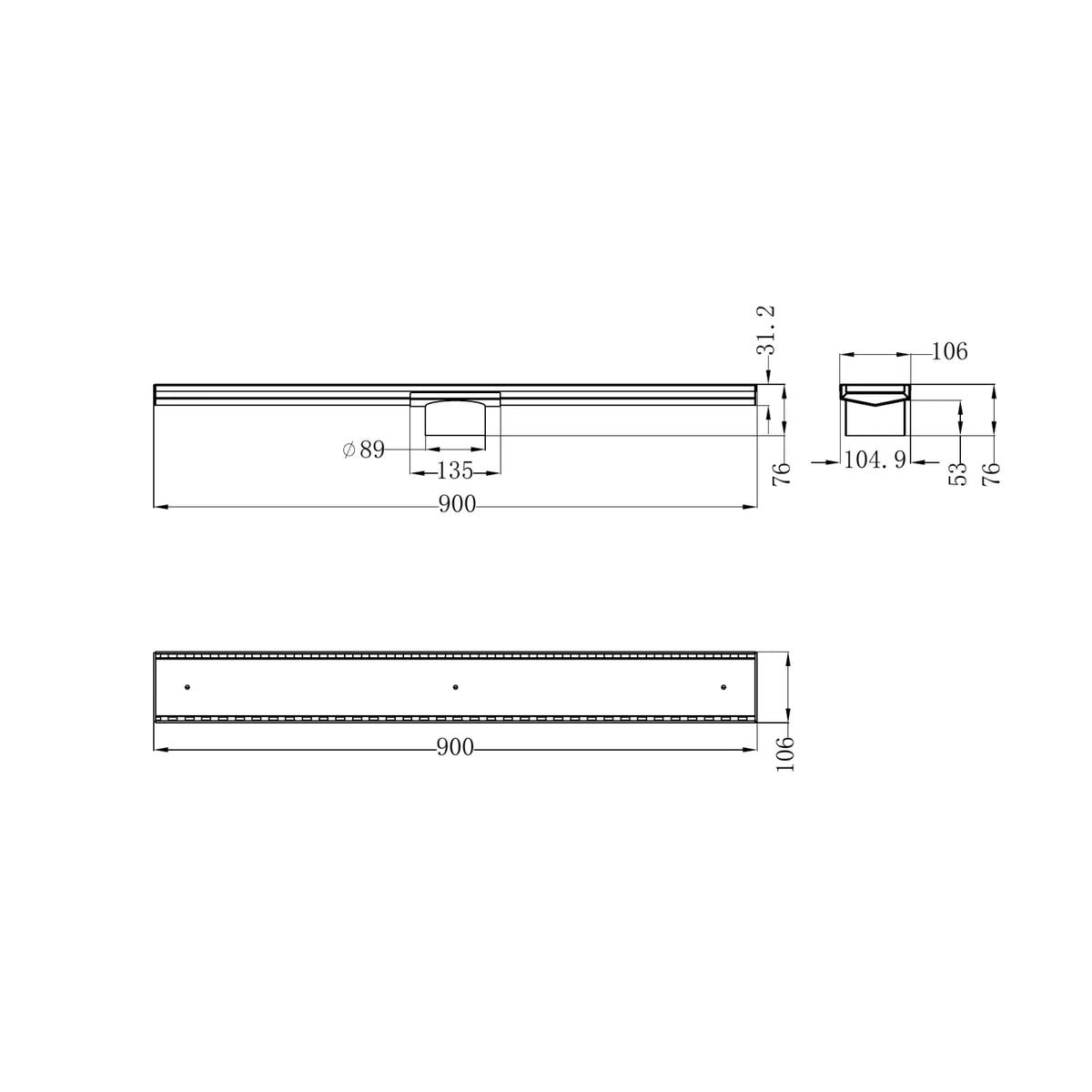

Overall length: 900mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

Download the specification sheet below:

Nero Tile Insert V Channel 900x106mm Floor Grate 90mm Outlet Gun Metal
