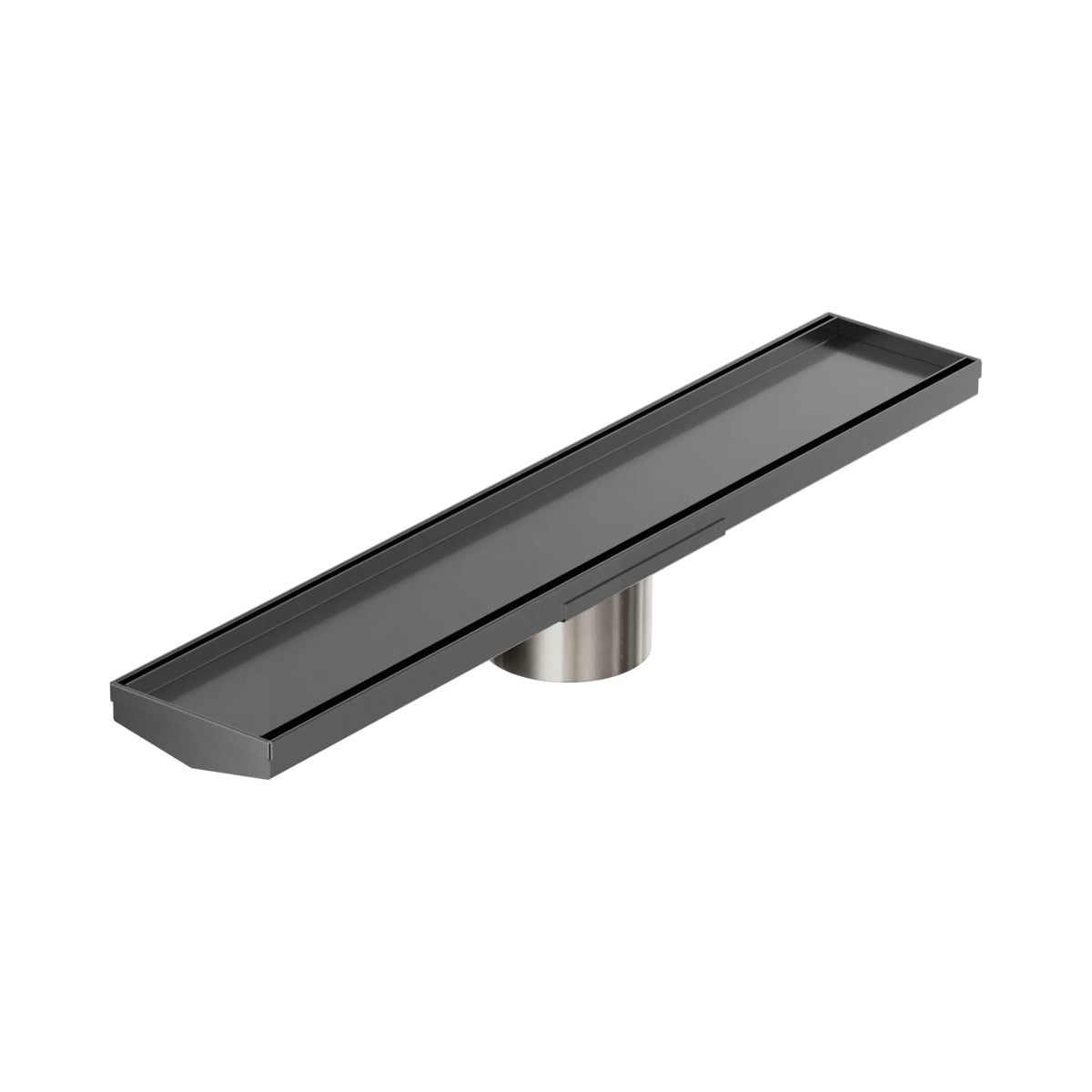

Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Gun Metal

Tiling a new bathroom floor, or pulling up an old one? The Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet in Gun Metal lets the floor do the talking. Your own tile sits inside the grate, so the drain steps back and blends into the tiling. It measures 600 x 106mm with a 90mm outlet, and it's made from 304 stainless steel to handle daily wet-area use. The V-channel profile helps water clear quickly. Because the waste outlet and grate are separate pieces, your plumber gets more room to move on the day. All Nero Floor grates are watermark certified, and there's a 10 year warranty behind it. Also available in 5 finishes.

• Tile insert grate takes your chosen tile for a near-invisible finish in the floor, provided the tile is less than 10mm thick
• V-channel profile speeds up water flow and drainage, handy in high-use showers
• Made from durable 304 stainless steel for long-lasting performance in wet areas
• Fits a 100mm puddle flange, making it straightforward to integrate into the floor
• Separate waste outlet and grate design gives your plumber more room to work
• Covered by a 10 year warranty for peace of mind

The outlet and grate are packed separately, and a holesaw isn't included: you can add one from the drop-down box if you need it. Check the tile thickness and outlet position with your plumber before ordering.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD

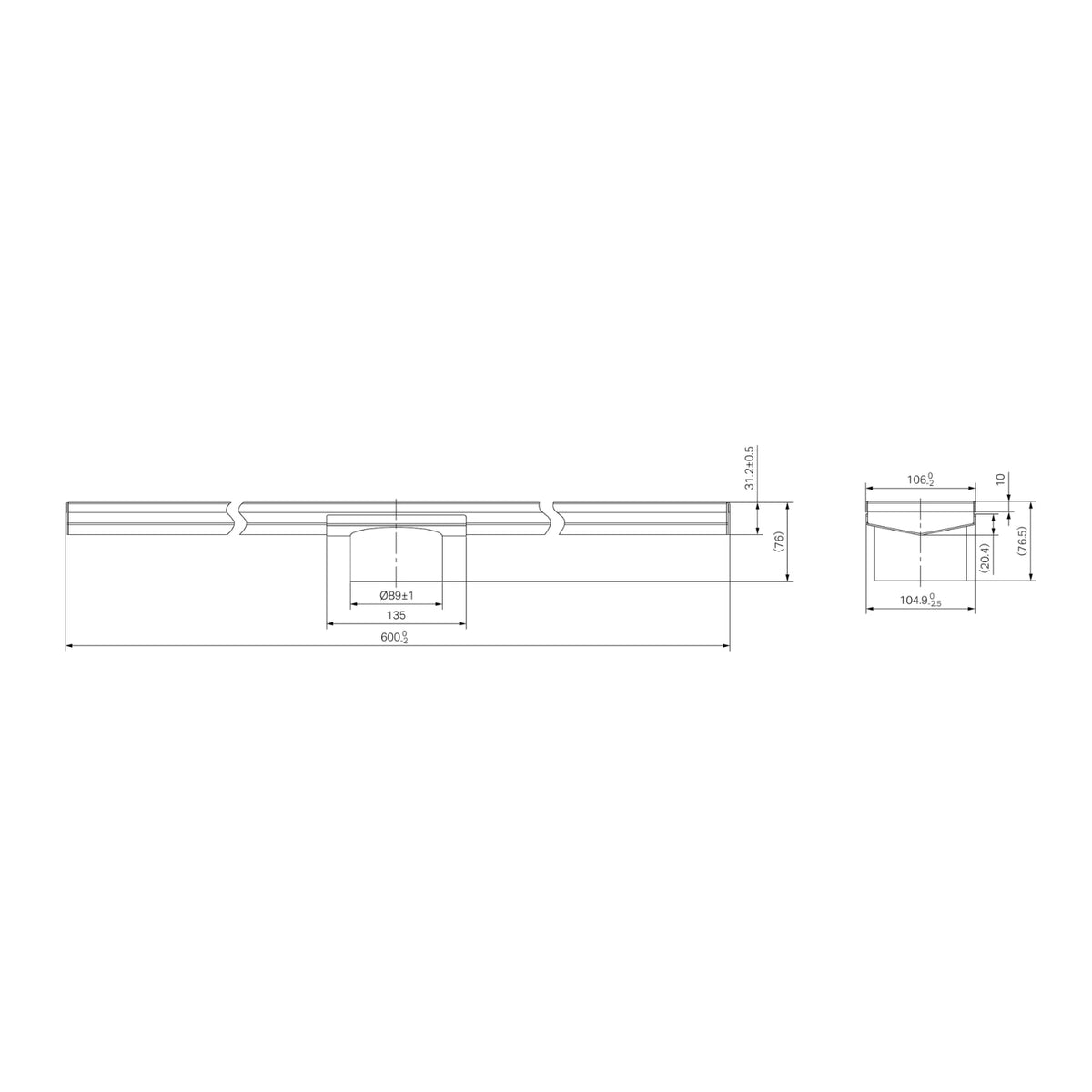

Overall length: 600mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

Download the specification sheet below:

Nero Tile Insert V Channel 600x106mm Floor Grate 90mm Outlet Gun Metal
