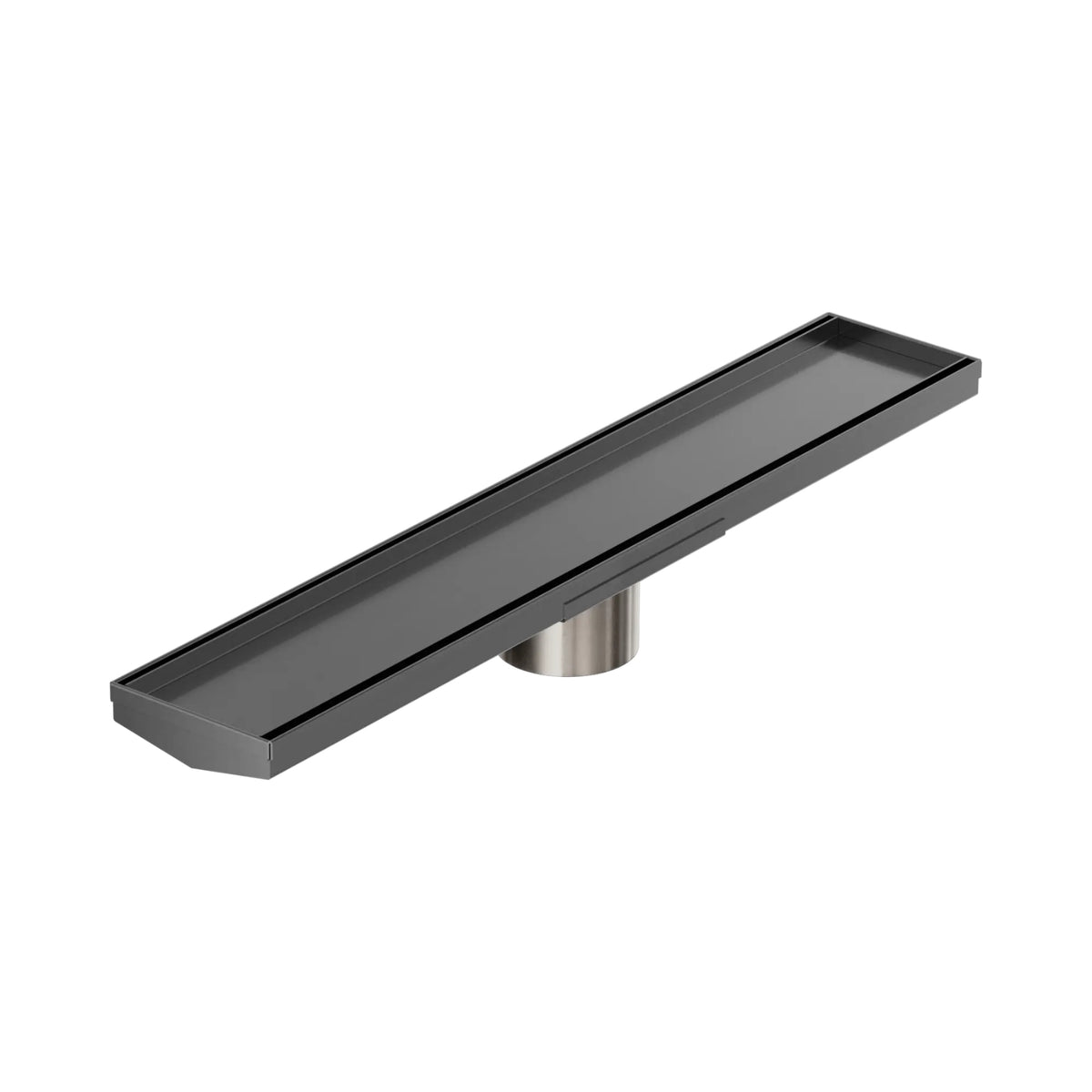

Nero Tile Insert V Channel 600x106mm Floor Grate 80mm Outlet Gun Metal

Want the drain to disappear into the floor? The Nero Tile Insert V Channel 600x106mm Floor Grate 80mm Outlet in Gun Metal sits flush in a tiled floor, and you drop your own tiles into the insert tray. The grate reads as part of the floor while still giving you a clear drainage point. The V channel profile pitches water toward the centre, so it clears quickly. It's 304 stainless steel with a gun metal finish that copes with a wet area and coordinates with matching tapware. At 600mm long with an 80mm outlet, it suits standard bathroom layouts. All Nero floor grates are watermark certified. Backed by a 10 year warranty: quality you can trust at a fair price.

• Made from 304 stainless steel, so it stands up to constant moisture and lasts the distance.
• Takes tiles under 10mm thick in the insert tray, for a floor that reads as one continuous surface.
• V channel profile speeds up water flow and improves drainage.
• Fits an 80mm puddle flange, making it straightforward for your plumber to connect.
• Outlet and grate are separate components, giving more flexibility during install.
• Available in 5 finishes to suit your bathroom.

The outlet and grate are packed separately, and a holesaw isn't included: you can add one from the drop-down box if you need it. Better to sort that now than halfway through the job.

Check your tile thickness and flange size before ordering, or ask your plumber.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 600mm
Overall width: 106mm
Required Hole Size: 80mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

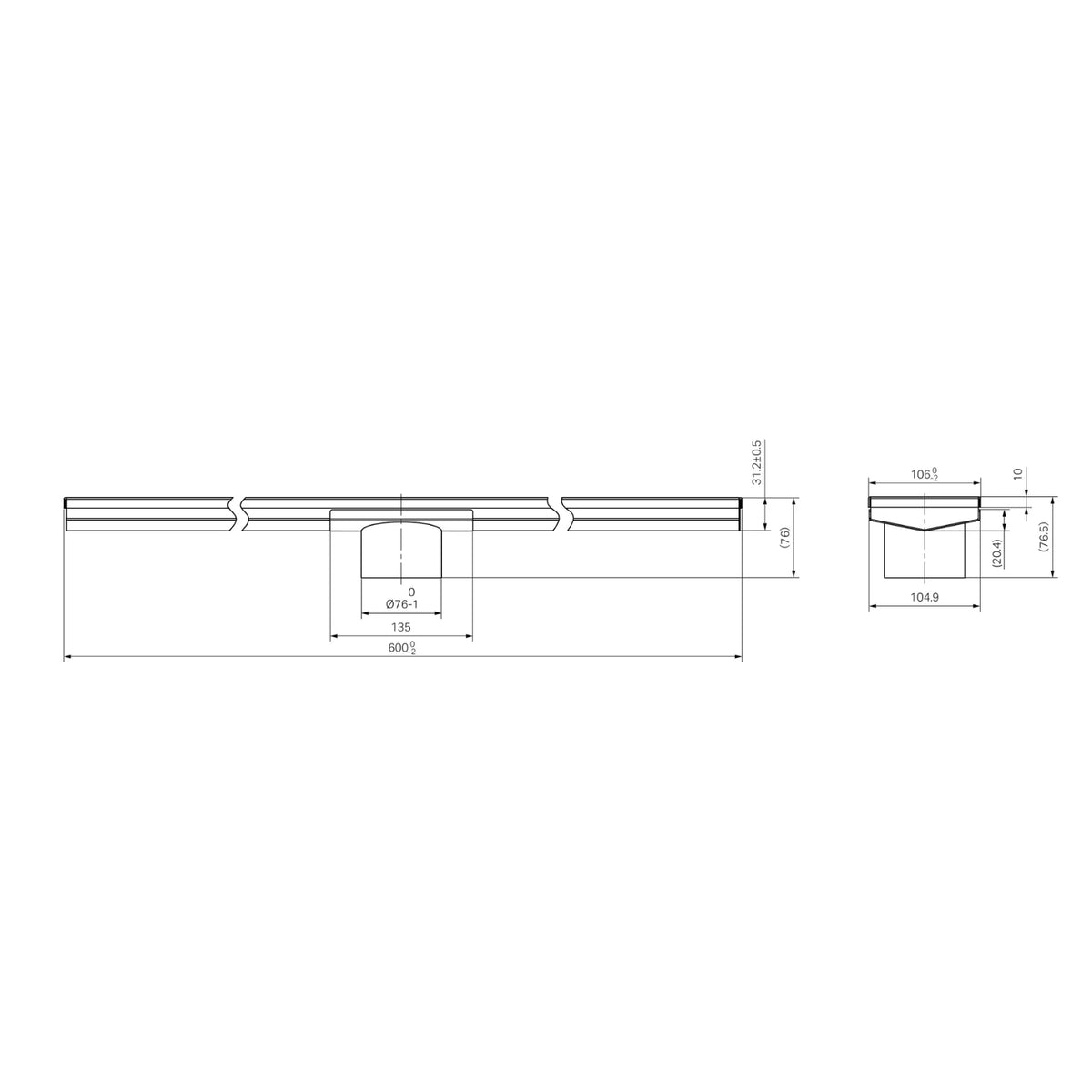

Download the specification sheet below:

Nero Tile Insert V Channel 600x106mm Floor Grate 80mm Outlet Gun Metal
