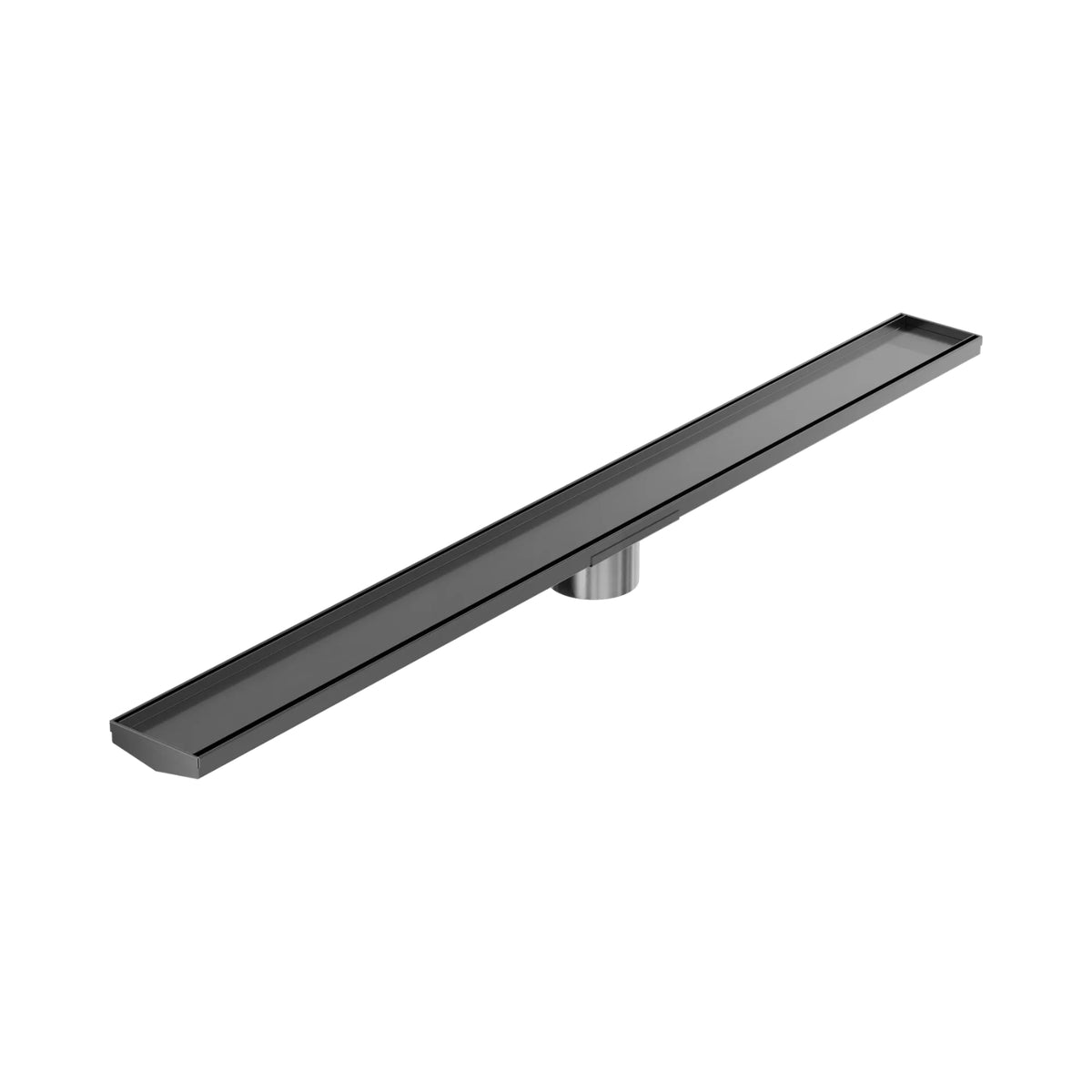

Nero Tile Insert V Channel 1200x106mm Floor Grate 90mm Outlet Gun Metal

Long, linear drainage line instead of a square waste in the middle of the shower? That's the job of the Nero Tile Insert V Channel 1200x106mm Floor Grate with 90mm Outlet in Gun Metal. It sits flush with your tiled floor, so it works whether you're upgrading a shower drain or starting a new bathroom from scratch. Your chosen tile drops straight into the insert for a clean, continuous finish. The V channel profile keeps water moving along the full 1200mm. It's built from 304 stainless steel, so a wet environment won't faze it, and WaterMark certified like all Nero floor grates. There's a 10 year warranty behind it too.

• Tile insert takes tiles under 10mm thick, giving you that near-continuous floor finish
• V channel profile speeds up water flow for better drainage across the 1200mm length
• Fits a 100mm puddle flange, so it integrates neatly with common waterproofing setups
• 304 stainless steel construction stands up to constant moisture for long-lasting performance
• Separate waste outlet and grate design gives your plumber more flexibility during install
• Also available in 5 finishes to match your bathroom

The outlet and grate are packed separately, and a holesaw isn't included: you can add one from the drop-down box if you need it. Have your plumber confirm the layout before installation.

Watermark certification: All Nero Floor grates are watermark certified
Construction material: 304 Stainless Steel
Finish/coating: PVD
Overall length: 1200mm
Overall width: 106mm
Required Hole Size: 90mm
Warranty: 10 Years

1 x Floor Grate, 1x Outlet, Installation Instructions

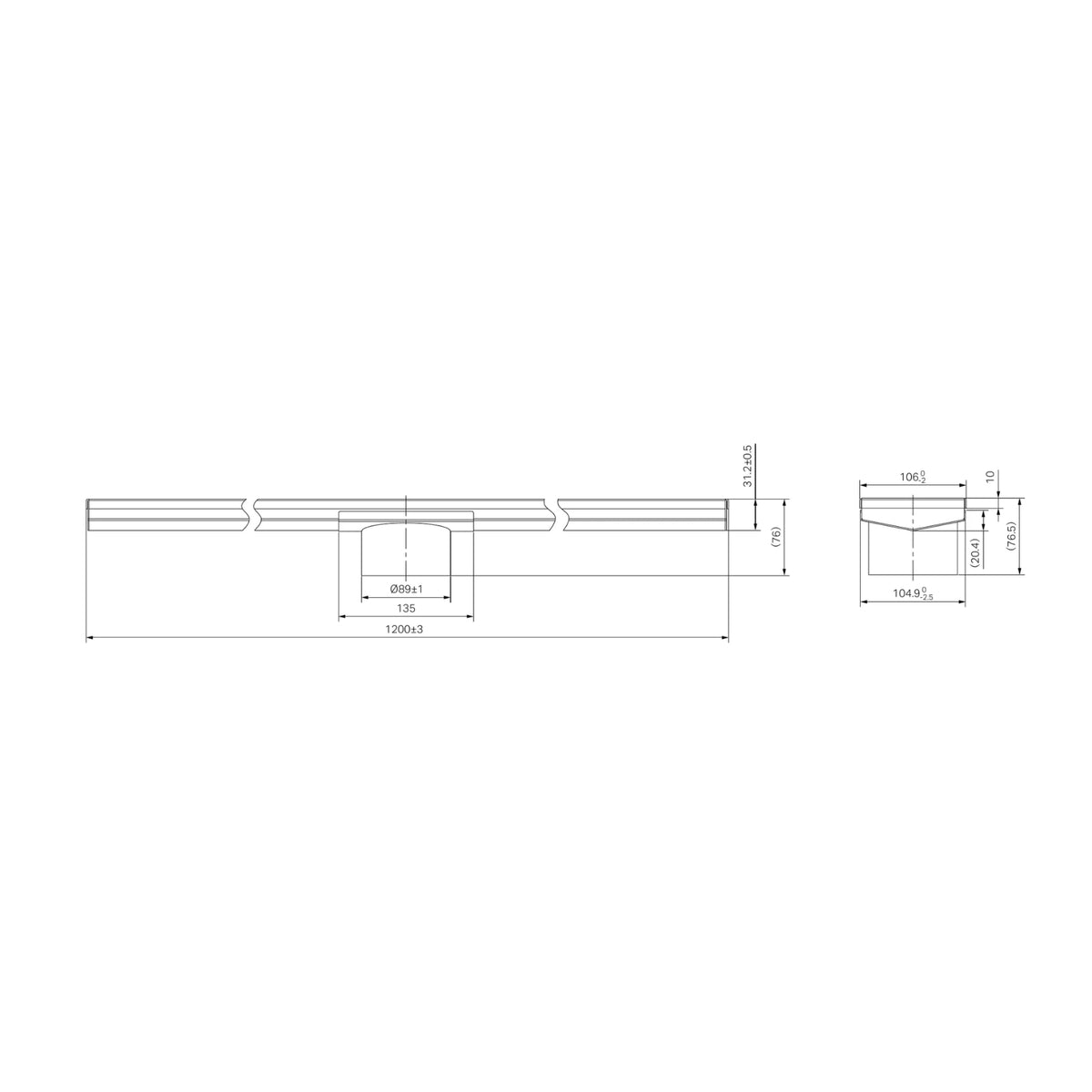

Download the specification sheet below:

Nero Tile Insert V Channel 1200x106mm Floor Grate 90mm Outlet Gun Metal

Nero offers up to 25 Year Residential Warranty as outlined below.

Nero Tapware is committed to providing high-quality products designed to meet the highest industry standards. Our warranty reflects our confidence in the durability and reliability of our products.

Premium Ranges

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Tapware:

• 25 years replacement cartridge only
• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Zen, Opal, York, Bianca, Mecca & Mecca Care Showers:

• 25 years replacement products or parts on all finishes
• 25 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 2 years replacement products or parts & labour

Zen, Opal, Kara, York, Bianca, Mecca & Mecca Care Bathroom Accessories:

•  25 years replacement products or parts on all finishes

Heated Towel Rails:

• 25 years replacement products or parts on all finishes
• 1 year on power transformer (replacement only)

Electronic Mixers / Taps & Push Taps:

• 25 years replacement products or parts on all finishes
• 2 years replacement products or parts & labour

Standard Ranges (if not detailed in table above)

Mixer Taps:

• 15 years replacement cartridge only
• 10 years replacement products or parts on all finishes
• 10 years on washing machine stops (replacement only)
• 1 year replacement products or parts & labour

Showers:

• 10 years replacement products or parts on all finishes
• 10 years on hand showers, shower heads, shower hoses replacement only (labour not included)
• 1 year replacement products or parts & labour

Bath Outlets:

• 10 years replacement products or parts only on all finishes

Bathroom Accessories:

• 10 years replacement products or parts only on all finishes

Other Accessories:

• 10 years on universal pop-up waste (replacement only)
• 10 years on bottle trap (replacement only)
• 10 years on glass hardware (replacement only)
• 10 years product replacement and 1 year labour on toilet push plate only
• 10 years product replacement and 1 year labour on cistern only
• 10 years on floor wastes (replacement only)

The warranty period commences from date of purchase or, for new buildings, date of handover. To make a warranty claim, proof of purchase, handover documentation for new homes or equivalent documentation must be supplied for warranty claims to be considered.

Nero also offer generous warranty periods for commercial installations. To view these warranty periods and for their full warranty document click here
