Raymor

Bath past its best and you don't want to rebuild the hob? The Raymor Projix Inset Bath 1525mm in White is a simple like for like swap. It's a tile flange bath, so it drops into the hob and your tiler runs the tiles over the flange on all four edges. At 1525mm long, 725mm wide and 380mm high it's a shallower bath that's easy to step into. The waste is at the end and there's no overflow, so keep the tap in sight while it fills. The plug and waste isn't supplied, so add one to your order. It's Australian made acrylic with a steel reinforced rim, and the warranty runs 15 years on the bath with 1 year on labour.

• Inset bath with a 4 edge tile bead, so it tiles into a hob on all sides
• 1525mm long, 725mm wide and 380mm high, which suits a narrower hob
• Lower 380mm height that is easier for kids and older family members to get in and out of
• End waste with no overflow, so match it to your existing floor waste
• Steel reinforced rim to keep the edge rigid once tiled
• Plug and waste not included, so buy one with the bath
• Made in Australia, with a 15 year warranty on the bath and 1 year on labour

Measure the inside of your hob before ordering. Ask your plumber to confirm the end waste position lines up.

Add a Raymor bath pop-up plug and waste and pair it with Projix bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1525mm
Width: 725mm
Height: 380 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Putting a stone top on the vanity and want a flush bench? The Raymor Projix Under Counter Basin 530mm x 350mm in White mounts beneath the benchtop, so the stone runs right up to the bowl and you can wipe water straight in. It's white vitreous china, 180mm deep, with no taphole, which means your mixer sits on the bench or comes off the wall. There's an overflow with a chrome plated grille, and the chrome pop-up waste with hair catcher connects to 32mm to 40mm pipes. Plug and waste, overflow cap, basin fixing kit, cut-out template and installation instructions are all included. Backed by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Under counter mounting, so the benchtop is flush and crumbs and water wipe straight into the bowl
• 530mm x 350mm rectangle, 180mm deep, which suits a standard vanity with a stone top
• No taphole, so you choose a bench mounted mixer or wall tapware
• White vitreous china that resists stains and cleans easily
• Overflow with chrome plated grille, which stops an overfilled bowl spilling
• Chrome pop-up waste with hair catcher for 32mm to 40mm plumbing
• Basin fixing kit and cut-out template in the box, with a 20 year warranty on the china

Under counter basins need the stone cut and polished to the template, so line up your stonemason and plumber before ordering.

Team it with a Raymor Projix wall basin set or bench mounted mixer, or see the Projix wall hung basin for a smaller room.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: No taphole, suits wall mounted tapware
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 7L
Length: 530mm
Width: 350mm
Height: 180 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Under Counter Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• 1 x Wall fixing kit
• 1 x Cut-out template
• Installation instructions

Want a basin that sits on the bench without hogging it? The Raymor Sigma Counter Top Basin 450mm x 320mm in White is a low, rounded square bowl that suits a compact vanity or a powder room. It's white vitreous china and only 135mm tall, so it won't crowd a mixer or a mirror above. There's one taphole for a basin mixer. This one has no overflow, which gives you a plain bowl with nothing to catch grime, but it does mean you shouldn't leave the tap running with the plug in. The basin comes with a pop-up plug and waste and installation instructions. Covered by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Counter top basin that sits on the vanity, so it only needs a waste hole cut in the bench
• 450mm x 320mm footprint at 135mm high, which suits a shallow bench or a small second bathroom
• White vitreous china with softly rounded corners that are easy to keep clean
• 1 taphole, so a basin mixer mounts straight onto the basin
• No overflow, for a plain bowl with no grille to collect gunk
• 7.59L bowl capacity, a useful size for the footprint
• Pop-up plug and waste and instructions in the box, with a 20 year warranty on the china

With no overflow, keep an eye on the tap when the plug is in. Check your bench has room for the mixer behind the basin, and ask your plumber if unsure.

Pair it with a Raymor basin mixer, or look at the Sigma inset and semi recessed basins in the same shape.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Non-overflow only
Plug and waste: Included
Bowl capacity: 7.59L
Length: 450mm
Width: 320mm
Height: 135 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Above Counter Basin
• 1 x Pop-up plug and waste
• Installation instructions

Want a freestanding bath but the bathroom's tight? The Raymor Alpha Back to Wall Freestanding Bath 1500mm in White gives you the freestanding look while sitting hard against the wall, so you don't lose floor space behind it and there's no gap to clean. A rear tile bead (10mm high, 8mm wide) lets your tiler check it into the wall and seal it if you want. It sits on its own adjustable self supporting feet with the plumbing through the floor. Size is 1500mm long, 800mm wide and 610mm high, with a centre waste and no overflow. The plug and waste is sold separately. Made in China from moulded acrylic, with a 10 year warranty on the bath and 1 year on labour.

• Back to wall freestanding, so you get the look without wasting floor behind the bath
• Rear tile bead of 10mm by 8mm, which lets you check it into the tiled wall for a sealed edge
• Adjustable self supporting feet, so your plumber can level it on a floor that isn't quite flat
• 1500mm long, 800mm wide, 610mm high, which suits a smaller bathroom or ensuite
• Centre waste with no overflow, so check the floor waste sits under the middle of the bath
• Plug and waste not included, so grab one with the bath
• 10 year warranty on the bath and 1 year on labour

Confirm the floor waste can be brought to the centre of the bath before you order. Ask your plumber about tiling it in or leaving it against the wall.

Add a Raymor bath pop-up plug and waste and match it with Alpha tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1500mm
Width: 800mm
Height: 610 mm
Waste location: Centre
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: China
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Back To Wall Bath
• Installation instructions

Old inset basin chipped or yellowed? The Raymor Edge II Inset Basin 400mm x 400mm in White drops into a cut-out with the rim resting on the bench, so it's the usual pick for replacing a basin in a laminate or stone vanity top. Made from white vitreous china with the straight, angled profile of the Edge II range, it measures 163mm deep. There's one taphole for a basin mixer, and an overflow with a chrome ring stops an overfilled bowl spilling onto the floor. The basin arrives with a pop-up plug and waste, the chrome overflow ring and installation instructions. Backed by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Inset design that drops into a cut-out with the rim on the bench, so it suits most existing vanity tops
• 400mm x 400mm square footprint, which fits a standard depth vanity with room for a mixer behind
• White vitreous china that resists stains and scratches from daily use
• 1 taphole, so your basin mixer mounts straight onto the basin
• Overflow with chrome ring, which drains the bowl if someone leaves the tap running
• 7.59L bowl capacity, plenty for washing up without splashing
• Pop-up plug and waste and instructions included, backed by a 20 year warranty on the china

Measure your existing cut-out before ordering, as a new basin may need the hole trimmed or a new top. Ask your plumber or joiner if you're unsure.

Team it with a Raymor basin mixer, or choose the Edge II counter top basin if your bench has no cut-out.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 7.59L
Length: 400mm
Width: 400mm
Height: 163 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Inset Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• Installation instructions

Got a longer hob to fill? The Raymor Aruba Rectangle Inset Bath 1665mm in White gives you extra stretch for a taller bather without moving to a freestanding. It drops into a hob as a tile flange bath, and your tiler beds the tiles over the flange on all four edges for a neat, sealed finish. It measures 1665mm long, 755mm wide and 420mm high. The waste is at the end and there's no overflow, so keep an eye on the tap while it fills. You'll need to buy the plug and waste separately. It's Australian made acrylic with a moulded headrest, lumbar support and a steel reinforced rim. The bath carries a 15 year warranty, with 1 year on labour.

• 1665mm long, 755mm wide, 420mm high, which gives a taller bather room to stretch out
• 4 edge tile bead for a hob install, so the tiles run over the flange and seal the edge
• End waste with no overflow, so line it up with your existing floor waste where you can
• Lumbar support and a moulded headrest built into the shape for a comfortable lean back
• Steel reinforced rim, which stops the edge flexing once it's tiled in
• Plug and waste not included, so add one to the order
• Australian made, with a 15 year warranty on the bath and 1 year on labour

Check the hob length and door access before you commit to the longer size. Your plumber can confirm the end waste position works with your floor.

Pair it with a Raymor bath pop-up plug and waste and Projix bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1665mm
Width: 755mm
Height: 420 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Second bathroom, small footprint, still want freestanding? The Raymor Winton Freestanding Bath 1500mm with Integrated Overflow in White is 1500mm long, 800mm wide and 530mm high, so it gives you the look without taking over the room. It stands on its own adjustable self supporting feet, with the waste and tapware through the floor and no hob to build. The overflow is built into the bath, which means it needs a plug and waste made for an overflow, and that's bought separately. Waste position is the centre. It's moulded acrylic made in Australia, and it's covered by a 10 year warranty on the bath and 1 year on labour.

• 1500mm long, 800mm wide and 530mm high, so it fits a smaller room but still runs deep
• Built in overflow that handles an overfilled bath before it reaches the floor
• Adjustable self supporting feet, so it sits level even if your floor doesn't
• Centre waste position for plumbing through the floor
• Plug and waste sold separately, and it has to be an overflow compatible waste
• Australian made moulded acrylic
• Bath warranted for 10 years, labour for 1 year

Check the floor waste can be brought to the centre of the bath. Ask your plumber to confirm the overflow waste before you order.

Pair it with a Raymor overflow compatible plug and waste and Winton bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1500mm
Width: 800mm
Height: 530 mm
Waste location: Centre
Overflow: Integrated overflow
Plug and waste: Not included
Country of origin: Australia
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Freestanding Bath
• Installation instructions

Narrow vanity leaving you short on bench space? The Raymor Edge II Semi Recessed Basin 400mm x 400mm in White sits half in the bench with the bowl standing proud of the front edge, so you get a full size basin on a shallow cabinet. It's white vitreous china with the clean angled look of the Edge II range, and it stands 163mm high. A single taphole takes a basin mixer, and the overflow with chrome ring gives you a safety net if the plug is left in. Basin, pop-up plug and waste, chrome overflow ring and installation instructions all come in the box. Warranty is 20 years on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Semi recessed style that projects past the front of the bench, so a narrow vanity still gets a full bowl
• 400mm x 400mm with a 163mm height, which keeps the profile compact in a small bathroom
• White vitreous china that shrugs off stains and is easy to wipe over
• 1 taphole for a basin mounted mixer, so you don't need wall plumbing
• Overflow with chrome ring included, which stops an overflow ruining the cabinet below
• 7.28L bowl capacity, a practical size for a family ensuite or second bathroom
• Pop-up plug and waste in the box, covered by a 20 year warranty on the china

Check your bench depth and the cut-out shape before ordering, since semi recessed basins need the front edge cut away. Your plumber or joiner can confirm the fit.

Finish it with a Raymor basin mixer, or see the Edge II inset basin if your vanity is deep enough.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 7.28L
Length: 400mm
Width: 400mm
Height: 163 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Semi Recessed Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• Installation instructions

Replacing a wide basin in a modern vanity? The Raymor Projix Amethyst II Semi Inset Basin 540mm x 460mm in White drops into a bench cut-out with the rim on top, which keeps the bowl low and the lines straight. It's white vitreous china with a 4.6L bowl and stands 165mm high. One taphole takes a basin mixer, and the overflow gives you a safety margin if the plug gets left in. A pop-up plug and waste comes in the box. Covered by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour. If your existing cut-out is close to this size, it can be a quick swap without touching the benchtop.

• 540mm x 460mm semi inset basin that sits in a cut-out with the rim on the bench
• White vitreous china with a square, low profile at 165mm high
• 1 taphole for a basin mixer, so the install stays simple
• Overflow included, which drains the bowl before it spills onto the floor
• 4.6L bowl capacity, a sensible size for everyday use
• Pop-up plug and waste included, so there's nothing else to order
• 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, 1 year on seals and labour

Compare your bench cut-out to the basin size before ordering, and ask your plumber about the waste position.

Pair it with a Raymor Projix basin mixer, or look at the Projix under counter basin if you're fitting a new stone top.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 4.6L
Length: 540mm
Width: 460mm
Height: 165 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Inset Basin
• 1 x Pop-up plug and waste

Tight space and no cabinet to work with? The Raymor Lawson Wall Hung Basin 505mm x 415mm in White fixes straight to the wall with the supplied bracket, so there's nothing on the floor to clean around. It's a traditional arch shape in white vitreous china, 190mm deep with a 4.5L bowl. One taphole takes a basin mixer. The overflow has a chrome plated grille, and the chrome pop-up waste with hair catcher connects to 32mm to 40mm plumbing. Plug and waste, overflow cap, wall fixing kit and installation instructions are all included. Backed by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour. Get your plumber to check the wall fixings before you buy.

• Wall hung basin with the fixing kit in the box, so no vanity is needed
• 505mm x 415mm arch shape, which suits an older style home or a plain laundry
• White vitreous china, 190mm deep, holding 4.5L
• 1 taphole for a basin mixer, so the tap mounts on the basin
• Overflow with chrome plated grille, which stops water going over the edge
• Chrome pop-up waste with hair catcher for 32mm to 40mm pipes, so it suits most existing plumbing
• 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, 1 year on seals and labour

Your wall needs solid fixing points and the plumbing coming through it, so ask your plumber before ordering.

Finish it with a Raymor basin mixer, or look at the Lawson inset basin if you have a vanity.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 4.5L
Length: 505mm
Width: 415mm
Height: 190 mm
Shape: Arch
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Wall Hung Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• 1 x Wall fixing kit
• Installation instructions

After a big bowl for a busy family bathroom? The Raymor Alpha Semi Inset Basin 600mm x 460mm in White drops into a cut-out with the rim on the bench and gives you a 10L bowl, so there's room to wash hair or soak a shirt. It's white vitreous china with soft curves, 160mm high. One taphole takes a basin mixer. The overflow has a chrome plated grille, and the chrome pop-up waste with hair catcher suits 32mm to 40mm pipes. You get the plug and waste, overflow cap, cut-out template and installation instructions in the box. Backed by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• 600mm x 460mm semi inset basin with a 10L bowl, which is the biggest in this Raymor lineup
• Rim sits on the bench, so it suits a stone or laminate top with a cut-out
• White vitreous china with rounded lines that are easy to keep clean
• 1 taphole for a basin mixer, so the tap stays on the basin
• Overflow with chrome plated grille, which protects the vanity if the tap is left on
• Chrome pop-up waste with hair catcher for 32mm to 40mm plumbing
• Cut-out template included, with a 20 year warranty on the china

Check your vanity is at least 600mm wide and use the template to confirm the cut-out. Ask your plumber if you're unsure about the waste.

Match it with a Raymor Alpha basin mixer, or choose the Alpha 480mm basin for a smaller vanity.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 10L
Length: 600mm
Width: 460mm
Height: 160 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Inset Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• 1 x Cut-out template
• Installation instructions

Vanity too shallow for the basin you want? The Raymor Lawson Semi Recessed Basin 500mm x 440mm in White sits half in the bench with the bowl standing proud of the front, which is how you fit a full oval basin onto a narrow cabinet. It's white vitreous china, 205mm deep, with a 5.2L bowl. There's one taphole for a basin mixer. The overflow has a chrome plated grille, and the chrome pop-up waste with hair catcher fits 32mm to 40mm plumbing. Cut-out template, plug and waste, overflow cap and installation instructions all come in the box. Covered by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Semi recessed oval basin that overhangs the bench front, so a narrow vanity gets a full bowl
• 500mm x 440mm, 205mm deep, with a 5.2L bowl
• White vitreous china that stands up to daily scrubbing
• 1 taphole, so a basin mixer mounts on the basin
• Overflow with chrome plated grille, which drains the bowl if the plug is left in
• Chrome pop-up waste with hair catcher, compatible with 32mm to 40mm waste pipes
• Cut-out template and instructions in the box, backed by a 20 year warranty on the china

The front edge of the bench needs cutting for a semi recessed basin, so check with your joiner or plumber and use the supplied template.

Pair it with a Raymor basin mixer, or see the Lawson inset basin if your vanity has the depth.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 5.2L
Length: 500mm
Width: 440mm
Height: 205 mm
Shape: Oval
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Semi Recessed Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• 1 x Cut-out template
• Installation instructions

Room for a proper freestanding bath? The Raymor Alpha Freestanding Bath 1700mm in White is the full length version, at 1700mm long, 800mm wide and 600mm high. Being freestanding, it rests on adjustable self supporting feet with the plumbing through the floor, so your plumber levels it on site and there's no hob to build or tile. The waste is in the centre, and there's no overflow. Plug and waste is a separate purchase, so add one to your order. It's made in China from moulded acrylic and comes with installation instructions in the box. Covered by a 10 year warranty on the bath and 1 year on labour.

• 1700mm long, 800mm wide and 600mm high for a full stretch out
• Adjustable self supporting feet, which take up uneven floors without packing
• Freestanding, so it needs the waste and tapware to come through the floor
• Centre waste position and no overflow
• Plug and waste sold separately
• Moulded acrylic construction that holds heat well and cleans easily
• 10 year warranty on the bath, 1 year on labour

At 1700mm, check the bath fits through your door and around corners on the way in. Ask your plumber to confirm the floor waste position.

Add a Raymor bath pop-up plug and waste and Alpha floor mounted tapware to finish it.

Specifications

Construction material: Acrylic
Colour: White
Length: 1700mm
Width: 800mm
Height: 600 mm
Waste location: Centre
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: China
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Freestanding Bath
• Installation instructions

After a no fuss bath for the main bathroom? The Raymor Recline II Rectangle Inset Bath 1650mm in White is the longer of the two Recline sizes, at 1650mm long, 715mm wide and 380mm high. Being an inset tile flange bath, it drops into a hob and your tiler finishes the tiles over the flange on all four edges. Moulded armrests give you somewhere to rest your elbows, and the slip resistant base pattern makes stepping in a bit safer. The waste sits at the end and there's no overflow. You buy the plug and waste separately. Australian made acrylic with a steel reinforced rim, backed by a 15 year warranty on the bath and 1 year on labour.

• 1650mm long, 715mm wide and 380mm high, so a taller adult can stretch out
• 4 edge tile bead, which means it tiles into the hob on all four sides
• Slip resistant moulded base pattern for better grip underfoot
• Moulded armrests built into the acrylic for a comfortable lean
• End waste position and no overflow, so keep an eye on the fill
• Steel reinforced rim to keep the edge solid in the hob
• Plug and waste sold separately. Made in Australia with a 15 year warranty on the bath and 1 year on labour

Check your hob is long enough and that a 1650mm bath will get through the door. Ask your plumber about the end waste.

Finish it with a Raymor bath pop-up plug and waste and a Projix bath spout and wall mixer.

Specifications

Construction material: Acrylic
Colour: White
Length: 1650mm
Width: 715mm
Height: 380 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Prefer a squarer look in an inset bath? The Raymor Sigma Inset Bath 1525mm in White has rounded square lines rather than the usual soft oval. It's a tile flange bath, so it sits in a hob and tiles in on all four edges, which suits a straight replacement or a new hob build. Size is 1525mm long, 760mm wide and 450mm high, so it's a touch deeper than many baths this length. The waste is at the end and there's no overflow, so don't leave it filling unattended. Plug and waste is not in the box, so add one. Acrylic construction with a steel reinforced rim, backed by a 15 year warranty on the bath and 1 year on labour.

• Rounded square shape that suits a squarer basin and toilet without looking boxy
• 1525mm long, 760mm wide and 450mm high, which gives a deeper soak than a 380mm bath
• Inset with a 4 edge tile bead, so it drops into a hob and tiles in properly
• End waste with no overflow, so check your floor waste lines up
• Steel reinforced rim that keeps the bath rigid in the hob
• Plug and waste sold separately, so order one with the bath
• Warranty is 15 years on the bath and 1 year on labour

At 450mm high, check your hob height suits before you order. Ask your plumber about the end waste position.

Add a Raymor bath pop-up plug and waste and match it with Sigma tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1525mm
Width: 760mm
Height: 450 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Basin cracked, stained or just dated? The Raymor Edge II Counter Top Basin 400mm x 400mm in White is a tidy square bowl that sits on top of the vanity, so it suits a straight swap on an existing bench or a fresh fit-out. It's white vitreous china with crisp, angled lines and stands 163mm tall. One taphole takes a basin mixer, and there's an overflow with a chrome ring so a forgotten plug won't flood the bench. In the box you get the basin, a pop-up plug and waste, the chrome overflow ring and installation instructions. Covered by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• 400mm x 400mm square counter top basin that sits on the bench, so no cut-out beyond the waste hole is needed
• White vitreous china with sharp angled edges that wipe clean and hide water marks
• 1 taphole for a basin mixer, which keeps the tap on the basin rather than the wall
• Overflow included with a chrome ring, so an overfilled bowl drains before it spills
• 7.81L bowl capacity, which is generous for a 400mm footprint
• Pop-up plug and waste, chrome overflow ring and instructions in the box
• 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, 1 year on seals and labour

Allow for the 163mm height when picking your basin mixer, and check the waste position on your bench. Ask your plumber if you're unsure.

Pair it with a Raymor basin mixer, or look at the Edge II inset and semi recessed basins if you'd rather the bowl sat in the bench.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 7.81L
Length: 400mm
Width: 400mm
Height: 163 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Above Counter Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• Installation instructions

Replacing a basin in a small vanity top? The Raymor Sigma Inset Basin 450mm x 320mm in White drops into a cut-out with its rim sitting on the bench, which keeps the bowl low and the top easy to wipe down. It's white vitreous china with a rounded square shape and measures 143mm deep. One taphole takes a basin mixer. There's no overflow on this model, so the bowl stays plain, but don't walk away with the plug in and the tap on. You get the basin, a pop-up plug and waste and installation instructions in the box. Backed by a 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Inset basin with the rim on the bench, so it suits a standard cut-out in laminate or stone
• 450mm x 320mm size, which fits a narrow vanity where a bigger bowl won't
• 143mm deep bowl in white vitreous china that resists staining
• 1 taphole for a basin mixer, so no wall tapware is needed
• No overflow, which means one less thing to clean around
• Pop-up plug and waste and instructions included
• 20 year warranty on the vitreous china, 5 years on the plug and waste and finishes, 1 year on seals and labour

Measure your current cut-out against the basin before you order, and ask your plumber or joiner if the hole needs adjusting.

Match it with a Raymor basin mixer, or see the Sigma counter top basin if your bench has no cut-out.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Non-overflow only
Plug and waste: Included
Length: 450mm
Width: 320mm
Height: 143 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Inset Basin
• 1 x Pop-up plug and waste
• Installation instructions

Shallow vanity but you still want a proper bowl? The Raymor Sigma Semi Recessed Basin 450mm x 350mm in White sits half in the bench with the bowl overhanging the front edge, which is the trick for getting a decent basin onto a narrow cabinet. It's white vitreous china in a soft rounded square, 153mm high. A single taphole suits a basin mixer, and there's an overflow with a chrome ring so an overfilled bowl drains rather than spilling. Basin, pop-up plug and waste, chrome overflow ring and installation instructions are all in the box. Warranty runs 20 years on the vitreous china, 5 years on the plug and waste and finishes, and 1 year on seals and labour.

• Semi recessed basin that overhangs the front of the vanity, so a narrow bench gets a full bowl
• 450mm x 350mm, 153mm high, which keeps a low profile in a tight ensuite
• White vitreous china with rounded corners that are simple to keep clean
• 1 taphole, so your basin mixer mounts on the basin
• Overflow with chrome ring, which protects the cabinet if the tap is left running
• 8.38L bowl capacity, the biggest bowl in the Sigma range
• Pop-up plug and waste and instructions included, with a 20 year warranty on the china

Check the front of your bench can be cut for a semi recessed basin, and confirm the cabinet depth. Ask your plumber or joiner if unsure.

Add a Raymor basin mixer, or look at the Sigma wall hung basin if you'd rather skip the vanity altogether.

Specifications

Construction material: Vitreous China
Colour: White
Tap holes: One taphole, suits a basin mixer
Overflow: Overflow included
Plug and waste: Included
Bowl capacity: 8.38L
Length: 450mm
Width: 350mm
Height: 153 mm
Shape: Rectangle
Country of origin: China
Warranty: 20 years vitreous china. 5 years plug and waste, overflow ring, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Semi Recessed Basin
• 1 x Pop-up plug and waste
• 1 x Chrome overflow ring
• Installation instructions

Family bath copped a beating? The Raymor Recline II Rectangle Inset Bath 1510mm in White is a sensible replacement for the kids' bathroom. It's a tile flange bath that sits in a hob and tiles in on all four edges, so it goes back into the space you already have. It measures 1510mm long, 715mm wide and 380mm high, with moulded armrests and a slip resistant base pattern that helps on the way in and out. The waste is at the end and there's no overflow. Plug and waste isn't included, so add one to your order. It's Australian made acrylic with a steel reinforced rim, and you get 15 years warranty on the bath plus 1 year on labour.

• Inset design with a 4 edge tile bead, so it drops into a hob and tiles in all round
• 1510mm long, 715mm wide and 380mm high, which suits a compact family bathroom
• Moulded slip resistant base for surer footing with kids and wet feet
• Moulded armrests so you can sit back comfortably
• End waste with no overflow, so line it up with your existing floor waste
• Steel reinforced rim that holds the shape under the tiles
• Plug and waste not included, so buy one with the bath. 15 year warranty on the bath, 1 year on labour

Measure your hob opening and confirm the end waste position with your plumber before ordering.

Add a Raymor bath pop-up plug and waste and Edge II bath tapware to finish the job.

Specifications

Construction material: Acrylic
Colour: White
Length: 1510mm
Width: 715mm
Height: 380 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Planning a tiled hob with the bath rim on display? The Raymor Winton Island Bath 1700mm Centre Waste in White is built for exactly that. It's an island bath, so it sets into a hob on all four sides with the rim exposed, and you can tile the hob in whatever suits the room. Size is 1700mm long, 800mm wide and 500mm high, which is wide and deep enough for a proper soak. The waste is in the centre of the bath, so the floor waste needs to sit under the middle. No overflow, so don't wander off while it fills. Plug and waste is bought separately. It's Australian made acrylic with a steel reinforced rim, and the warranty is 10 years on the bath and 1 year on labour.

• Island bath for a hob on all four sides, with the rim left showing
• 1700mm long, 800mm wide and 500mm high, which gives real width and depth
• Centre waste, so plan the floor waste under the middle of the hob
• No overflow, which means a clean bath interior and no grille to scrub
• Steel reinforced rim that sits firm on the hob without flexing
• Plug and waste sold separately, so add one to the order
• Made in Australia with a 10 year warranty on the bath and 1 year on labour

Have the hob framed to the bath's outside size and confirm the centre waste with your plumber before the slab or floor is cut.

Add a Raymor bath pop-up plug and waste and Winton bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1700mm
Width: 800mm
Height: 500 mm
Waste location: Centre
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Island Bath
• Installation instructions

Need a longer inset bath with a bit more depth? The Raymor Sigma Inset Bath 1675mm in White runs 1675mm long, 760mm wide and 450mm high, so a taller person can lie back and still be covered. As a tile flange bath, it drops into a hob and your tiler beds the tiles over the flange on all four edges. It has the rounded square Sigma shape, which sits well with squarer basins and toilets. Waste is at the end, and there's no overflow to worry about cleaning. Plug and waste is sold separately, so pick one up with the bath. Made in Australia from acrylic with a steel reinforced rim, and covered by a 15 year warranty on the bath and 1 year on labour.

• 1675mm long, 760mm wide and 450mm high, so you get length and depth in one
• 4 edge tile bead that lets your tiler seal the bath into the hob on every side
• End waste and no overflow, so match it to your floor waste and watch the fill
• Rounded square Sigma shape that ties in with the Sigma island bath and tapware
• Steel reinforced rim to stop the edge flexing under tiles
• Plug and waste not included, so add one to your cart
• Made in Australia and warranted for 15 years on the bath, 1 year on labour

Check the hob length and your doorway width before ordering a 1675mm bath. Ask your plumber to confirm the end waste position.

Pair it with a Raymor bath pop-up plug and waste and a Sigma bath mixer.

Specifications

Construction material: Acrylic
Colour: White
Length: 1675mm
Width: 760mm
Height: 450 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Inset Bath
• Installation instructions

Replacing a full size bath and want it to look freestanding? The Raymor Alpha Back to Wall Freestanding Bath 1700mm in White sits flush against the wall, so you keep the open look at the front and skip the awkward gap at the back. It has a rear tile bead (10mm by 8mm) so it can be tiled into the wall and sealed, or simply sit against it. Height adjustable self supporting feet mean your plumber levels it on site, with the waste running through the floor. It's 1700mm long, 800mm wide and 610mm high. The waste is in the centre and there's no overflow. Plug and waste isn't included. Moulded acrylic made in China, with a 10 year warranty on the bath and 1 year on labour.

• 1700mm long, 800mm wide and 610mm high, which gives a full length soak
• Sits hard against the wall, so no floor is lost and there's nothing to clean behind it
• Rear tile bead of 10mm by 8mm for checking into the tiled wall and sealing it
• Self supporting adjustable feet that save you building a hob
• Centre waste with no overflow, so plan the floor waste under the middle
• Plug and waste sold separately, so add one when you order
• Backed by a 10 year warranty on the bath and 1 year on labour

Check it will fit through the doorway and hallway at 1700mm long. Ask your plumber to confirm the centre waste can be plumbed through your floor.

Team it with a Raymor bath pop-up plug and waste and Alpha bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1700mm
Width: 800mm
Height: 610 mm
Waste location: Centre
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: China
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Back To Wall Bath
• Installation instructions

Worried about a freestanding bath overflowing? The Raymor Winton Freestanding Bath 1700mm with Integrated Overflow in White has the overflow built in, so it takes care of itself if the tap's left running a bit long. It's a freestanding bath on adjustable self supporting feet with the plumbing through the floor, so there's no hob to build. At 1700mm long, 800mm wide and 530mm high it's a full size soak. The waste is in the centre. Because of the overflow, it needs a plug and waste that suits an overflow, and that's sold separately. Made in Australia from moulded acrylic, with a 10 year warranty on the bath and 1 year on labour.

• Integrated overflow, so a forgotten tap drains away instead of over the rim
• Freestanding on adjustable self supporting feet, which makes levelling simple for your plumber
• 1700mm long, 800mm wide and 530mm high for a proper stretch out
• Centre waste, so the floor waste needs to come up under the middle
• Plug and waste not included, and it must be an overflow compatible waste to suit this bath
• Moulded acrylic, made in Australia
• 10 years warranty on the bath, 1 year on labour

Confirm your floor waste can be moved to the centre and that the bath fits through the door at 1700mm. Ask your plumber about the overflow connection.

Add a Raymor overflow compatible bath plug and waste and Winton floor mounted tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1700mm
Width: 800mm
Height: 530 mm
Waste location: Centre
Overflow: Integrated overflow
Plug and waste: Not included
Country of origin: Australia
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Freestanding Bath
• Installation instructions

Building a second bathroom and after a freestanding bath that won't crowd the room? The Raymor Alpha Freestanding Bath 1500mm in White is the compact one. It sits on its own adjustable self supporting feet with the plumbing coming up through the floor, so there's no hob to build and no tiling around it. It measures 1500mm long, 750mm wide and 600mm high, with the waste in the centre and no overflow. You buy the plug and waste separately, so add one to your cart. It's moulded acrylic, made in China, and covered by a 10 year warranty on the bath and 1 year on labour.

• Freestanding on adjustable self supporting feet, so your plumber can level it without a hob
• 1500mm long, 750mm wide and 600mm high, which leaves walking room in a smaller bathroom
• Centre waste, so the floor waste needs to sit under the middle of the bath
• No overflow, so don't leave it filling unattended
• Plug and waste not included, so order one with the bath
• Moulded acrylic that is light to move and easy to wipe down
• Covered for 10 years on the bath and 1 year on labour

Make sure the floor waste can be moved to the centre position before you buy. Ask your plumber to check the floor is solid enough to be drilled.

Pair it with a Raymor bath pop-up plug and waste and a floor mounted Alpha bath mixer.

Specifications

Construction material: Acrylic
Colour: White
Length: 1500mm
Width: 750mm
Height: 600 mm
Waste location: Centre
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: China
Warranty: 10 years on the bath, 1 year on parts and labour

What's In The Box

• 1 x Freestanding Bath
• Installation instructions

Building a hob and want the rim on show? The Raymor Sigma Island Bath 1675mm End Waste in White is an island bath, which means it's set into a hob on all four sides with the rim left exposed rather than tiled over. That gives you a clean, squarer edge and lets you tile the hob to suit the room. It measures 1675mm long, 750mm wide and 450mm high. The waste is at the end, not the centre, so plan the floor waste accordingly. There's no overflow. The plug and waste isn't included, so add one to your order. Australian made acrylic, steel reinforced rim, and a 15 year warranty on the bath with 1 year on labour.

• Island bath set into a hob on all four sides with the rim exposed, so no tile bead to hide
• 1675mm long, 750mm wide and 450mm high for a deeper, longer soak
• End waste position, which suits a floor waste near the tap end
• No overflow, so keep an eye on the tap while it fills
• Rounded square styling that pairs with the Sigma inset bath in a second bathroom
• Steel reinforced rim, which stays firm on the hob
• Plug and waste not included. Australian made with a 15 year warranty on the bath and 1 year on labour

Get your builder to size the hob to the bath before it's framed, and confirm the end waste with your plumber.

Add a Raymor bath pop-up plug and waste and Sigma bath tapware.

Specifications

Construction material: Acrylic
Colour: White
Length: 1675mm
Width: 750mm
Height: 450 mm
Waste location: End
Overflow: Non-overflow only
Plug and waste: Not included
Country of origin: Australia
Warranty: 15 years on the bath, base support frame and feet, 1 year on parts and labour

What's In The Box

• 1 x Island Bath
• Installation instructions

Hair clogging the bath every week? The Raymor Bath Pop-Up Plug and Waste with Hair Catcher in Brushed Nickel is a straight swap for a standard 40mm bath outlet. Press the flat top to open or close it, and lift out the centre to empty the hair catcher, so blockages get dealt with in seconds rather than with a bottle of drain cleaner. The body is brass with a brushed nickel finish, the top measures 68mm across, and it suits bath bases from 10mm to 30mm thick. It is made for baths without an overflow. Covered by a 5 year warranty on the plug and waste, finish and fittings, with 1 year on seals and labour. Also available in Chrome and Black.

• Pop-up action with a removable centre, so you can lift out the hair catcher and clear it in seconds
• Suits a standard 40mm bath outlet with a G1 1/2 thread for a like-for-like replacement
• Solid brass body under a brushed nickel finish that copes with daily use and cleaning
• Low profile 68mm top that sits flat in the bath rather than standing proud
• Fits bath bases from 10mm to 30mm thick, which covers most acrylic and steel baths
• 5 year warranty on the plug and waste, finish and fittings, plus 1 year on seals and labour

Not for baths with an overflow. Check your bath outlet is 40mm before you order, and ask your plumber if you're unsure.

Match it with the Raymor basin pop-up waste and tapware in Brushed Nickel for a consistent look.

Specifications

Construction material: Brass
Function: Pop-up with removable centre hair catcher
Top diameter: 68mm
Overall height: 48mm
Thread size: G1 1/2 (40mm)
Suits outlet size: 40mm bath outlet
Suits bath thickness: 10 to 30mm
Suitable for: Baths without an overflow
Country of origin: China
Warranty: 5 years plug and waste, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Bath pop-up plug and waste
• Installation instructions

Bath draining slowly, or the old plug refusing to seal? The Raymor Bath Pop-Up Plug and Waste with Hair Catcher in Chrome is a straight swap for a standard 40mm bath outlet. Press the flat top to open or close it, and lift out the centre to empty the hair catcher, so blockages get dealt with in seconds rather than with a bottle of drain cleaner. The body is brass with a chrome finish, the top measures 68mm across, and it suits bath bases from 10mm to 30mm thick. It is made for baths without an overflow. Covered by a 5 year warranty on the plug and waste, finish and fittings, with 1 year on seals and labour. Also available in Black and Brushed Nickel.

• Pop-up action with a removable centre, so you can lift out the hair catcher and clear it in seconds
• Suits a standard 40mm bath outlet with a G1 1/2 thread for a like-for-like replacement
• Solid brass body under a chrome finish that copes with daily use and cleaning
• Low profile 68mm top that sits flat in the bath rather than standing proud
• Fits bath bases from 10mm to 30mm thick, which covers most acrylic and steel baths
• 5 year warranty on the plug and waste, finish and fittings, plus 1 year on seals and labour

Not for baths with an overflow. Check your bath outlet is 40mm before you order, and ask your plumber if you're unsure.

Match it with the Raymor basin pop-up waste and tapware in Chrome for a consistent look.

Specifications

Construction material: Brass
Function: Pop-up with removable centre hair catcher
Top diameter: 68mm
Overall height: 48mm
Thread size: G1 1/2 (40mm)
Suits outlet size: 40mm bath outlet
Suits bath thickness: 10 to 30mm
Suitable for: Baths without an overflow
Country of origin: China
Warranty: 5 years plug and waste, chrome, PVD and electroplate finishes and fittings. 1 year seals and labour

What's In The Box

• 1 x Bath pop-up plug and waste
• Installation instructions

Overflow hole looking bare after a new basin went in? The Raymor Basin Overflow Ring Round in Chrome is the small plastic trim that sits in the overflow hole of a basin and tidies up the edge. It suits most round overflow holes and measures 31mm across and 14mm high, so it covers the opening without standing proud. It's a plastic ring with a chrome finish, so pick the one that matches your tapware and waste. Also available in Brushed Nickel and Matte Black.

• Fits most round basin overflow holes, so it's a likely match for the basin you already have
• Plastic ring in a chrome finish to match your mixer and pop-up waste
• 31mm across and 14mm high, which covers the hole without sticking out
• Quick fix for a missing, cracked or discoloured overflow trim

Measure your overflow hole before you order, as some basins use oval or slotted openings.

Pair it with Raymor tapware in the same finish so the small details line up.

Specifications

Construction material: Plastic
Overall length: 31 mm
Height: 14 mm
Country of origin: China

What's In The Box

• 1 x Overflow ring

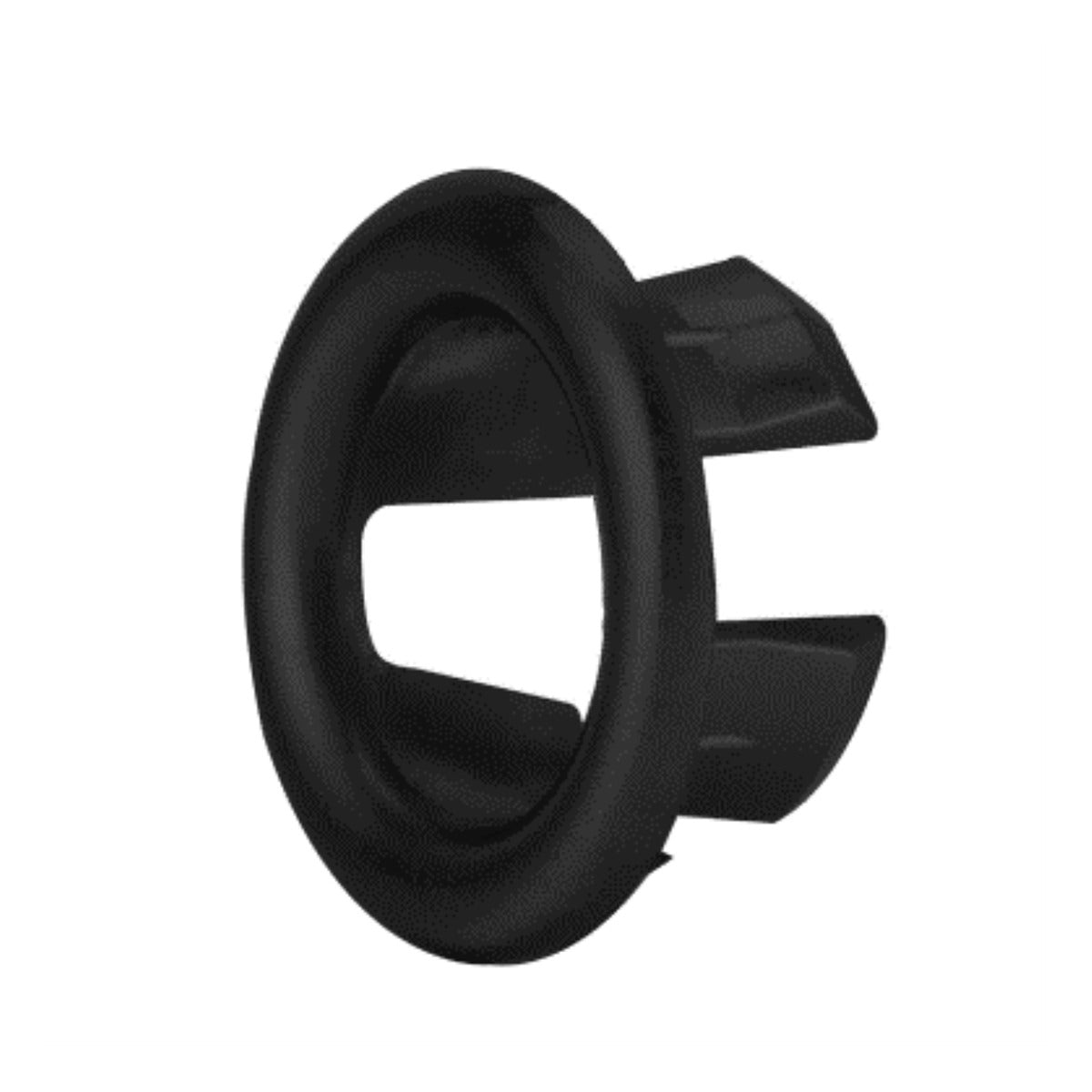

Old overflow trim gone dull or cracked? The Raymor Basin Overflow Ring Round in Matte Black is the small plastic trim that sits in the overflow hole of a basin and tidies up the edge. It suits most round overflow holes and measures 31mm across and 14mm high, so it covers the opening without standing proud. It's a plastic ring with a matte black finish, so pick the one that matches your tapware and waste. Also available in Brushed Nickel and Chrome.

• Fits most round basin overflow holes, so it's a likely match for the basin you already have
• Plastic ring in a matte black finish to match your mixer and pop-up waste
• 31mm across and 14mm high, which covers the hole without sticking out
• Quick fix for a missing, cracked or discoloured overflow trim

Measure your overflow hole before you order, as some basins use oval or slotted openings.

Pair it with Raymor tapware in the same finish so the small details line up.

Specifications

Construction material: Plastic
Overall length: 31 mm
Height: 14 mm
Country of origin: China

What's In The Box

• 1 x Overflow ring
