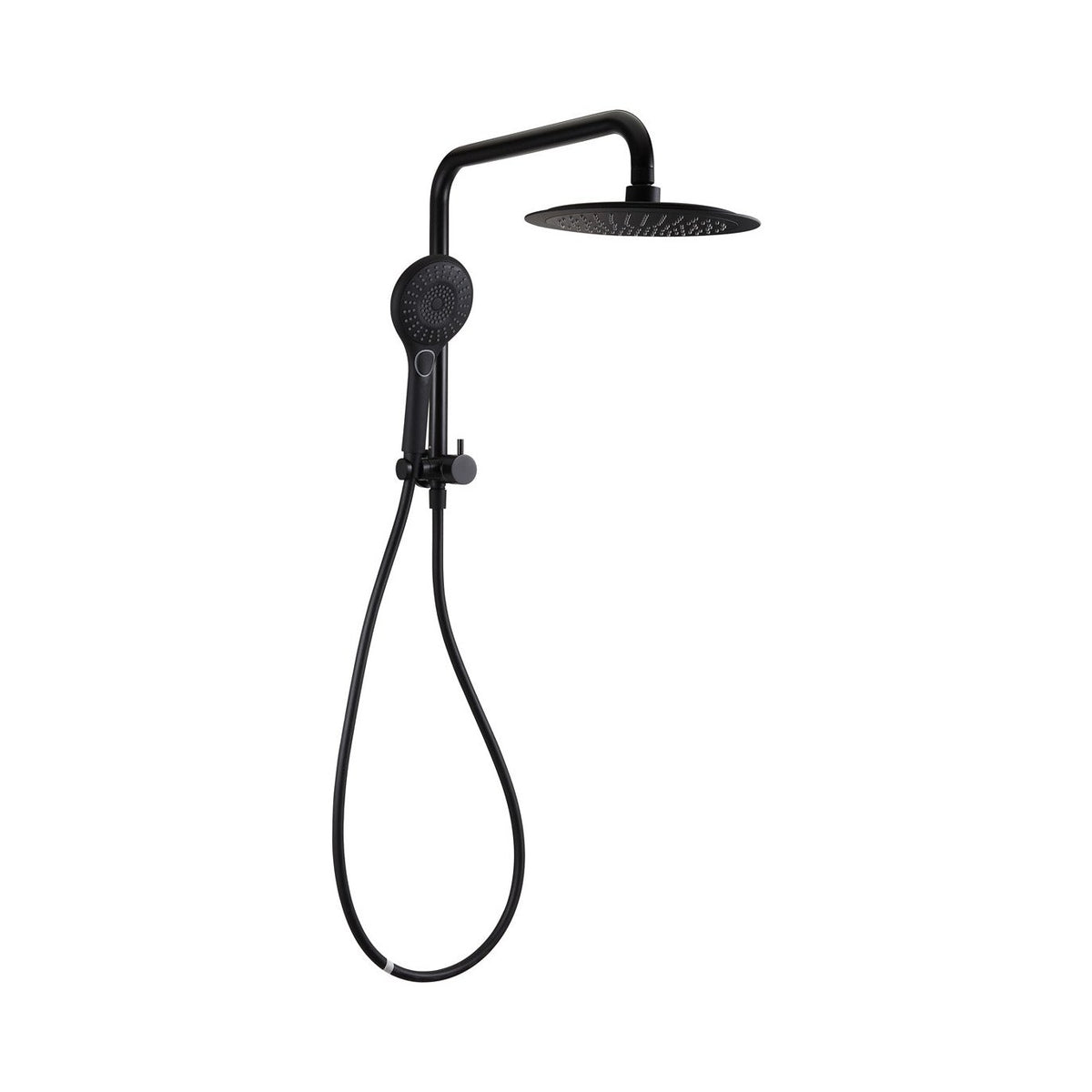

Raymor Winton Compact Dual Shower Round 250mm Black

Small ensuite, big rose, plus a hand shower? The Raymor Winton Compact Dual Shower Round 250mm in Black is the shorter rail version of the Winton dual shower, for bathrooms where a full length rail won't fit. You still get a 250mm round overhead rose on a 400mm arm, a hand shower on a slider and a diverter to switch between them, all from one wall outlet. The rail and diverter are brass, the rose, handpiece and slider are ABS, and the hose is PVC. WELS 3 star rated at 9 litres a minute from either head. Backed by a 20 year warranty on the brass body, rail, arm, hose, showerhead, handpiece, slide bracket and diverter, with 20 years on a chrome finish or 5 years on an electroplated finish. Also available in Chrome and Brushed Nickel.

• Shorter rail than the standard Winton Dual, so it fits a tighter wall or under a low window
• 250mm round overhead rose for a wide soak
• Hand shower on a slider with a diverter, for rinsing, kids and cleaning the screen
• 400mm arm that carries the rose out from the wall
• Brass rail and diverter with ABS heads and a PVC hose
• Black finish matching Winton tapware and accessories
• WELS 3 star at 9 litres a minute from either head

Wall mounted off a single outlet. No soap dish with this one, so grab a separate one if you want it, and ask your plumber to confirm the outlet height.

See the full length Winton Dual Shower Round if you've got the wall space, and match either with Winton mixers in the same finish.

WELS water efficiency: 3 star
WELS water consumption: 9.0 L/Min
WELS registration number: S18322
Construction material: Brass rail, ABS shower head and PVC hose
Rose size: 250mm
Arm reach: 400mm
Overall height: 400 mm
Overall width: 250 mm
Country of origin: China
Warranty: 20 Years main brass body, wall elbow, shower arm, shower rail, PVC coated hose, showerhead, handpiece, slide bracket, diverter assembly, soap dish, and chrome plated finish. 5 Years PVD and electroplate finishes. 1 Years seals and Labour

• Compact Dual Shower
• Installation Instructions
