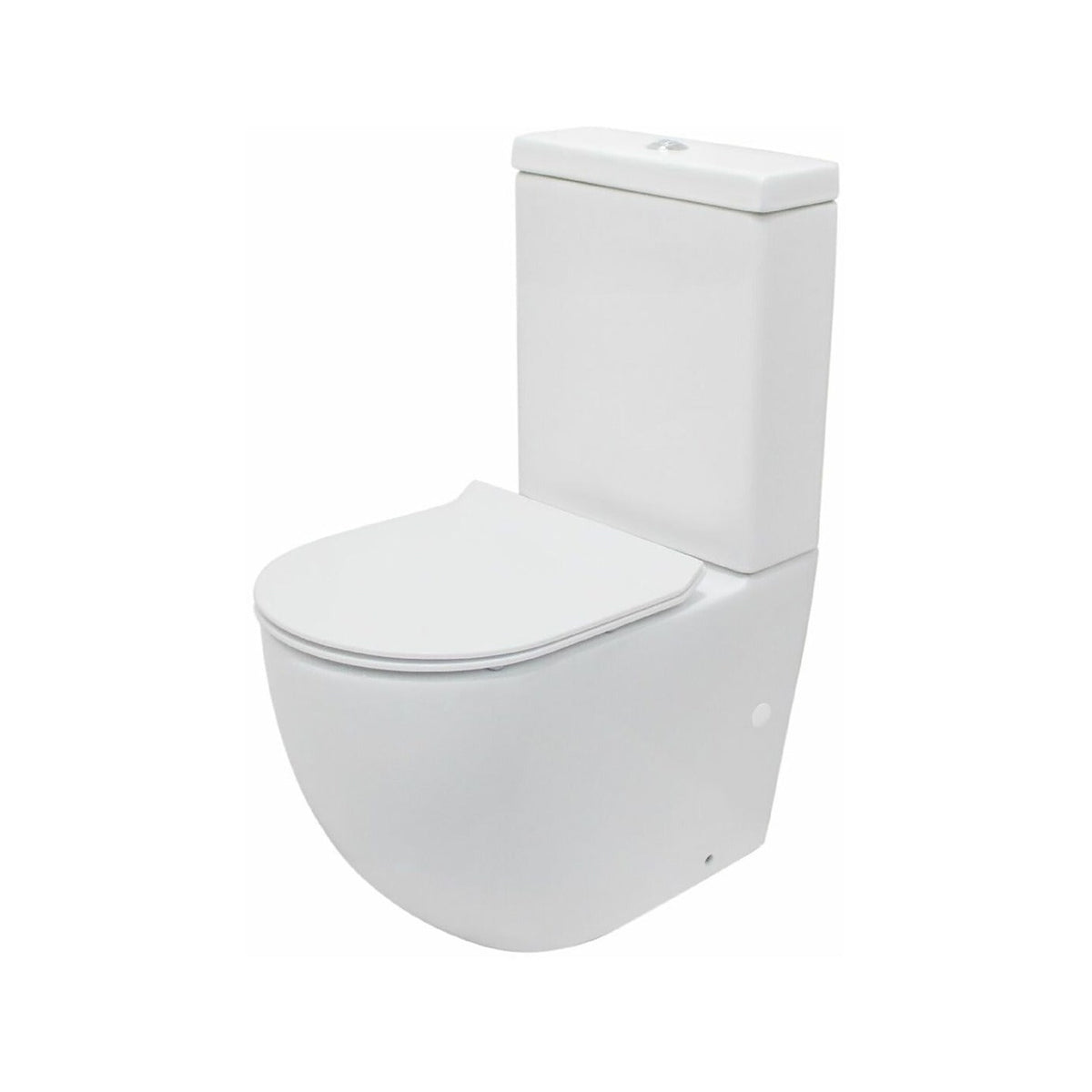

Raymor Winton Back to Wall Rimless Toilet Suite Slim Seat White

Ready to swap the old suite for something easier to keep clean? The Raymor Winton Back to Wall Rimless Toilet Suite with a slim seat has a rimless pan with an easy clean rim and no gap behind it. Vitreous china pan and cistern, 830mm high, 365mm wide and 615mm deep. The universal trap suits a P trap at 185mm, or an S trap from 50mm to 160mm as standard and 150mm to 245mm with the optional set out. Inlet is back or bottom, left or right, through an R&T side entry valve. The R&T 4.5 and 3 litre dual flush gives it WELS 4 star at 3.5 litres a flush. Made in China. In the box: cistern, pan with slim soft close quick release seat, variance bend and instructions. Warranty is 20 years on the china, 5 years on valves, seat and fittings, 1 year on seals and labour.

• Rimless pan with an easy clean rim, so there are fewer places for grime to build up
• Back to wall suite, which means no gap behind the pan to clean around
• Universal trap covers P trap at 185mm and S trap from 50mm to 245mm with the optional set out, so it suits most existing outlets
• Back or bottom inlet, left or right, so your plumber connects to what is already in the wall or floor
• R&T side entry inlet valve and 4.5 and 3 litre dual flush outlet valve, WELS 4 star at 3.5 litres average flush
• Slim soft close seat with quick release metal hinges, so it sits low on the pan and lifts off for cleaning
• 20 years on the vitreous china, 5 years on valves, seat and fittings, 1 year on seals and labour

Measure from the finished wall to the centre of your outlet and check whether your inlet is in the wall or the floor. Ask your plumber if you're unsure.

Pair it with a Raymor Winton basin mixer and Winton accessories to finish the room.

Construction material: Vitreous china
Colour: White
Pan type: Rimless
Flush type: Dual Flush
Outlet valve: 4.5/3L Dual flush
Trap type: Universal

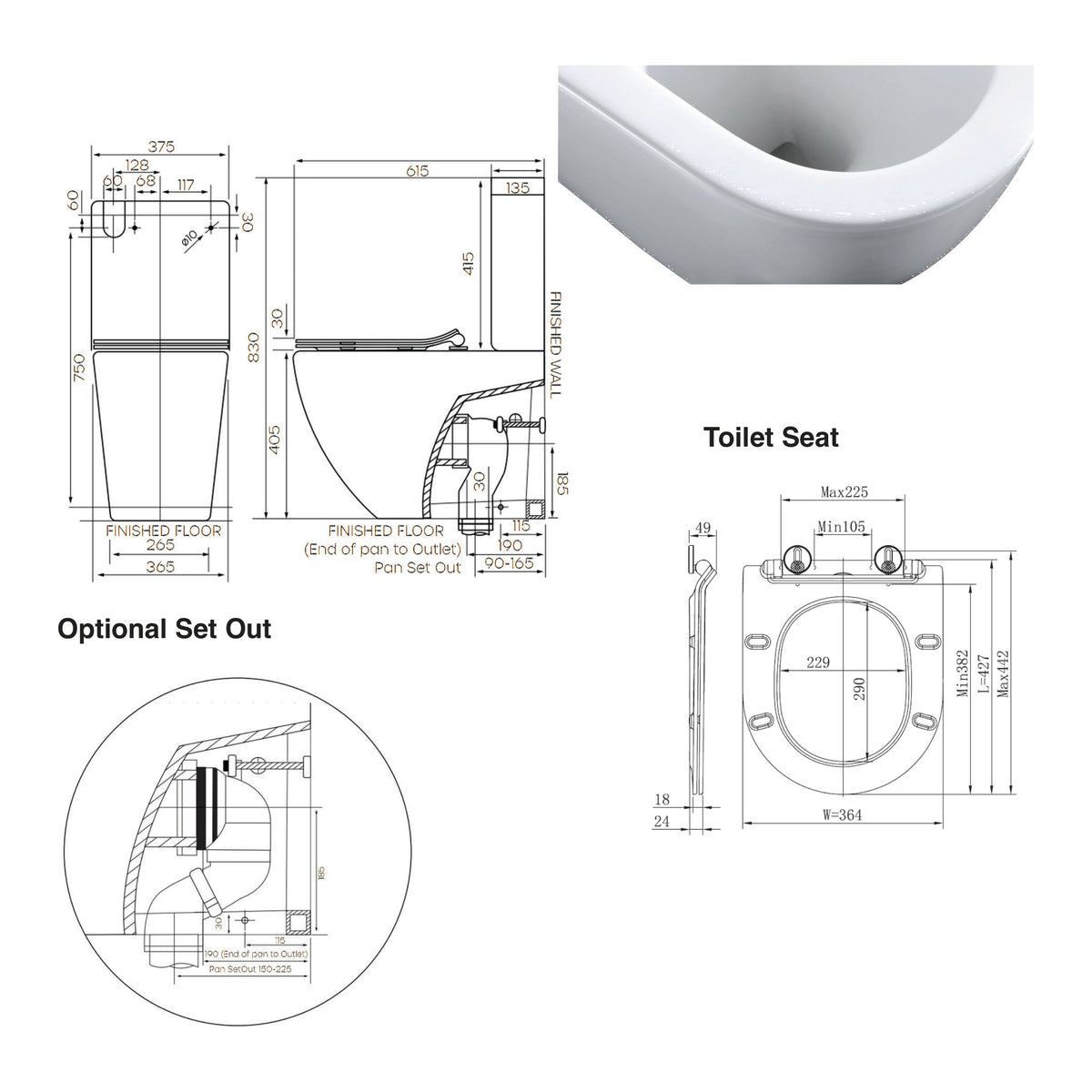

Set out: S Trap(mm): 50-160 Standard; P Trap(mm): 185 Floor to Centre of Outlet; Optional S Trap(mm): 150-245
Water inlet: Universal
Seat type: Soft Close Double Flap
Overall height: 830 mm
Overall width: 365 mm
Overall depth: 615 mm
WELS rating: 4 star, 3.5L average flush
WELS registration: L07687
Country of origin: China
Warranty: 20 years Vitreous china. 15 years Nylon Braided TPSiv Flexible Hoses. 10 years In Wall cisterns. 5 years inlet and outlet valves, seats, link piece, flush pipe, flush button, fittings. 1 year seals and labour

• 1 x Pan with seat
• 1 x Cistern
• 1 x Variance Bend
• Installation Instructions
