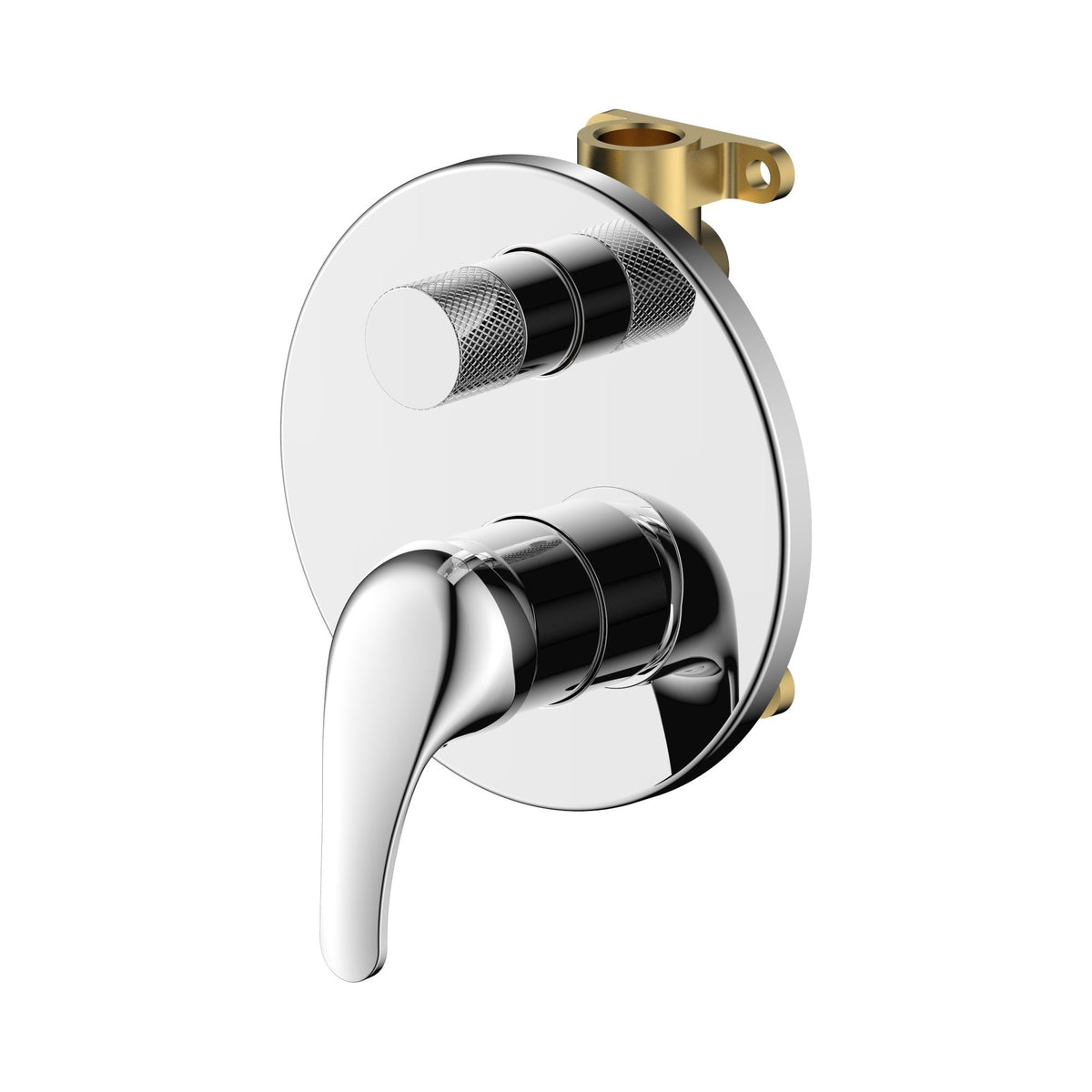

Raymor Surrey Bath and Shower Mixer with Diverter Chrome

Shower and bath sharing one wall mixer? The Raymor Surrey Bath and Shower Mixer with Diverter in Chrome runs two outlets from a single wall mixer, so you switch between the shower head and the bath spout with a flick of the diverter. The traditional styling suits a period home or a simple new bathroom. It's built from DZR brass in a one piece body with a 35mm ceramic disc cartridge in a brass housing behind a paddle handle. Should the cartridge ever give out, the mixer is designed so water shows at the front of the wall instead of soaking the cavity. The trim includes a removable sleeve, which means parts can be replaced without breaking the wet seal. Backed by a 20 year warranty on the body, cartridge, handle and chrome finish.

• Built-in diverter that sends water to the shower or the bath spout from one mixer
• One piece DZR brass body with a flat mount and four fixing points, so it sits solid in the wall
• 35mm ceramic disc cartridge inside a brass housing, giving the paddle handle a smooth, long lasting action
• Any cartridge leak is directed to the front of the wall, not into the cavity, which saves a costly repair later
• Removable body sleeve on the trim for replacing parts without touching the waterproofing
• Chrome finish that cleans up with a wipe and matches the rest of the Surrey range
• 20 year warranty on the body, cartridge, handle and chrome finish, with 1 year on seals and labour

Wall mounted, suited to water pressure from 150 to 500kPa. Your plumber will need to run a second outlet for the bath spout, so check the wall layout before you order.

Finish the room with a Surrey wall spout and shower, or the single outlet Surrey Bath or Shower Mixer for a second bathroom.

Construction material: DZR Brass
Operating mechanism: Ceramic disc with brass housing
Cartridge size: 35mm
Operating pressure: 150 to 500kPa
Lead free: Not Required
Country of origin: China
Warranty: 20 Years Mixer Cartridge, Body, Aerator, Hoses, Spout, Handle and Chrome Finish. 10 Years Handpieces and pull down hoses. 5 Years PVD and Electroplate finishes. 1 Years Seals and Labour

• 1 x Wall mixer
• Fixing kit
• Installation instructions
