Caroma Urbane II Luxe Cleanflush Wall Faced Invisi Series II Toilet Suite

Building new, or pulling out a tired old suite? The Caroma Urbane II Luxe Cleanflush Wall Faced Invisi Series II Toilet Suite handles both. The Cleanflush® rimless bowl clears waste efficiently and leaves fewer spots for grime to hide, so the weekly clean is quicker. GermGard® antimicrobial protection is added to the seat and pan for better hygiene. The seat soft-closes too, which means no late-night slam. The Invisi Series II cistern sits in the wall, giving your bathroom a low-profile look and a sense of more space. It's WELS 4 star rated, dual flush, 4.5L/3L (3.5L average flush). Backed by a 20 year warranty, so it's a suite you can stop thinking about.

• Cleanflush® rimless design flushes with power and gives full visibility of any build-up, which makes for a cleaner clean
• GermGard® antimicrobial protection* on the seat and pan for improved hygiene where it matters most
• Concealed cistern installs flexibly: in a wall with a min. 90mm cavity, under a countertop, or in a duct or ceiling where it can still be accessed for service
• Patented Uni-Orbital connector extends to any position up to a 50mm radius, handy for tricky plumbing set-outs and only available with Caroma wall faced toilets
• Soft-closing seat closes quietly, so there's no loud bang in the middle of the night
• Space-saving in-wall cistern gives the illusion of more room and a sleek, low-profile look
• Supported by a 20 year warranty for long-term peace of mind

Flush buttons are sold separately, so you can match the finish to your other tapware and accessories.

Check your wall cavity and set-out before you order. Need a hand? Your plumber can confirm it.

WELS water efficiency: WELS 4 star rated
WELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)
WELS registration number: L06663
Watermark certification: All Caroma toilet pans, cisterns and components are Watermark certified
Construction material: Vitreous China Pan
Finish/coating: Gloss white ceramic glaze

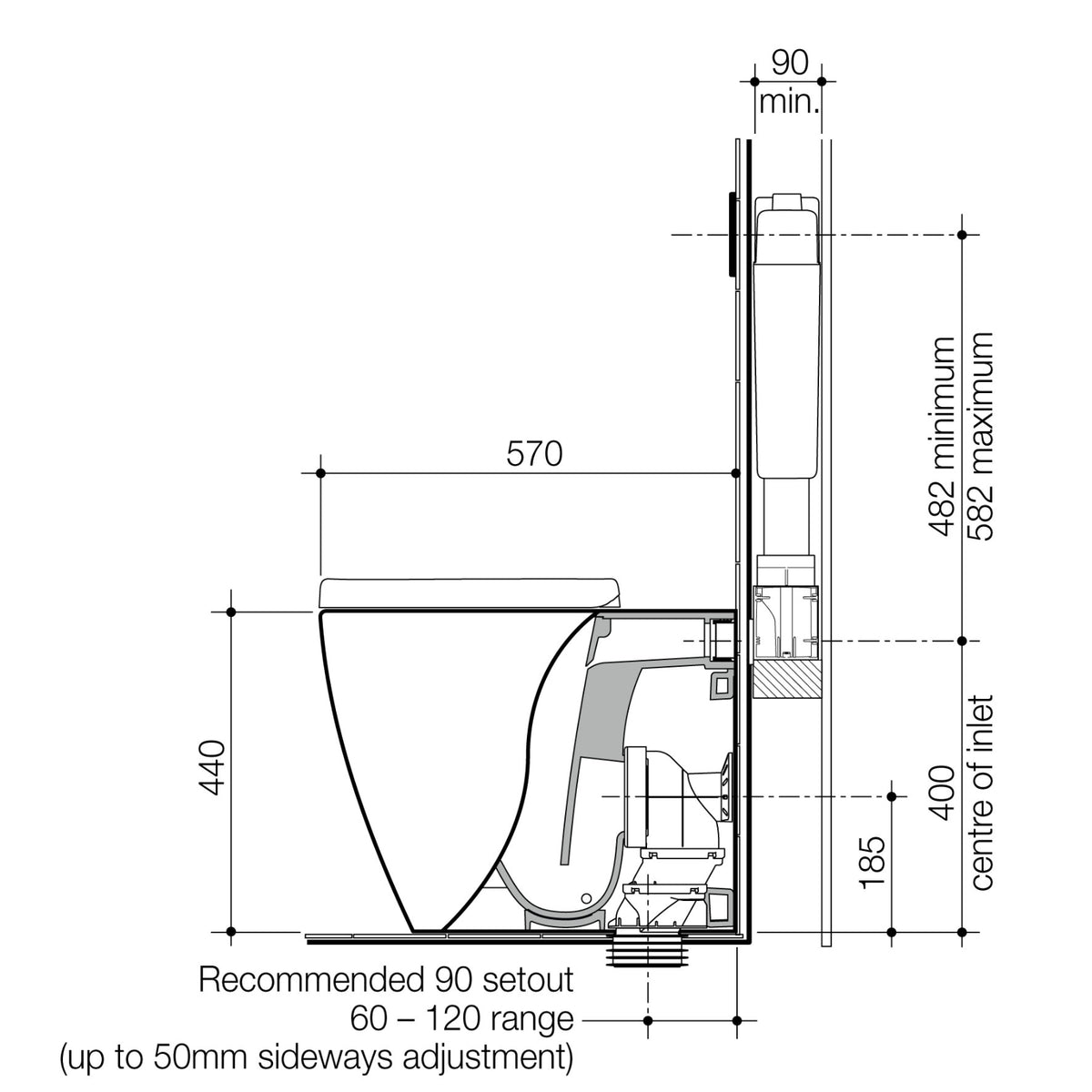

Overall height: 470mm (pan & seat), 814 - 984mm to cistern top (in wall)
Pan height: 440mm (excluding seat)
Projection from wall: 570mm
Overall width: 350mm (pan), 400mm cistern (in wall)
Trap: Universal S or P trap
Set out: S Trap 60 - 120mm, P Trap 185mm
Water inlet location: N/A
Warranty: 20 years

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

Pan
Caroma Urbane Cleanflush pan in white, made from quality Vitreous China and featuring added height, making it easier to get on and off. Includes fixing kit and Uni-orbital connector, Caroma's patented waste trap connector for flexible installations, extends any position up to 50mm radius.

Cistern
Caroma Invisi Series II 4.5/3L behind the wall cistern. Suitable for inwall, induct, under-counter or induct/in-ceiling installations.

Seat
Caroma Liano soft-close hinge seat in white, with a quick-release feature for ease of cleaning and slim lid for a low profile look.

Download the specification sheet below:

Caroma Urbane II Luxe Cleanflush Wall Faced Invisi Series II Toilet Suite

Download the installation instructions below:

Caroma Urbane II Invisi Series II Cistern Install
Caroma Urbane II Invisi Series II Pan Install

Caroma products are covered by warranties of up to a Lifetime*

Caroma products are manufactured to the highest standard and in addition to the guarantees provided under the Australian Consumer Law, they offer extended warranty periods from the date of purchase or handover that their products are free from all defects in materials and workmanship, subject to the terms and conditions detailed on their website, for additional peace of mind.

Baths

• Bath shell – 20 Years
• Labour, replacement product or parts – 1 Year

Basins

• Basins – 20 year replacement product; 1 year parts & labour
• Basin Dress Rings – 5 year replacement product

Sinks & Tubs

• Sinks – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Urbane II Coloured Sinks with PVD Coating – 7 year replacement & labour
• Tubs – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Accessories & Spare parts – 1 year replacement product or parts

Showers

• 20 years cover for replacement product or parts only*
• 1 year cover for labour

*Excludes shower sliders, soap dishes, wall fixings, mounting brackets and metal flex hoses – 12 months parts only.

Taps, Outlets & Mixers

• 20 years cover for replacement product or parts only†
• 10 years cover for Tapware Engine* replacement parts only
• 1 year cover for labour, pull down/out hoses, spray heads and ceramic disc spindles

*Tapware Engine includes ceramic disc mixer cartridge, aerator and ultra flex pex hose.
†Excludes plastic jumper valves – 3 months parts only; copper jumper valves – 12 months parts only.

Finishes (Accessories, Showers, Taps, Outlets & Mixers)

• 20 years cover for PVD (Physical Vapour Deposition) product finish
• 20 years cover for Chrome product finish
• 10 years cover for all other product finishes

Toilets

• Toilet suites – 20 year replacement product*; 1 year parts & labour
• Toilet Seats – 1 year replacement product or parts
• Concealed Toilet Buttons – 5 year replacement product; 1 year parts & labour
• Electronic Bidet Seat – 2 year replacement product or parts (excludes consumable parts such as filters)

*Excludes inlet and outlet valve washers – 1 year parts and labour only.

Geberit Cisterns are covered by a 25 Year spare parts warranty and 15 Years on the tank and frames.

Accessibility/maintenance: the dual-flush plate acts as the button and provides the access required for servicing the internal parts of the cistern. For After Sales & Service enquiries you can contact Geberit directly on 1800 GEBERIT for assistance.

Wastes & Traps – 1 Year

Kitchen Accessories – 1 Year

Should any warranty claim be made and attended to by a Caroma authorised Service Agent and, in the opinion of the Service Agent or Caroma, the problem was from faulty installation, use of the products in conjunction with products of another manufacturer, or some other cause other than a manufacturing defect for which Caroma is responsible, Caroma Industries Limited reserves the right to charge a service fee for each service staff attending the premises where products have been installed.

For After Sales & Service enquiries you can contact Caroma directly on 13 14 16 for assistance.

To view the Caroma Warranty Document, click here.

• Delivery insurance is included on all product deliveries. Please note, goods need to be inspected within 24 hours of delivery for breakages
