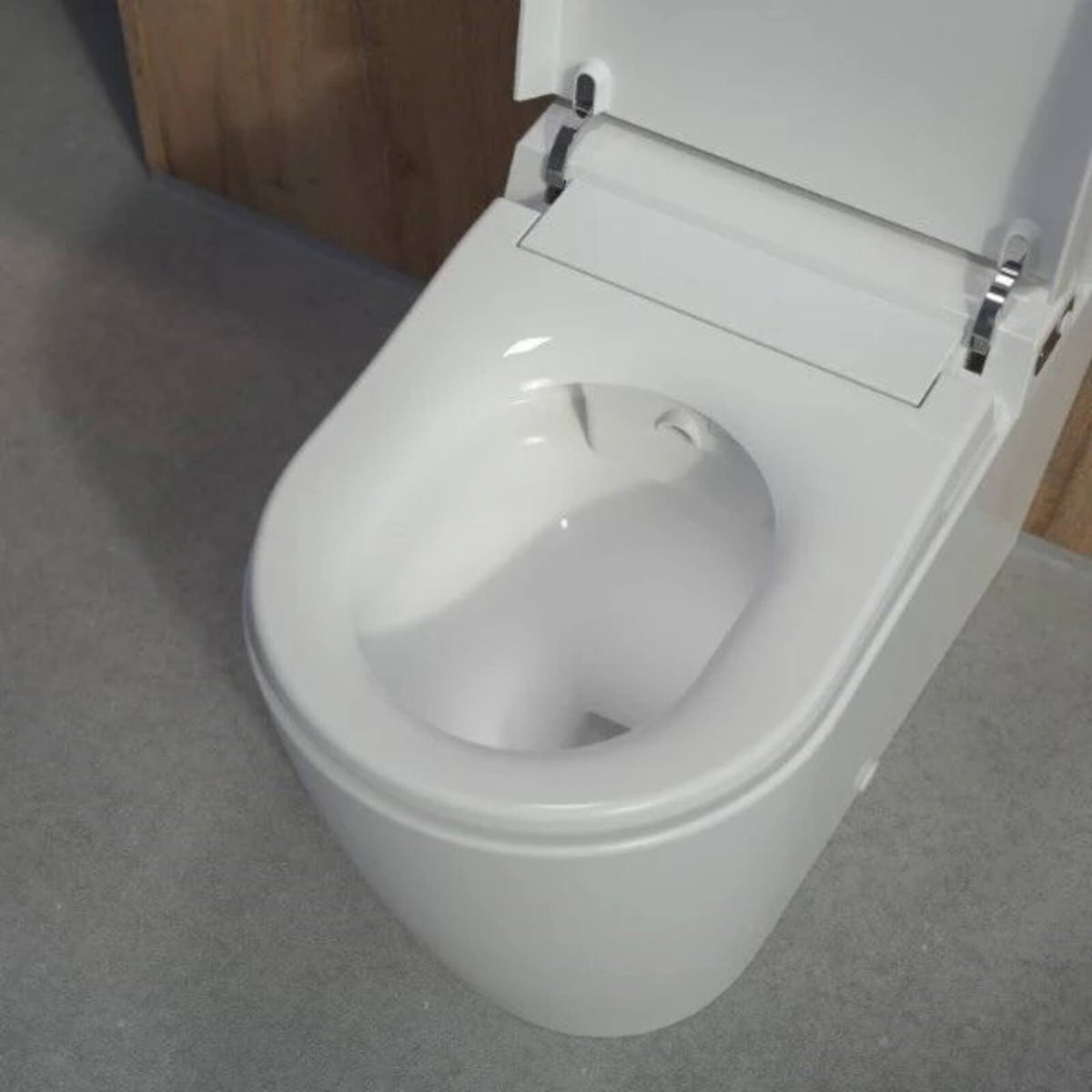

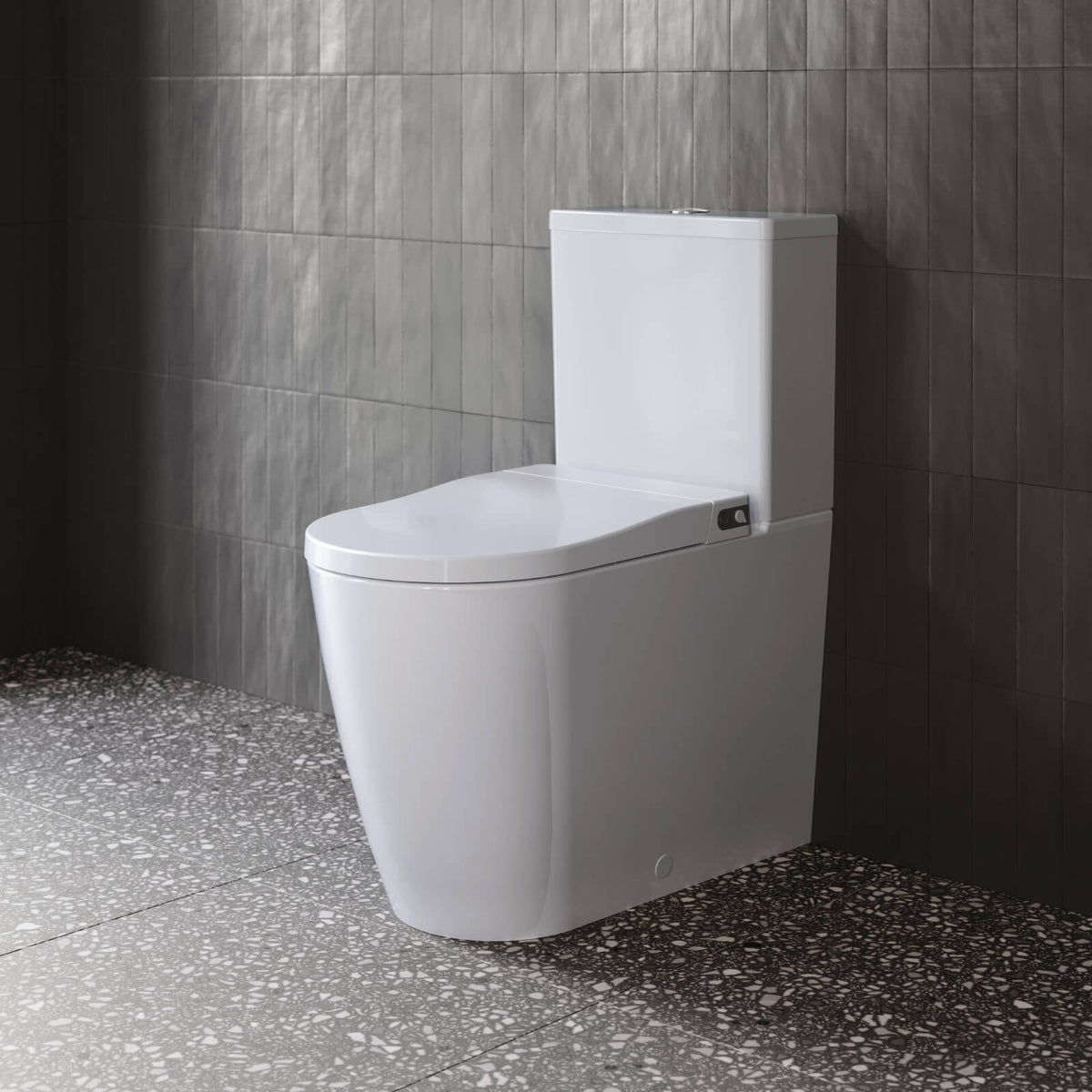

Caroma Urbane II Wall Faced Close Coupled Bidet Suite

Upgrading an old pan, or fitting out a new bathroom with an all-in-one loo? The Caroma Urbane II Wall Faced Close Coupled Bidet Suite does both jobs neatly. The wall-faced, rimless pan sits flush against the wall, and Cleanflush® technology cuts back the hard-to-reach spots, so cleaning is quicker. It's WELS 4 star rated, dual flush, 4.5L/3L (3.5L average flush). Then there's the comfort side: a heated seat with auto open and close, LED nightlight, ambient lighting, and a remote that controls water and air temperature, water flow and nozzle reach. GermGard® antimicrobial protection is built into the seat. Your old pan never stood a chance. Backed by a 20 year warranty.

• Cleanflush® rimless technology for a more hygienic flush with fewer places for grime to hide, while keeping water use down
• Heated seat with auto open and close, plus LED night lights and ambient lighting, so it's comfortable and easy to use after dark

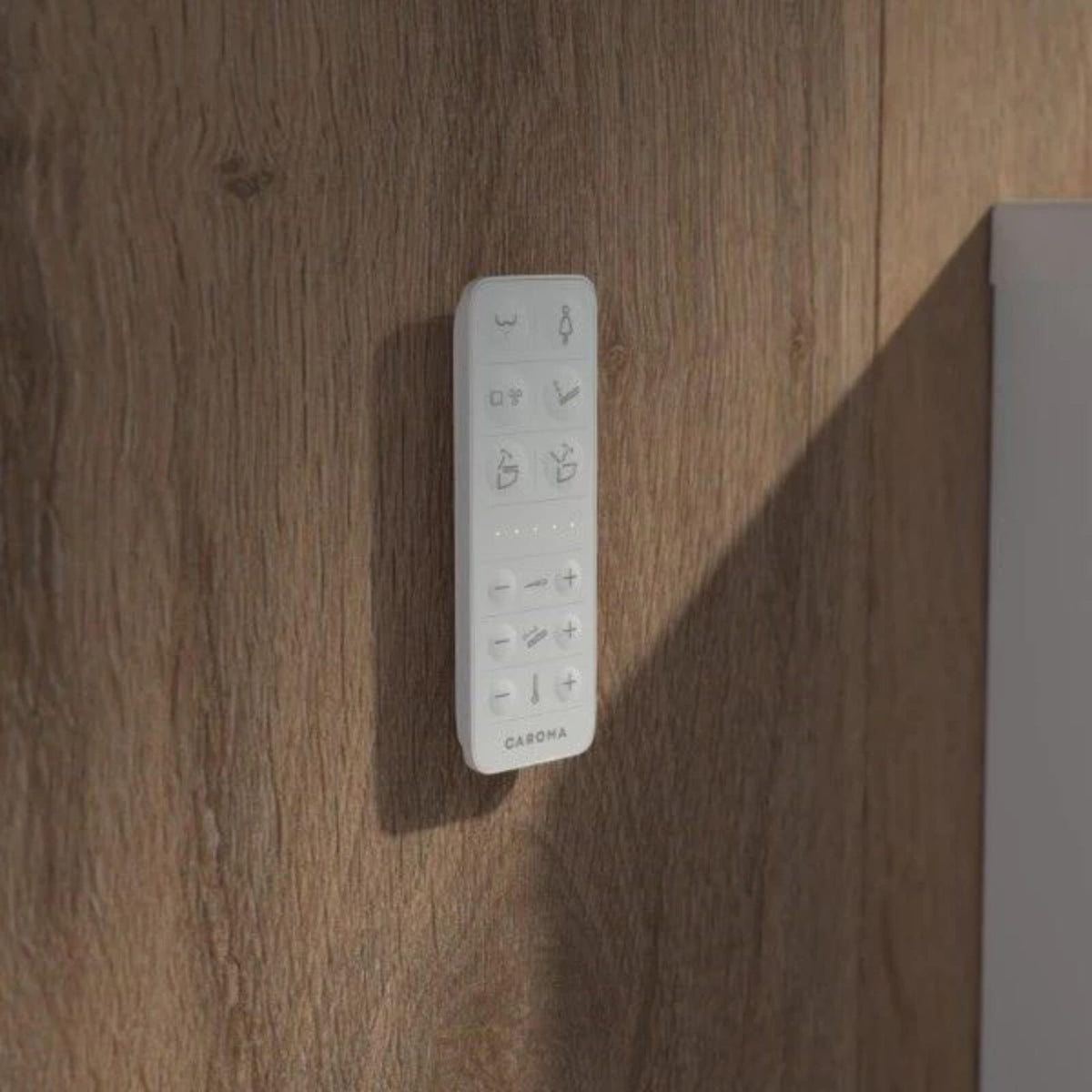

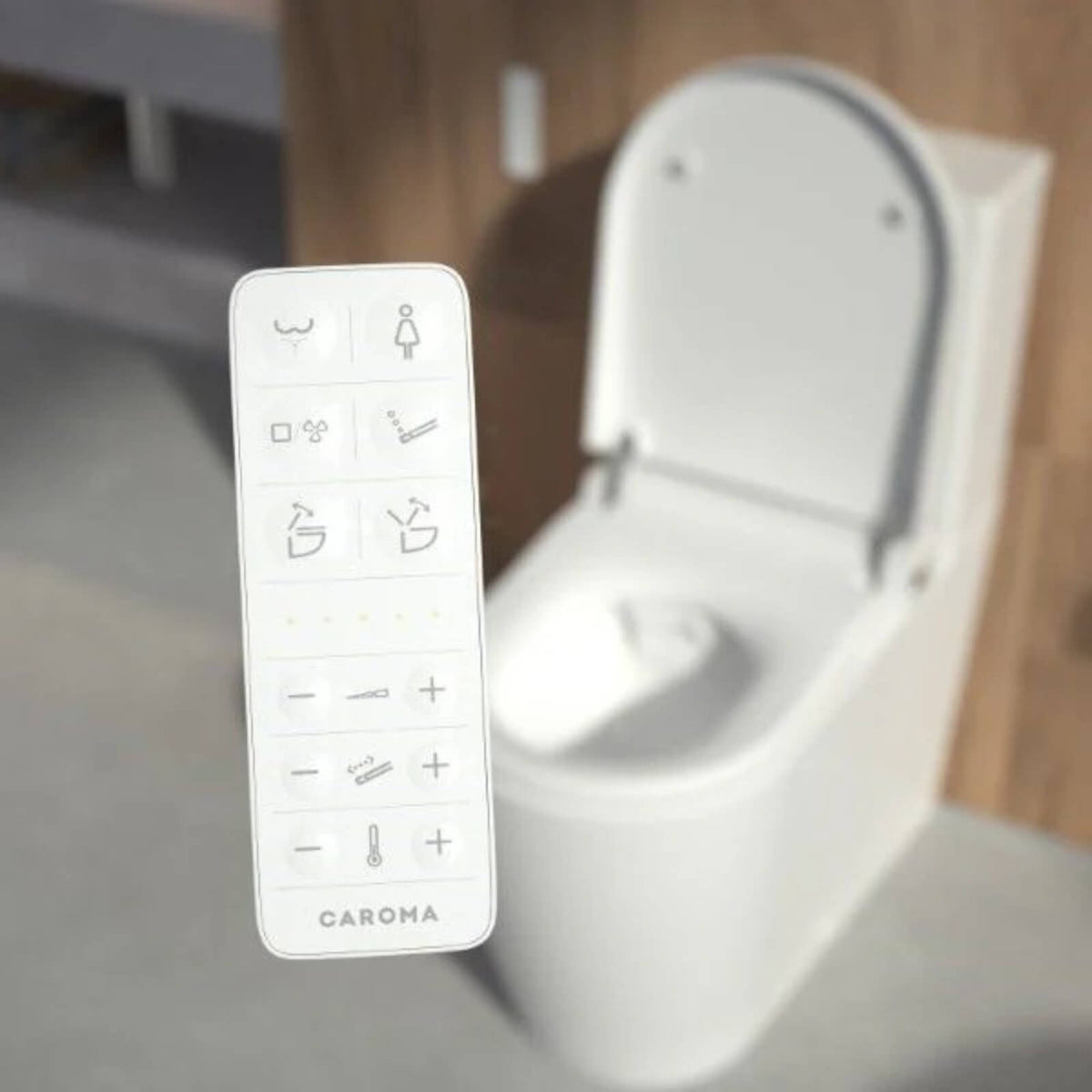

• Remote control lets you fine-tune water and air temperature, water flow and nozzle reach without leaving the seat
• Gender specific washes, a deodoriser and drying options, so you can tailor it to suit

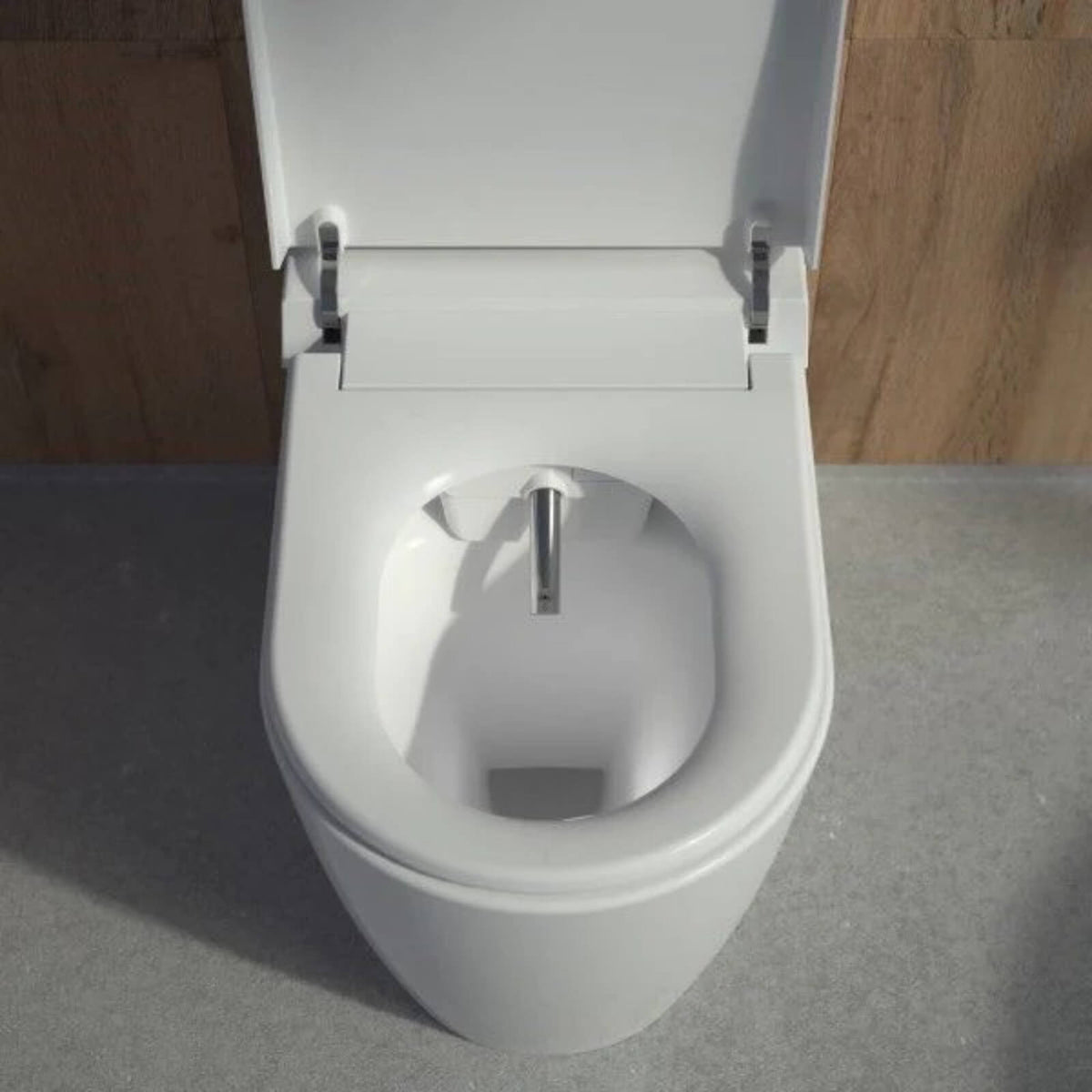

• Oscillating nozzle covers a wider cleaning area, and pulsating mode adds a massage function
• GermGard® antimicrobial protection on the seat helps keep things cleaner between wipe-downs
• Patented UniOrbital® connector extends to any position up to a 50mm radius, which makes lining up with your existing plumbing easier
• Cistern comes with Chrome buttons as standard, with optional coloured flush buttons available to match Caroma tapware

The UniOrbital® connector only works with Caroma Wall Faced toilet pans, so confirm your pan is compatible before ordering. Need a hand? Check with your plumber.

WELS water efficiency: WELS 4 star rated
WELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)
WELS registration number: L07531
Watermark certification: All Caroma Toilets are Watermark approved
Construction material: Vitreous China
Finish/coating: Gloss white glaze

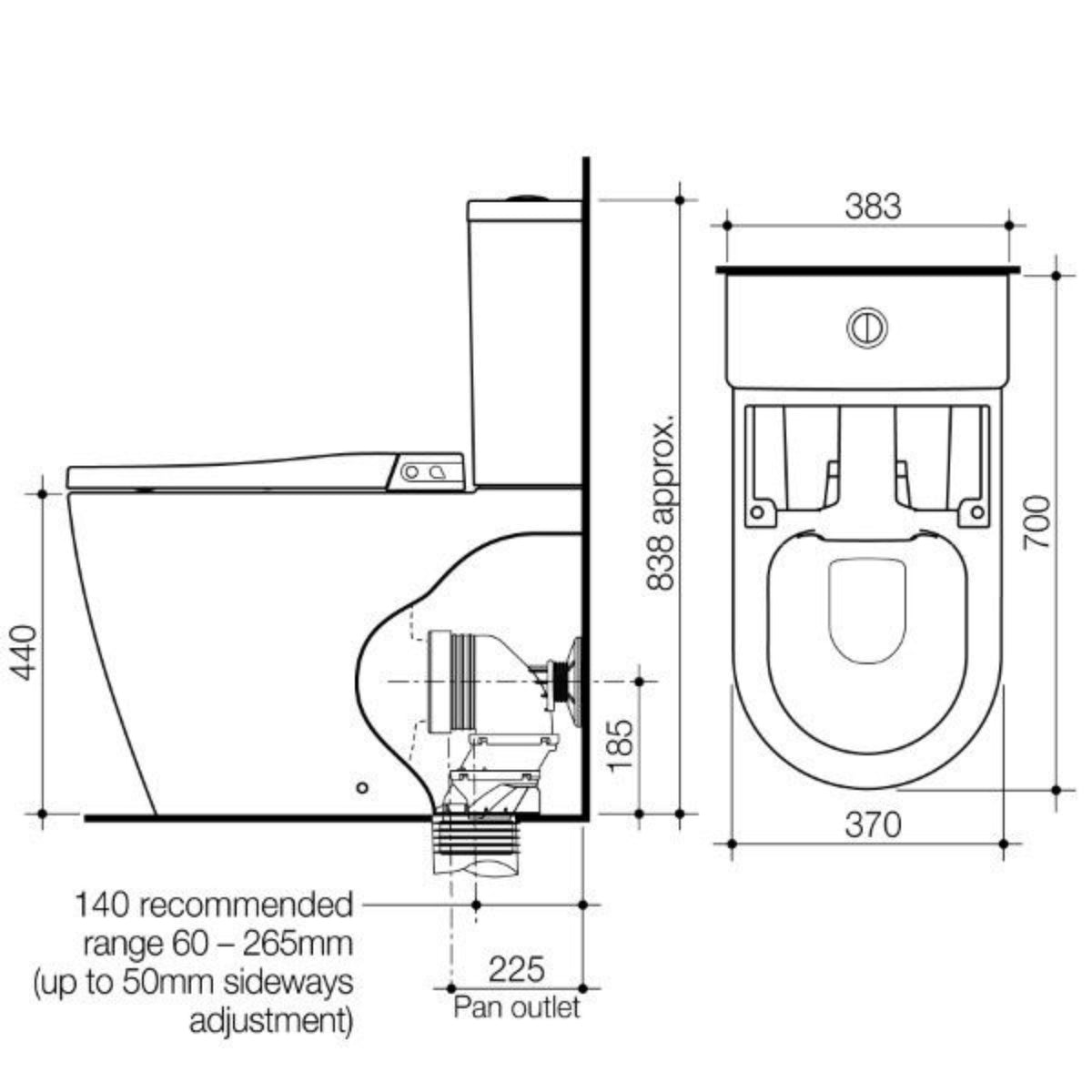

Overall height: 838mm
Pan height: 440mm
Projection from wall: 700mm
Overall width: 383mm
Trap: Universal
Set out: 225mm
Water inlet location: Back or Bottom inlet available
Warranty: 20 years

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

Download the specification sheet below:
Caroma Urbane II Wall Faced Close Coupled Bidet Suite

Download the installation instructions below:

Caroma Urbane II Cistern Install
Caroma Urbane II Cleanflush Wall Faced Pan Install
Caroma Urbane II Bidet Seat Install
