Caravelle Wall Basin - 3TH

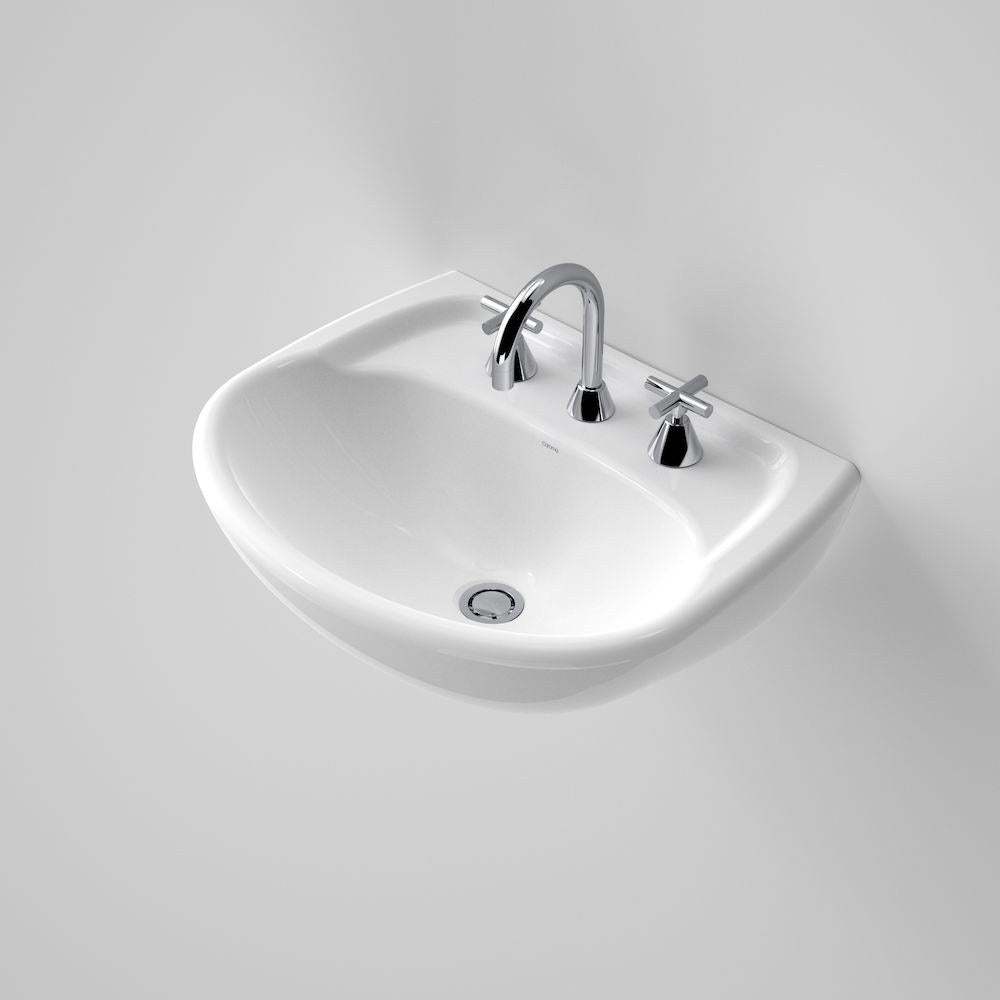

Tiny powder room and nowhere to put a vanity? The Caroma Caravelle Wall Basin 3TH hangs straight off the wall, so there's no vanity to fit and the floor stays clear, which suits small bathrooms and powder rooms. It's 550mm wide, 435mm deep and 225mm high, in white vitreous china, with a 10 litre bowl and no overflow. The three tap holes take a separate spout and a pair of taps. A chrome flush-fit waste and white plug are included, and an optional pedestal or shroud can hide the plumbing underneath. Caroma states it meets AS 1428.1-2009 Amd 1 for access. Backed by a 20 year replacement warranty, plus 1 year on parts and labour.

• Wall-hung, 550 x 435 x 225mm, which keeps the floor clear in a small room
• Three tap holes, for a spout with a pair of taps
• 10 litre bowl with no overflow
• Chrome flush-fit waste and white plug in the box
• Optional pedestal or shroud available to cover the pipes
• Caroma states it meets AS 1428.1-2009 Amd 1 for accessible bathrooms
• 20 year replacement warranty, plus 1 year on parts and labour

Check your wall can take a wall-hung basin and ask your plumber about pipe positions. Caroma also offers versions with no tap hole or a single tap hole if you'd prefer a wall mixer or a single basin mixer.

Pair it with a basin tap set and the Caravelle pedestal or shroud.

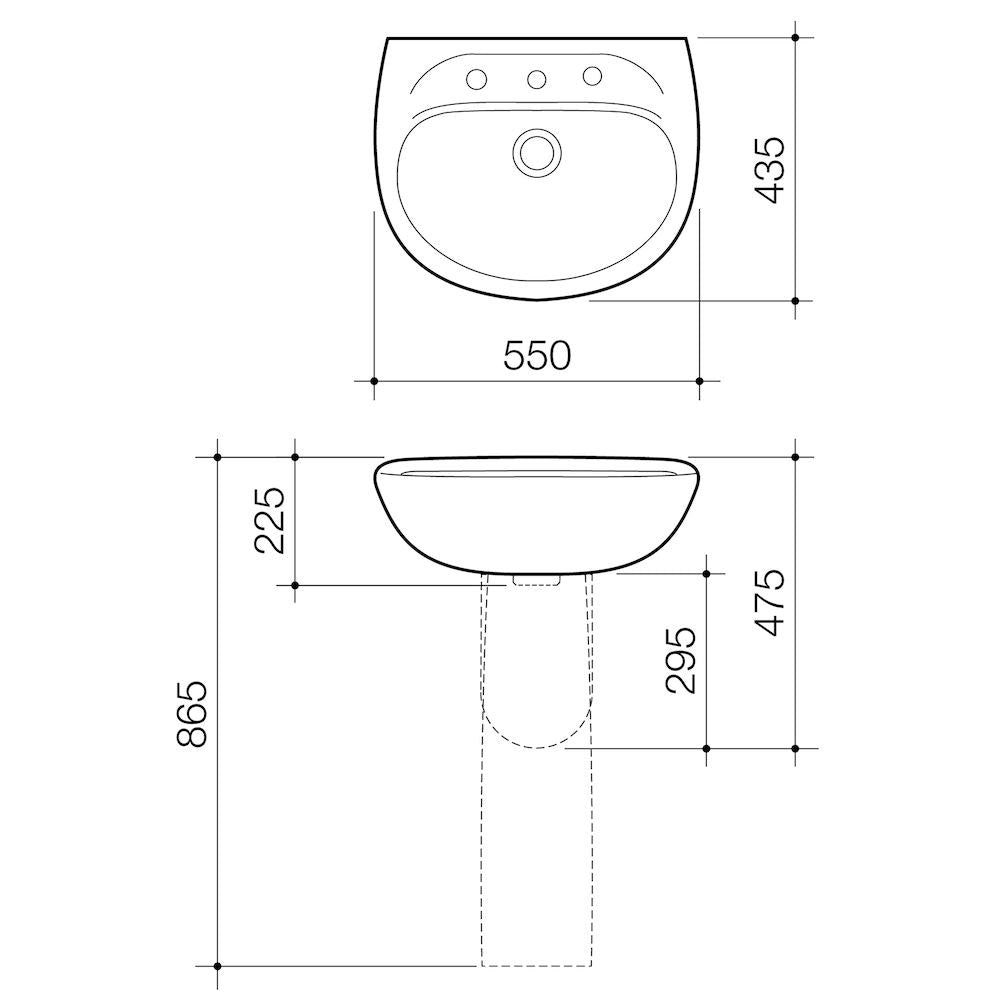

dimensions (W x D x H): 550 x 435 x 225mm
material: Vitreous china
colour: White
tap holes: 3
overflow: No
capacity: 10L
installation: Wall-hung
shape: Round
weight: 15kg
compliance: AS1428.1 2009 Amd1
WELS: N/R
warranty: 20 years replacement; 1 year parts/labour
care: Clean with mild household detergent or warm soapy water and a soft cloth.
country of origin/manufacture: China
tradelink item: 058660

• basin
• white plug
• chrome flush fitting waste
