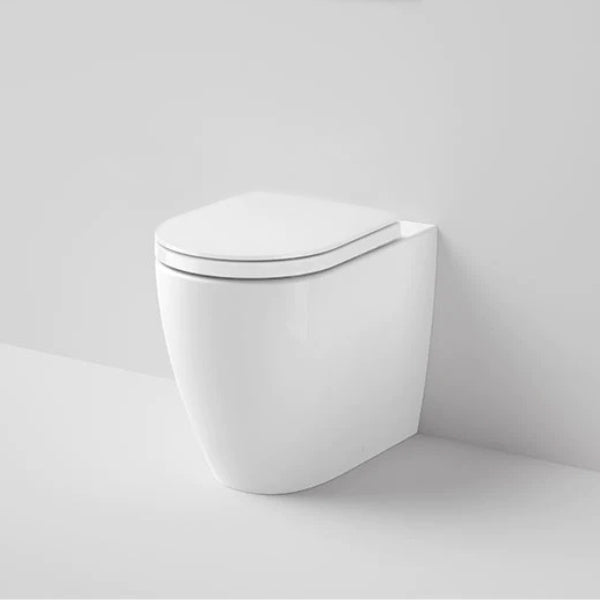

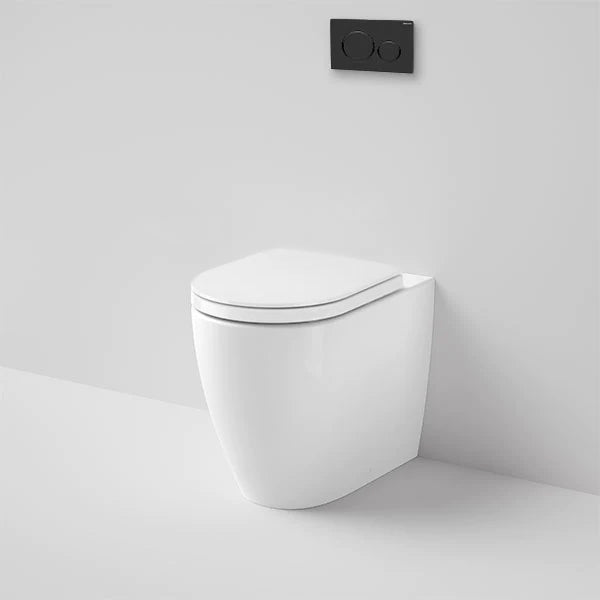

Build Your In-Wall Toilet: Caroma Urbane II Luxe Cleanflush Wall Faced Toilet Pan with Geberit Sigma Cistern Option

Want the cistern out of sight and the floor space back? That's the job here. The Caroma Urbane II Luxe Cleanflush Wall Faced Toilet Pan with Geberit Sigma Cistern Option teams a Caroma pan with European Geberit Sigma in-wall components, so the cistern hides inside the wall. Cleanflush technology clears the bowl with a strong, water-saving flush, and the rimless shape leaves fewer spots for grime to settle. The premium ceramic is smooth and hard-wearing, so a wipe-down does the job. Pan projection is 570mm with a 440mm seat height, sized for everyday use. WELS 4 star rated, dual flush 4.5L/3L. The soft-closing seat finishes it off, quietly.

• Cleanflush rimless bowl combines a powerful flush with GermGard antimicrobial protection, so any build-up is easy to spot and easier to keep clean
• Rimless pan design means fewer hidden gaps for germs and grime, making the bowl quicker to clean and more hygienic

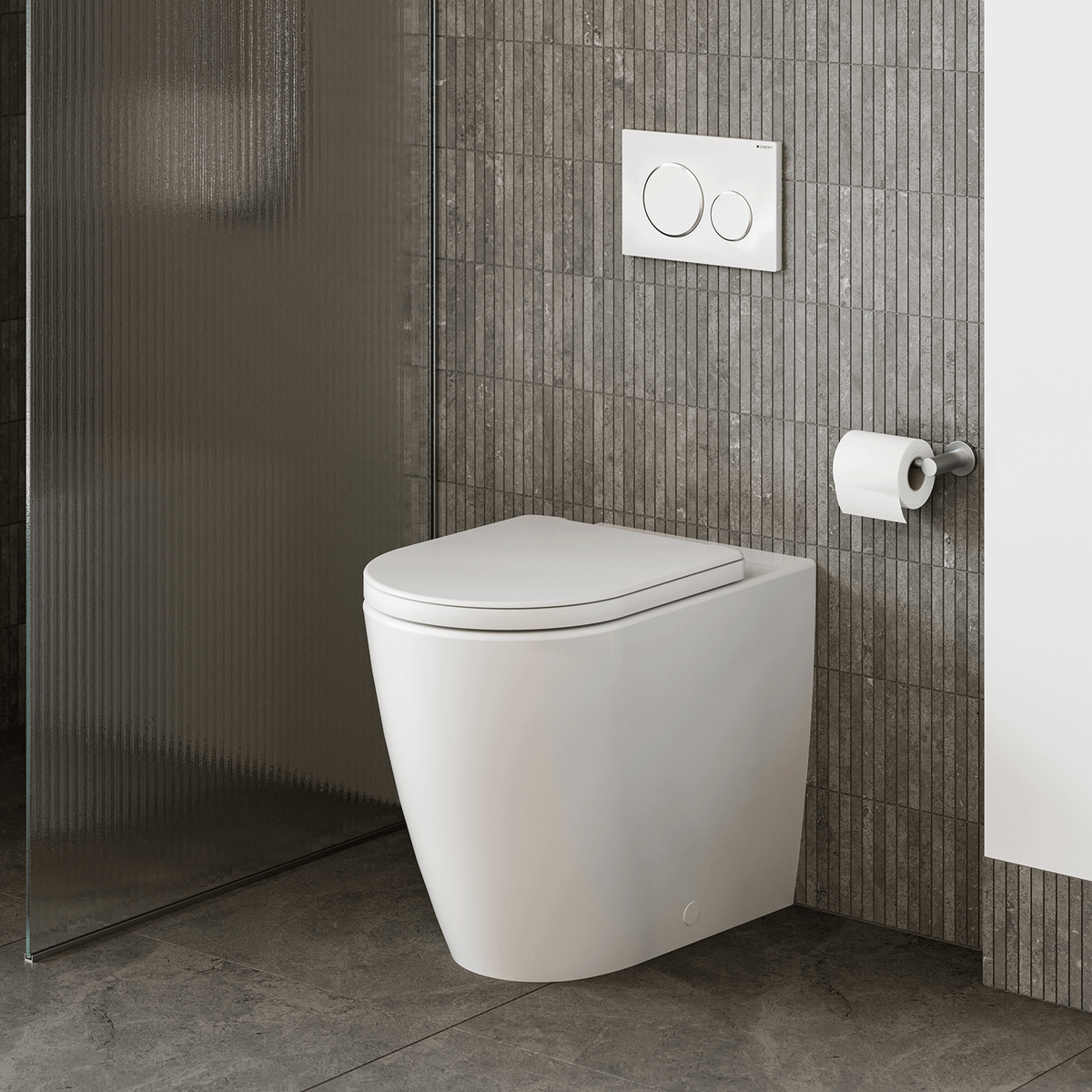

• Concealed in-wall cistern keeps the tank out of sight, giving your bathroom a more open feel and a clean, current look

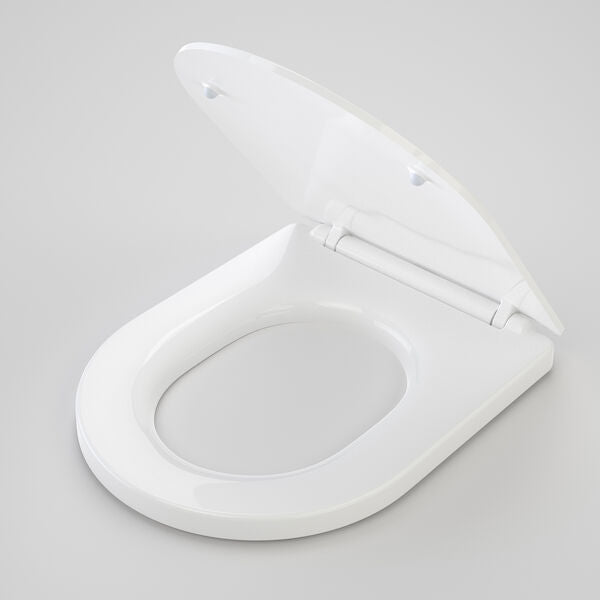

• Soft-closing seat lowers gently every time, so there's no loud bang late at night
• Patented Uni-Orbital connector extends to any position within a 50mm radius, available only on Caroma wall faced toilets, which is handy for tricky plumbing set-outs

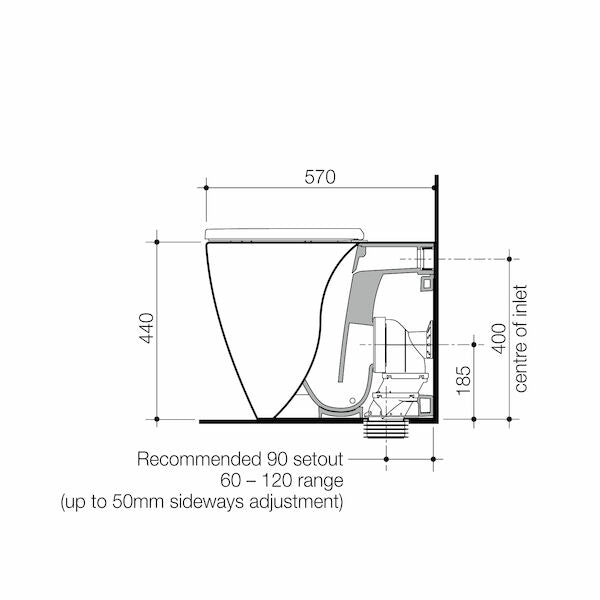

• Pan projection of 570mm and seat height of 440mm for comfortable everyday use
• All Caroma toilet pans, cisterns and components are Watermark certified, so they meet Australian plumbing requirements

Flush buttons are sold separately so you can match your other bathroom fittings: choose from the Geberit Sigma flush plates or the Geberit Sigma flush button range. Worth noting, the standard Caroma seat hinge caps aren't compatible with the Luxe seat, which comes with stainless steel hinge caps.

An in-wall system is best set up by a licensed plumber. Need a hand? Check your rough-in with them before ordering.

Pan - Caroma Liano Cleanflush Easy Height Wall Faced Pan 843245W (4.5/3L)

WELS water efficiency: WELS 4 star rated
WELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)
WELS registration number: L06661
Watermark certification: All Caroma toilet pans, cisterns and components are Watermark certified

Construction material: Vitreous China Pan
Finish/coating: Gloss white ceramic glaze
Overall height: 470mm (pan & seat) 814 - 984mm to cistern top (in wall)
Pan height: 440mm (excluding seat)
Projection from wall: 570mm
Overall width: 350mm (pan) 410mm cistern (in wall)
Trap: Universal S or P trap
Set out: Variable 60-120 using supplied connector; 90mm recommended.
Water inlet location: N/A

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

Caroma products are covered by warranties of up to a Lifetime*

Caroma products are manufactured to the highest standard and in addition to the guarantees provided under the Australian Consumer Law, they offer extended warranty periods from the date of purchase or handover that their products are free from all defects in materials and workmanship, subject to the terms and conditions detailed on their website, for additional peace of mind.

Baths

• Bath shell – 20 Years
• Labour, replacement product or parts – 1 Year

Basins

• Basins – 20 year replacement product; 1 year parts & labour
• Basin Dress Rings – 5 year replacement product

Sinks & Tubs

• Sinks – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Urbane II Coloured Sinks with PVD Coating – 7 year replacement & labour
• Tubs – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Accessories & Spare parts – 1 year replacement product or parts

Showers

• 20 years cover for replacement product or parts only*
• 1 year cover for labour

*Excludes shower sliders, soap dishes, wall fixings, mounting brackets and metal flex hoses – 12 months parts only.

Taps, Outlets & Mixers

• 20 years cover for replacement product or parts only†
• 10 years cover for Tapware Engine* replacement parts only
• 1 year cover for labour, pull down/out hoses, spray heads and ceramic disc spindles

*Tapware Engine includes ceramic disc mixer cartridge, aerator and ultra flex pex hose.
†Excludes plastic jumper valves – 3 months parts only; copper jumper valves – 12 months parts only.

Finishes (Accessories, Showers, Taps, Outlets & Mixers)

• 20 years cover for PVD (Physical Vapour Deposition) product finish
• 20 years cover for Chrome product finish
• 10 years cover for all other product finishes

Toilets

• Toilet suites – 20 year replacement product*; 1 year parts & labour
• Toilet Seats – 1 year replacement product or parts
• Concealed Toilet Buttons – 5 year replacement product; 1 year parts & labour
• Electronic Bidet Seat – 2 year replacement product or parts (excludes consumable parts such as filters)

*Excludes inlet and outlet valve washers – 1 year parts and labour only.

Geberit Cisterns are covered by a 25 Year spare parts warranty and 15 Years on the tank and frames.

Accessibility/maintenance: the dual-flush plate acts as the button and provides the access required for servicing the internal parts of the cistern. For After Sales & Service enquiries you can contact Geberit directly on 1800 GEBERIT for assistance.

Wastes & Traps – 1 Year

Kitchen Accessories – 1 Year

Should any warranty claim be made and attended to by a Caroma authorised Service Agent and, in the opinion of the Service Agent or Caroma, the problem was from faulty installation, use of the products in conjunction with products of another manufacturer, or some other cause other than a manufacturing defect for which Caroma is responsible, Caroma Industries Limited reserves the right to charge a service fee for each service staff attending the premises where products have been installed.

For After Sales & Service enquiries you can contact Caroma directly on 13 14 16 for assistance.

To view the Caroma Warranty Document, click here.
