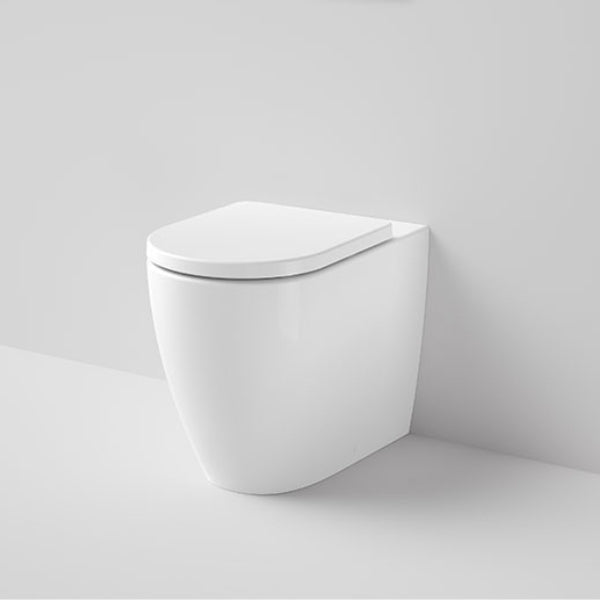

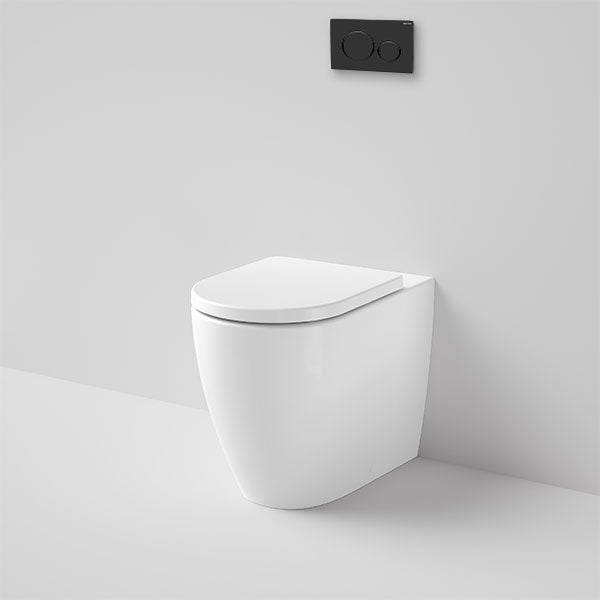

Build Your In-Wall Toilet: Caroma Urbane II Cleanflush Wall Faced Toilet Pan with Geberit Sigma Cistern Option

Building an in-wall setup, or pulling out an older suite and starting fresh? The Caroma Urbane II Cleanflush Wall Faced Toilet Pan pairs with a Geberit Sigma cistern to give you strong, efficient flushing. Cleanflush® rimless technology clears waste well and keeps water use down. No traditional rim means no hidden ledge for grime, so cleaning is quicker and more hygienic. The quality ceramic finish holds up over years of daily use and keeps its clean, modern lines. The wall-faced form sits neatly against the wall for a tidy finish. Installed with compatible Caroma Urbane® II cisterns, it's WELS 4 Star rated at 4.5/3L (3.5L average flush). There's a 20 year warranty on the pan and 5 years on the seat.

• Cleanflush® rimless design clears waste effectively and leaves fewer spots for bacteria to hide, so the bowl is easier to keep clean
• Universal UniTrap® fits both S and P trap installations, which means it works with most existing waste setups
• GermGard® antimicrobial protection helps slow the growth of bacteria and mould on the surface
• Low-profile wall faced form sits close to the wall for a tidy, streamlined finish

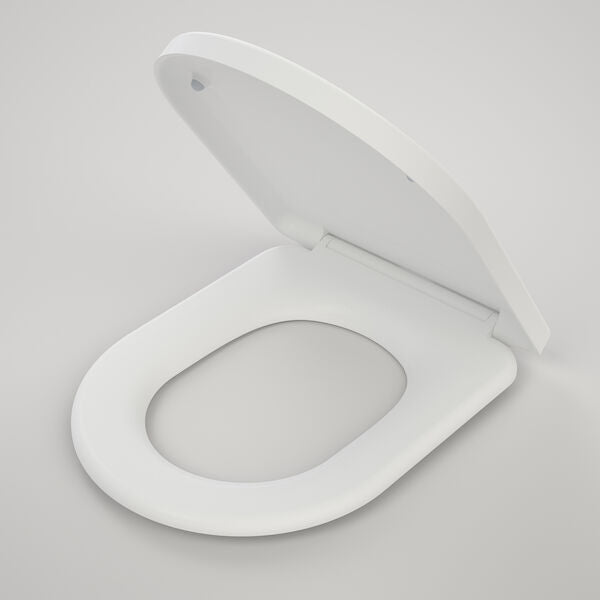

• Soft close seat with quick-release function lifts off for a proper clean, and lowers without the 2am bang
• Patented Uni-Orbital® Connector and D82 fixing bracket included, so installation is more straightforward
• Optional coloured seat hinge caps available to match Caroma Urbane® II tapware finishes

Check your trap type and rough-in before ordering. Need a hand? Ask your plumber to confirm the pan and cistern suit your wall setup.

Team it with the matching Caroma Urbane® II Bathroom Collection to complete the look.

Pan - Caroma Urbane II Cleanflush Wall Faced Pan 843245W (4.5/3L)

WELS water efficiency: WELS 4 star rated
WELS water consumption: Dual flush, 4.5L/3L (3.5L average flush)
WELS registration number: L06661
Watermark certification: All Caroma toilet pans are Watermark certified

Construction material: Vitreous China Pan
Finish/coating: Gloss white ceramic glaze

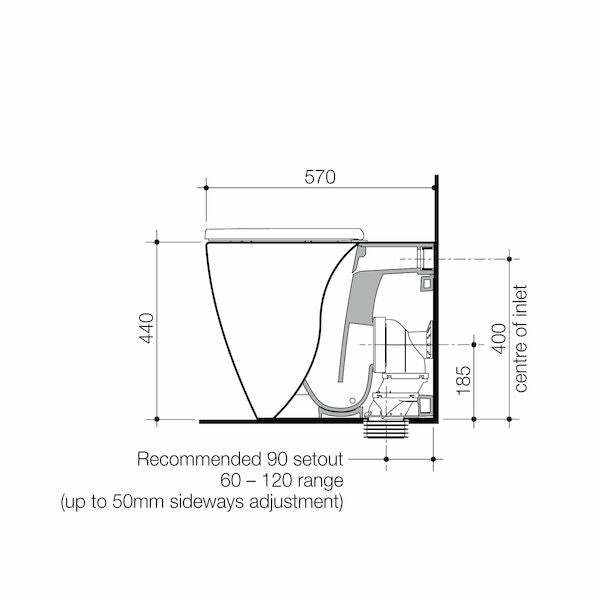

Overall height: 470mm (pan & seat)
Pan height: 440mm (excluding seat)
Projection from wall: 570mm
Overall width: 350mm (pan)
Trap: Universal S or P trap
Set out: Variable 60-120 using supplied connector; 90mm recommended.
Water inlet location: N/A
Warranty: 20 years (Toilet Pan), 5 years (Toilet Seat)

Find out more about WELS and Watermark certification and the important role they play in helping you choose water-efficient and safe products that are manufactured to strict Australian plumbing and building standards.

Caroma products are covered by warranties of up to a Lifetime*

Caroma products are manufactured to the highest standard and in addition to the guarantees provided under the Australian Consumer Law, they offer extended warranty periods from the date of purchase or handover that their products are free from all defects in materials and workmanship, subject to the terms and conditions detailed on their website, for additional peace of mind.

Baths

• Bath shell – 20 Years
• Labour, replacement product or parts – 1 Year

Basins

• Basins – 20 year replacement product; 1 year parts & labour
• Basin Dress Rings – 5 year replacement product

Sinks & Tubs

• Sinks – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Urbane II Coloured Sinks with PVD Coating – 7 year replacement & labour
• Tubs – Lifetime replacement product or parts; 1 year replacement product/parts or labour
• Accessories & Spare parts – 1 year replacement product or parts

Showers

• 20 years cover for replacement product or parts only*
• 1 year cover for labour

*Excludes shower sliders, soap dishes, wall fixings, mounting brackets and metal flex hoses – 12 months parts only.

Taps, Outlets & Mixers

• 20 years cover for replacement product or parts only†
• 10 years cover for Tapware Engine* replacement parts only
• 1 year cover for labour, pull down/out hoses, spray heads and ceramic disc spindles

*Tapware Engine includes ceramic disc mixer cartridge, aerator and ultra flex pex hose.
†Excludes plastic jumper valves – 3 months parts only; copper jumper valves – 12 months parts only.

Finishes (Accessories, Showers, Taps, Outlets & Mixers)

• 20 years cover for PVD (Physical Vapour Deposition) product finish
• 20 years cover for Chrome product finish
• 10 years cover for all other product finishes

Toilets

• Toilet suites – 20 year replacement product*; 1 year parts & labour
• Toilet Seats – 1 year replacement product or parts
• Concealed Toilet Buttons – 5 year replacement product; 1 year parts & labour
• Electronic Bidet Seat – 2 year replacement product or parts (excludes consumable parts such as filters)

*Excludes inlet and outlet valve washers – 1 year parts and labour only.

Geberit Cisterns are covered by a 25 Year spare parts warranty and 15 Years on the tank and frames.

Accessibility/maintenance: the dual-flush plate acts as the button and provides the access required for servicing the internal parts of the cistern. For After Sales & Service enquiries you can contact Geberit directly on 1800 GEBERIT for assistance.

Wastes & Traps – 1 Year

Kitchen Accessories – 1 Year

Should any warranty claim be made and attended to by a Caroma authorised Service Agent and, in the opinion of the Service Agent or Caroma, the problem was from faulty installation, use of the products in conjunction with products of another manufacturer, or some other cause other than a manufacturing defect for which Caroma is responsible, Caroma Industries Limited reserves the right to charge a service fee for each service staff attending the premises where products have been installed.

For After Sales & Service enquiries you can contact Caroma directly on 13 14 16 for assistance.

To view the Caroma Warranty Document, click here.
