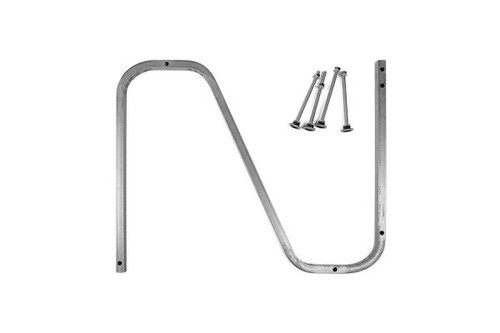

Ezi Frame Bath Base Support

Product Code: 128830

The EZI Frame is a structural on site fitting for specific baths and spa baths that eliminates the need for further support.

The galvanised steel support frame contains adjustable legs that can be fitted under the bath on site.

The benefits of using the EZI Frame is that it eliminates the use of on-site scrap, timber, bricks or foam under the bath which will void the Decina warranty and not structurally support the bath when filled with water and bathers.

Decina recommends only two support methods; the use of a full mortar bed or an EZI Frame steel support frame.

The EZI Frame can be pre-fitted or post-fitted and is glued to the bottom of the bath with construction adhesive. Once fitted the legs are simply screwed down to touch the sub floor.

For shower over bath installation applications the EZI Frame should be pre-fitted by Decina to ensure the frame has adequate base support.

Full installation instructions are provided with all EZI Frames.

Features and benefits

Ezi Frame (Small) for rectangle end waste 1500mm baths
Ezi Frame (Large) for rectangle end waste 1600, 1700, 1800 (mm) baths
Ezi Frame centre waste baths
Low cost and easy to install
Read more

Price:

$139.00

Showing pricing for Store

Change Location
Product Information

Product Information

The EZI Frame is a structural on site fitting for specific baths and spa baths that eliminates the need for further support.

The galvanised steel support frame contains adjustable legs that can be fitted under the bath on site.

The benefits of using the EZI Frame is that it eliminates the use of on-site scrap, timber, bricks or foam under the bath which will void the Decina warranty and not structurally support the bath when filled with water and bathers.

Decina recommends only two support methods; the use of a full mortar bed or an EZI Frame steel support frame.

The EZI Frame can be pre-fitted or post-fitted and is glued to the bottom of the bath with construction adhesive. Once fitted the legs are simply screwed down to touch the sub floor.

For shower over bath installation applications the EZI Frame should be pre-fitted by Decina to ensure the frame has adequate base support.

Full installation instructions are provided with all EZI Frames.

Features and benefits

Ezi Frame (Small) for rectangle end waste 1500mm baths
Ezi Frame (Large) for rectangle end waste 1600, 1700, 1800 (mm) baths
Ezi Frame centre waste baths
Low cost and easy to install
Product Specification
  • Colour

    Stainless Steel

  • Material

    Galvanised steel

  • Range

    Ezi

  • Waste Position

    Centre

  • Warranty

    • 15 year (refer to decina.com.au)

  • Inclusions

    1 off EZI Frame
    • 4 off threaded rod
    • 4 off plastic foot
    • 12 off nuts
    • 1 off installation instructions

  • Weight

    2kg

  • Accessory Type

    Bath Base Support

  • Assisted Living Suitability

    No
